| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $11.14 | $10.92 | $10.57 | $10.12 | Contact US |
For Toshiba TA8184 Audio Tone Control Board HiFi Preamp Tone Board Support Electronic Volume Control
$27.84
HiFi 5-Segment Ultra-low Noise Audio Tuning Board Preamplifier BA3822 Equalizer +/-11dB Adjustment
$35.22
2.1 Audio System Bluetooth Digital Power Amplifier Board TPA3116 2x50W + 100W Subwoofer 8-26VDC Input
$25.20

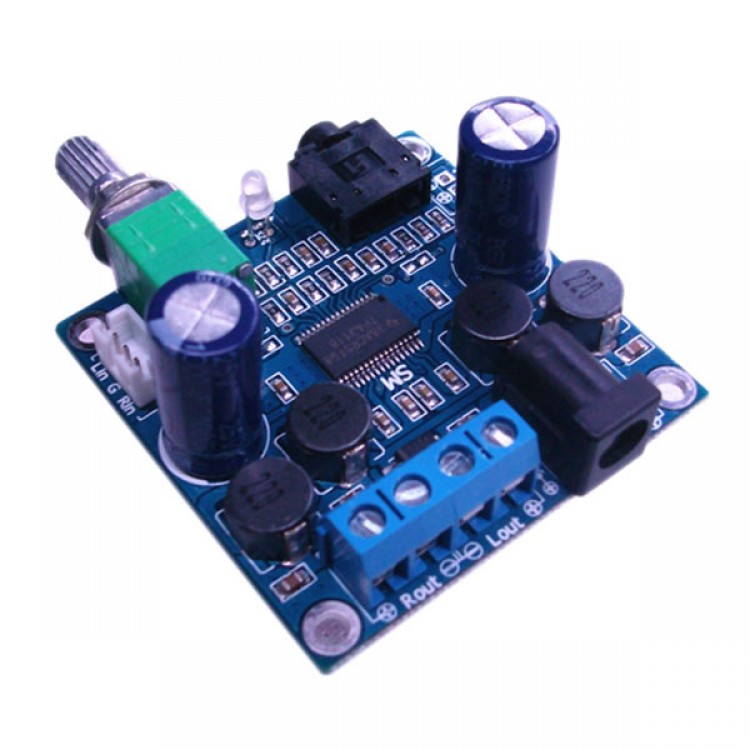

TPA3118 Digital Audio Amplifier 12V High Power with Switches Finshied Board Support Parallel Single Channel
Descriptions:
TPA3118 power amplifier chip, possess a good function.
6-25V DC, max dual channel output 25W+25W, support PBTL 50W single channel output.
Specifications:
- practical function, small size (50x50mm), working voltage ( 6-25V ), large output power (larger than 25W+25W dual channel ), low fever, 90% high frequency, good tone quality.
- Silicon Manufacturer:Texas Instruments
- Silicon Core Number:TPA3118D2
- Kit Application Type:Audio
- Application Sub Type:Class D Audio Power Amplifier
- Kit Contents:Eval Module TPA3118D2
- Features:Filter-Free Operation, SpeakerGuard Speaker Protection Circuitry, 4Selectable, Fixed Gain Settings
- SVHC:No SVHC (16-Dec-2013)
Features:
- Size:50 X 50 MM
- Working voltage range: 6 - 25V
- Frequency:20Hz - 16KHz
- Speaker impedance:4 - 8Ohm
- Max output power: 25W + 25W dual channel ( optional: default dual )
