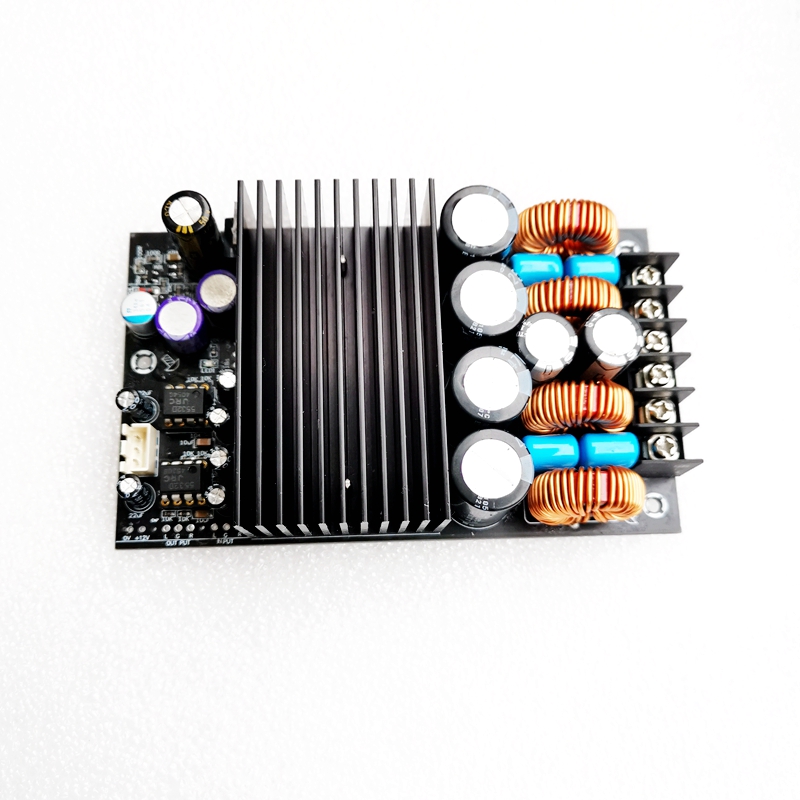

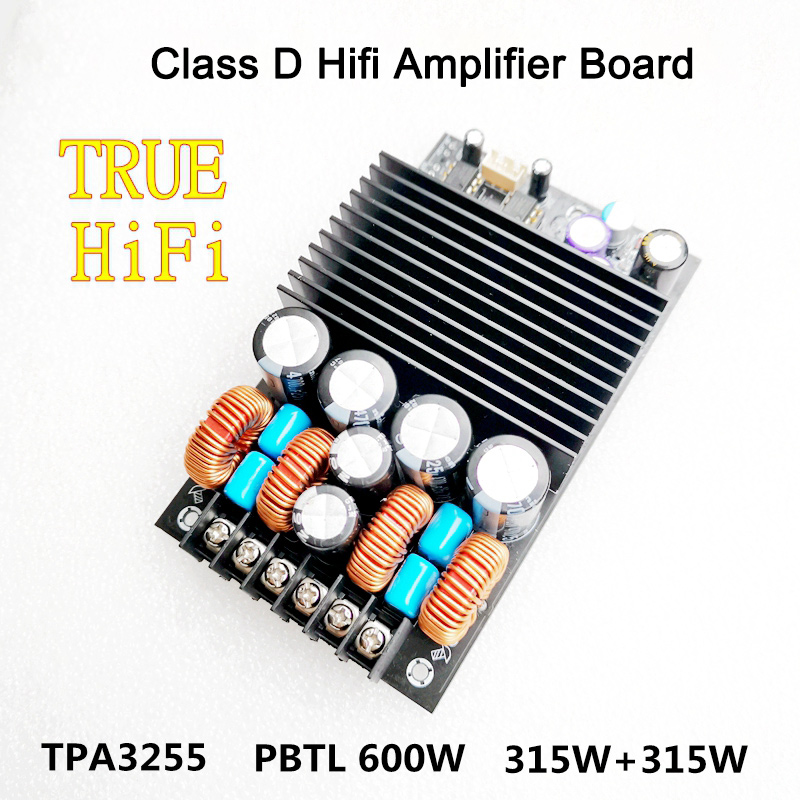

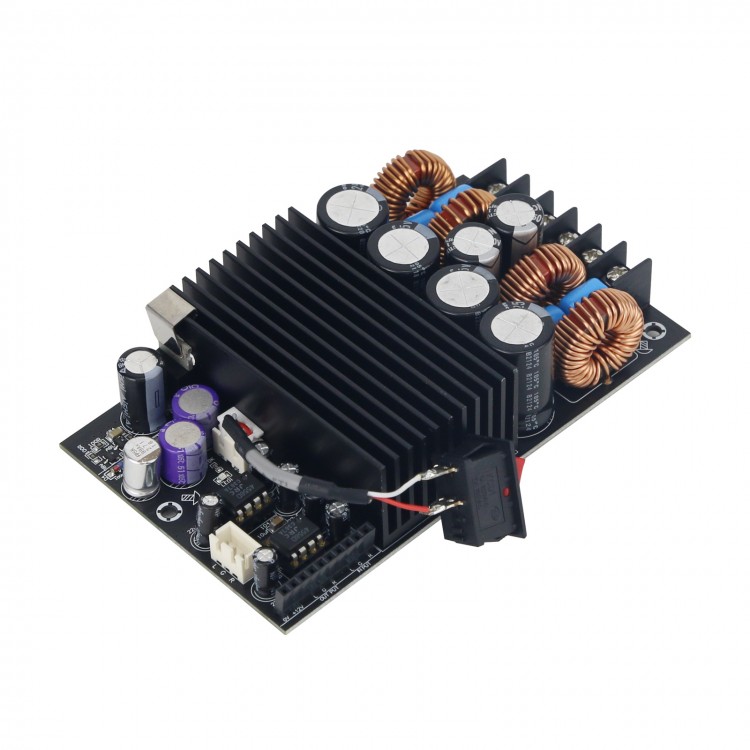

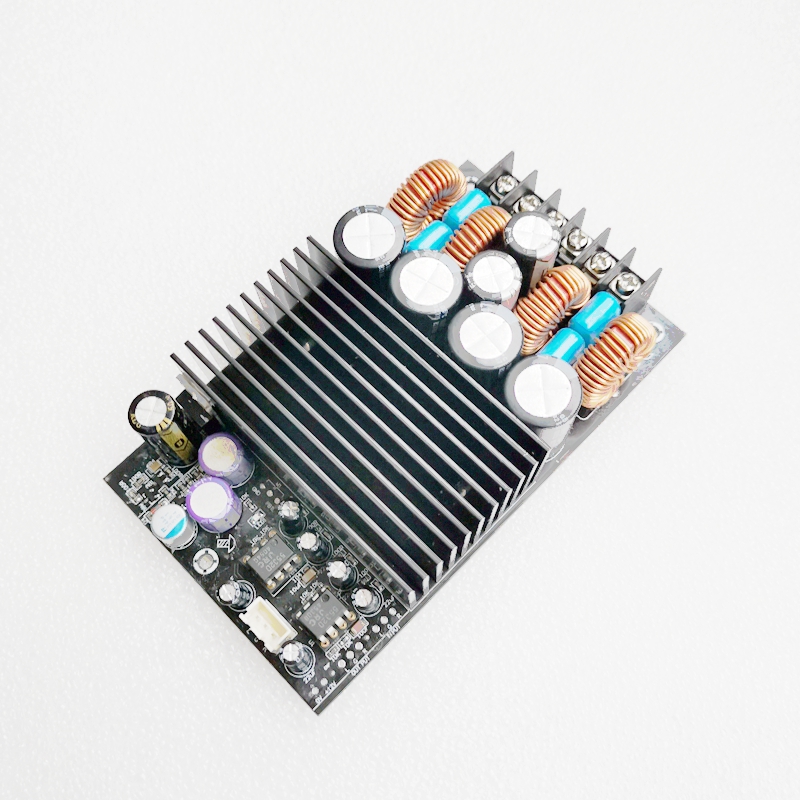

TPA3255 315W+315W Class D Amplifier Board Hifi Power Amplifier Board Stereo Power Amp Board
Description:
It completely improves the common problem of high voltage protection. Thus it can work with 50V. More audiophile components are used. The auxiliary power supply uses a class A linear power supply, making it more dynamic and significantly improving the sound quality! It can drive 2-16 ohm speakers!
The TPA3255 is a high-performance Class D power amplifier chip. It has a circuit with Class D efficiency and is capable of delivering truly high-end sound quality. It features an advanced integrated feedback design and proprietary high-speed gate driver error correction (Ultra HD for PurePath). This technology allows the component to maintain ultra-low distortion over the entire audio frequency band while exhibiting sound quality. Operating in AD mode, the chip drives up to two 315W/4R loads and two 150W (unclipped power)/8R loads at 1.5% THD, and features a 2 VRMS analog input interface that allows seamless interfacing with high-performance DACs such as the PCM5242 for TI.
In addition to excellent audio performance, the TPA3255 combines high power efficiency with ultra-low power stage idle loss (less than 2.5W). This can be achieved with 85mR MOSFETs and an optimized gate driver scheme. Compared to traditional discrete implementations, this scheme significantly reduces idle losses.
High Quality Components:
- Original solid state capacitor for FUJIPOLY
- Audio special inductor
- Replaceable op amp
- Original power filter capacitor for Nichicon
- Original professional audio bypass capacitor for Fairchild
Specifications:
- Power amplifier IC: TPA3255 chip
- Input mode: 3.5MM stereo wired interface (3P)
- Work efficiency: > 90%
- Output power: 315W/4Ω, distortion 1.5%; 185W/8Ω, distortion 1.5%; 260W/4Ω, distortion 1%; 150W/8Ω, 1% distortion
- Frequency response: 20Hz to 20KHz
- Dynamic range: > 100dB
- SNR: > 111dB

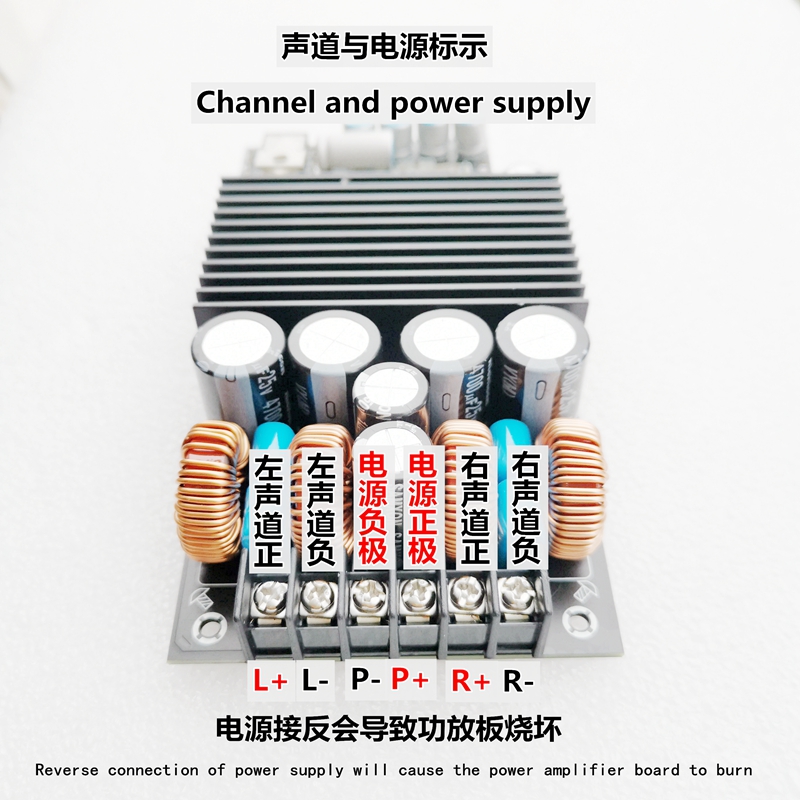

- Power supply: DC19 to DC48V [recommended current above 5A]

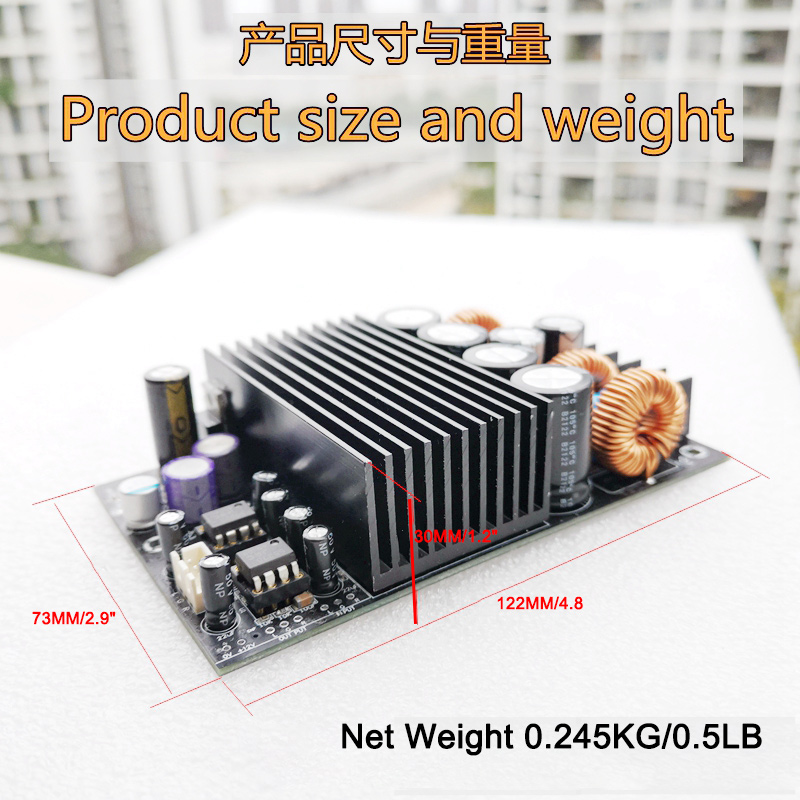

- Dimensions: 122 x 73 x 30MM/4.8 x 2.9 x 1.2"
- Net weight: 0.245KG/0.5LB
Package Included:
- 1 x Amplifier Board
Note:
- The board is designed without Bluetooth decoding function.
