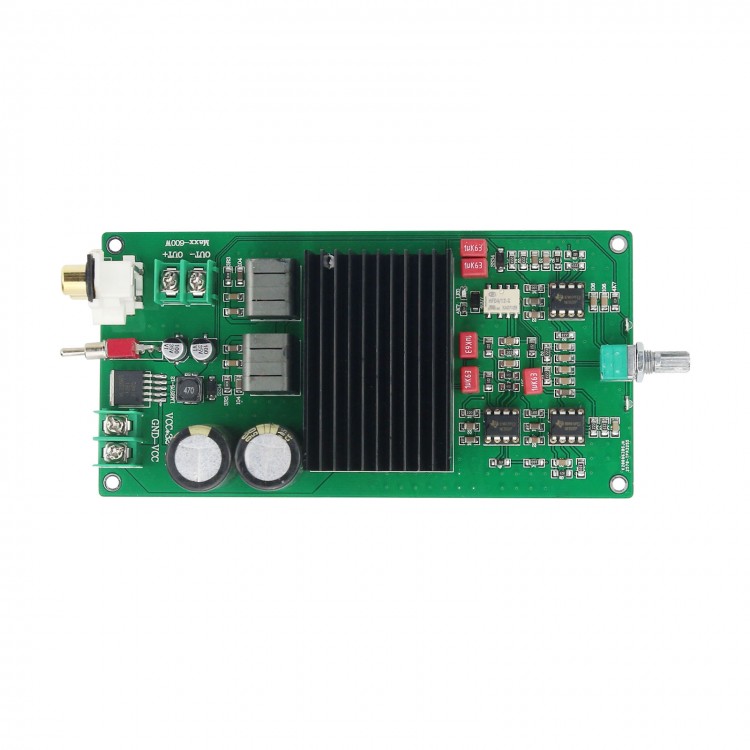

TPA3255 600W Mono Power Amplifier Board HiFi Power Amp Board for Full Range Speakers & Subwoofers

TPA3255 600W Mono Power Amplifier Board HiFi Power Amp Board for Full Range Speakers & Subwoofers

Description:
TPA3255 is a high-performance class D power amplifier. It features class D efficiency and can bring true high-end sound quality. The device boasts advanced integrated feedback design and proprietary high-speed gate driver error correction function (UHD for PurePath). This technology allows the device to maintain ultra-low distortion throughout audio frequency band while exhibiting wonderful sound quality.

Features:
- Original TPA3255 chip is used
- 1200UF/50V main filter electrolytic capacitors ensure strong continuous power support
- Professional high-current inductors ensure clean and powerful sound
- Onboard subwoofer/full frequency switch makes it easy to use

Main Parameters:
- Working method: Class D
- Working voltage: DC30V-42V (suggestion: not over 38V)
- Bass cutoff frequency: 95HZ
- Total output power: 600W/2Ω when THD+N is 1%
- Dimensions: 150 x 75 x 35mm/5.9 x 3 x 1.4"
- Net weight: 0.2KG/0.4LB

Package Included:
- 1 x Amplifier Board
