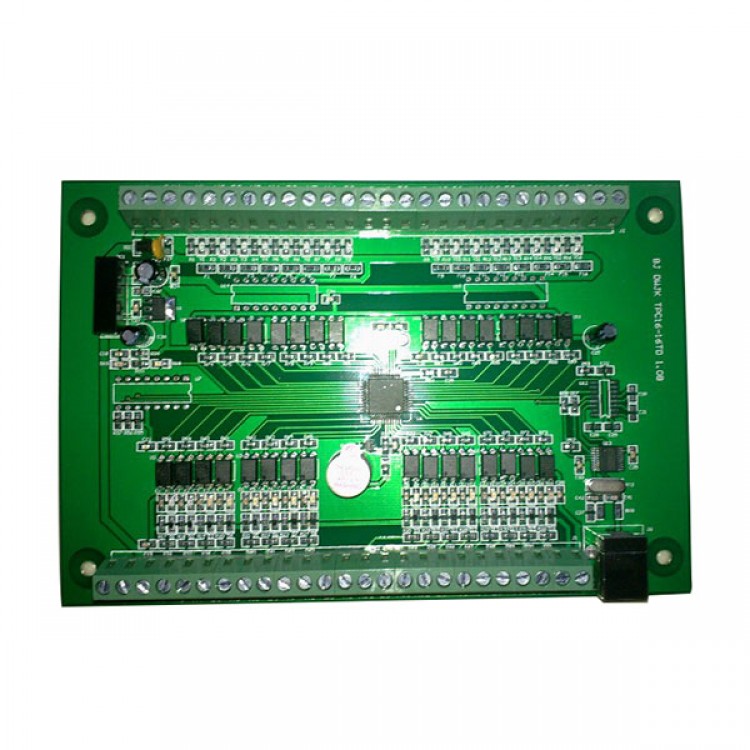

TPC16-16 Table Setting Programmable Controller Cylinder Stepper Motor Mixed Control

TPC16-16 Table Setting Programmable Controller Cylinder Stepper Motor Mixed Control

Parameters:
- Input output channel: TPC16-16TDB
- Photoelectric isolation: all input and output photoelectric isolation, internal power electromagnetism
 isolation
- Power supply: DC 24V/ 5A
- Input way: NPC type Transistor open collector output
- Output voltage: connected load case, output effective: close to 0V; the output is invalid: 24V
- Output current: output current per 300mA
- Input voltage: the switch quantity signal within the range of 0-24V
- Input control: low level of effective or effective for closed switch
- Set the number of rows: function set the number of rows equal to or more than 60 rows
- Download interface: USB interface
- Size: 170mmX115mm

Main features:
- table settings, without programming, everyone can use.
- the operation is convenient, simple and practical, and is easy to popularize.
- the preparation of sample functions provide users with services, supply in reference, learning or modify, debug.
- the installation is convenient, with mounting hole and the guide rail is fixed in two ways.
- various types of optional multi switch quantity input, output control function.
- has the function of setting the timing and flexible program control.
- with a variety of input switching control and switch quantity sensor control functions.
- with the clock control function (optional clock module).
- with the output pulse stepper motor control function.
- count function, with the input signal and the procedures for the.
- with input and program control to stop all of the output function.
- with optional input switch control pause function.
- with optional input switch control step function
- the USB interface to download data, no need to install a driver.
