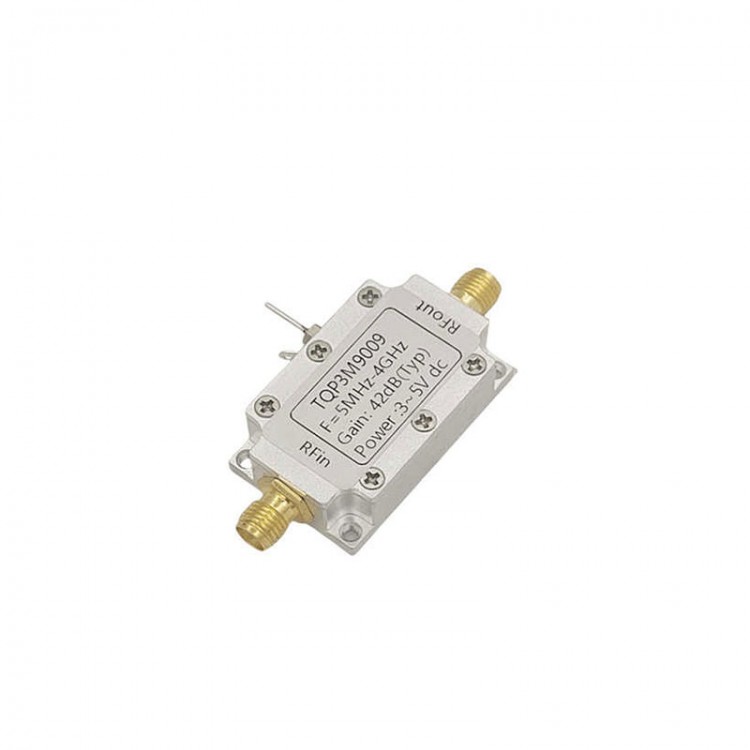

TQP3M9009 5MHz-4GHz Low Noise Amplifier LNA Amplifier RF Module w/ 42DB Gain (without Type-C Board)

TQP3M9009 5MHz-4GHz Low Noise Amplifier LNA Amplifier RF Module w/ 42DB Gain (without Type-C Board)

Attention:
1.The input terminal (RF in) and the output terminal (RF out) of the module must be connected first. And then connect the module to a DC power supply.
2. Be sure to connect the positive and negative electrodes correctly when the module is powered by a DC power supply. Reverse connection is not allowed because the module will be damaged.

Description:
The 5MHz-4GHz low noise amplifier module features high flatness. It can be powered by DC 5V. There is an optional version supporting 5V type-c mobile phone charger, computer USB port, and 5V USB socket of your instruments.

Printed with pine resin, the text on the label will not be worn off for a long time.

Application:
* The LNA can be used in general frequency bands such as VHF, UHF, Beidou, positioning, navigation and video transmission. It can also be used for front-end drivers.
* Connect the input signal and the output load before connecting a power supply.

Specifications:
* Bandwidth: 5MHz-4GHz
* Power supply: 5V/220mA
* NF: 1.3dB (typical)
* Maximum input power: ≤-15dBm
* Maximum output power: 160mW (22dBm/Typ.)
* Input and output VSWR: ≤2.5dB
* Gain: 42dB/Typ. (Refer to the curve below)
* Input and output impedance: 50Ω
* Housing: CNC precision machining
* Connector type: SMA female

Instructions for Use:
* RF in: Signal input
* RF out: Signal output
* GND: Negative terminal of DC power supply
* DC: Positive terminal of DC power supply

Package Included:
* 1 x RF Amplifier

Packaging Details:
* Weight: 0.15kg
