TQTT X310 China-Made SDR Platform with GPSDO Fully Compatible with SDR Platform for USRP X310

TQTT X310 China-Made SDR Platform with GPSDO Fully Compatible with SDR Platform for USRP X310

Description:
It is compatible with X310 for USRP. It has two UBX-160 RF daughter-boards and a GPSDO module.

All its performance can be directly referenced to the official X310. Customers who have used X310 can directly place an order to replace the official version. Novice users who are not sure whether TQTT X310 can meet their requirements can search for the official version of X310 to see the performance and introduction.

TQTT X310 is fully compatible with X310 for USRP from interface to structure, from software to hardware, from host computer program to clock and logic. We've made a lot of improvements on the clock and power supply on a fully compatible basis.

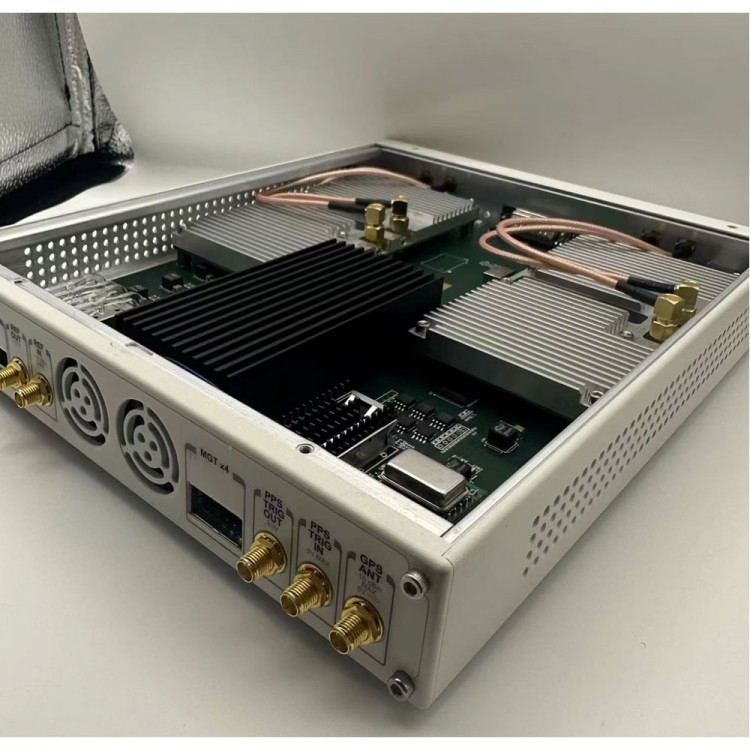

The TQTT X310 consists of a resource-rich user-programmable Kintex-7 FPGA with a selection of high-speed interfaces (PCIe, 10 Gigabit and Gigabit) and two built-in UBX-160 daughter-boards. The bandwidth of the RF daughter boards is up to 160MHz. XC7K410T FPGA provides high-speed connectivity between all major components including RF front-ends, host interfaces, and DDR3 memory. In addition, TQTT X310 adopts an open-source cross-platform UHD driver, which has a large number of development frameworks, supporting RFNoC development frameworks and open source projects.

Main Functions:
1. Built-in two RF daughter-boards can be replaced with other official daughter-boards.
    1.1. Supports up to 160MHz;
    1.2. Supports frequency range of 10M~6GHz;
2. Large Kintex-7 XC7K410T provides high-performance digital signal processing capabilities;
3. A variety of high-speed interfaces;
4. A variety of frameworks supported by UHD:
     4.1. For GNU Radio
     4.2. RFNoc FPGA development framework;
     4.3. C++/Python API;
5. Flexible and stable clock processing structure; part of the clock circuit is placed on the bottom layer of the board due to electromagnetic interference and thermal effects;
6. Compact and sturdy shape makes it very convenient for desktop or rack installation and use;
7. Standard configuration:
    * TQTT X310 processing board;
    * UBX-160 RF Daughter-board x2 (the boards have been installed before delivery)
    * Gigabit Ethernet cable;
    * 10 Gigabit to Gigabit adapter;
    * Power adapter;
    * USB2.0 JTAG cable;
    * 4pcs RF coaxial cables with SMA connector;
    * RF310 aluminum alloy matte shockproof shell;
8. Contains two daughter-boards:
     * Bandwidth: 160MHz. RF range 10MHz-6GHz: UBX-160.

Specifications:
1. Frequency coverage: 10MHz-6GHz;
2. Output power (3G typical power with UBX-160 daughter-board): 12dBm;
3. ADC sampling rate (maximum): 200MS/s; ADC resolution: 14bits;
4. DAC sampling rate: 800MS/s; DAC resolution: 16bits;
5. Supports 10Gb full-duplex 10 Gigabit network port;
6. Supports 400Gb QSF28 interface;
7. Supports 1Gb full-duplex Gigabit network port;
8. Supports 10Gbx2 full-duplex 10 Gigabit network port;
9. Configurable sampling rate;
10. Built-in GPSDO;
11. Supports related operations with OctoClock and OctoClock-G;
12. DC voltage input: 12V (actually, it supports 9-15V);
13. Power consumption (2pcs UBX-160): 36W;
14. Overall dimensions: ≤ 280mm x 210mm x 30mm/11" x 8.3" x 1.2";
15. Weight: ≤0.45kg/1lb.

Package Included:
* 1 x Set of SDR Platform

Packaging Details:
* G.W.: 1kg
