TR500 Tank Chassis Robot Car Chassis Rubber Track All-Terrain Chassis No Control System Power Supply
Features:
- TR500 carbon steel material rubber track damping tank
- Support customization, support ROS, all-terrain cross-country obstacle avoidance
- Suitable for all terrain, support ROS, support remote control of airplane model
- Large load capacity 50KG, off-road obstacle avoidance, suitable for mobile shooting
Product Specifications:

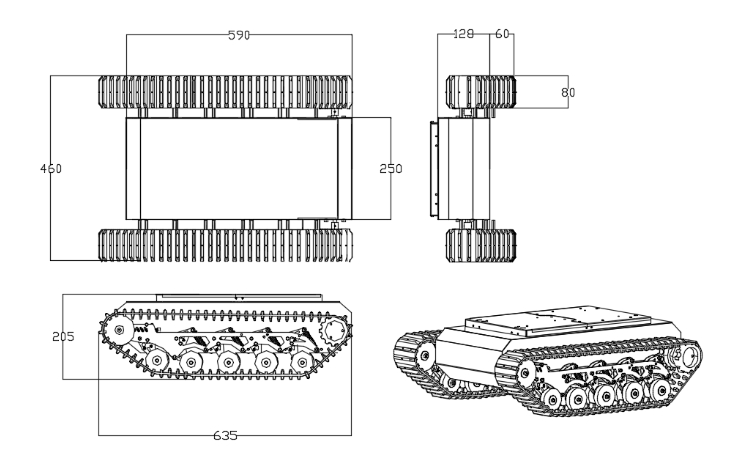

- Dimensions: 635*460*205MM
- Tank weight: about 15.8KG
- Tank motor: DC brush motor
- Rated power: optional (default configuration 120W*2)
- Rated voltage: default 24V (12V/24V optional)
- Rated current: starting current is 10A, running current is about 5A
- Running speed: 0-1M/S (The running speed depends on the motor speed and voltage)
- Maximum climbing: 40°
- Maximum obstacle crossing: 130MM
- Track width: 80MM
- Body material: 1.5MM steel
- Surface treatment: electrostatic paint
- Track material: rubber track with built-in tension layer
- Shock absorption design: 10 groups of independent suspension shock absorbers
- Maximum load: 50KG default configuration (according to the voltage, speed and torque of the motor)
DC Brush Motor:
- Rated voltage: 24V
- No-load current: 1.2A
- Rated torque: 6-8NM
- Rated power: 120W
- Rated speed: 210rpm
- Load current: ≤5
Package Included:
- 1 x TR500 Tank Chassis
- 2 x DC Brush Motors (Left and Right)
Note:
- It has been assembled and debugged before delivery.
- Control system and power supply are not included.

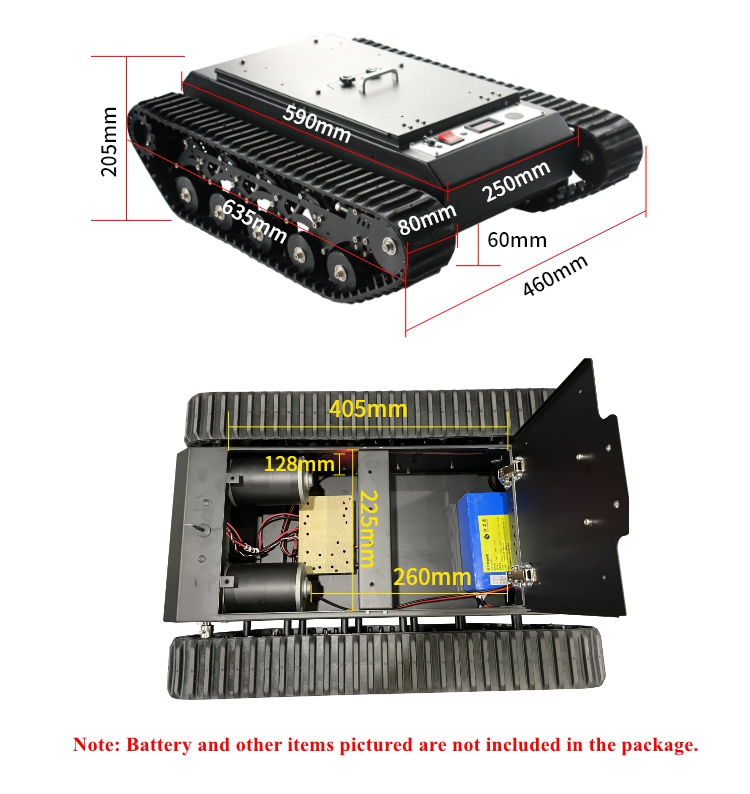

- Battery and other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding! 24V 10Ah lithium battery is recommended.
