TR500 Tracked Robot Chassis Tank Chassis Assembled Shock Absorption Load 50KG with Control Kit

TR500 Tracked Robot Chassis Tank Chassis Assembled Shock Absorption Load 50KG with Control Kit

Version Introduction:
- This version comes with control kit.
- It is assembled and tested before delivery.

Attention:
- The following is the default motor model of this product. You can also configure corresponding motor according to your specific requirements. We have DC brushless motor, motor with mechanical holding brake, incremental encoder DC deceleration motor, Hall sensor planetary motor, etc. on sales, which are suitable for different requirements and application scenarios.

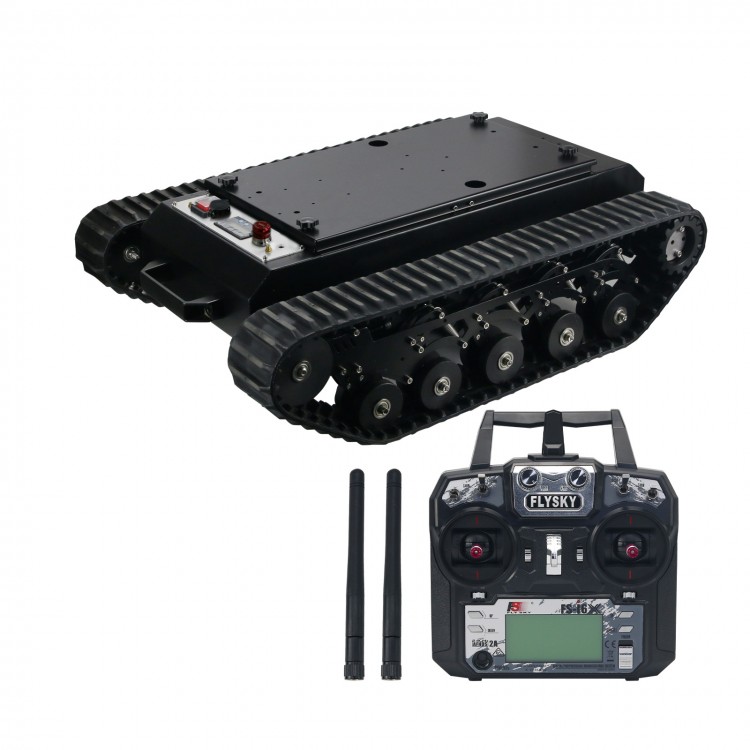

- Version with Control System: The default control system is 2.4GHz wireless remote control system, which is equipped with six channel aviation model remote control by default, and the control distance is 400m + measured in the open area;
- According to your needs, you can configure an 8-channel (or more channels such as 10 channels) remote control, and a controller with a longer control distance; accept functional customization development, specific function requirements, please contact customer service.
- Other control systems include ROS lidar self built map navigation form system, raspberry pie, industrial computer vision recognition system, NVIDIA Jetson nano control system, etc. at the same time, customized development can be carried out according to your project requirements. For project negotiation, please contact our customer service.
- Control system is reserved with I/O for secondary development.

Features:

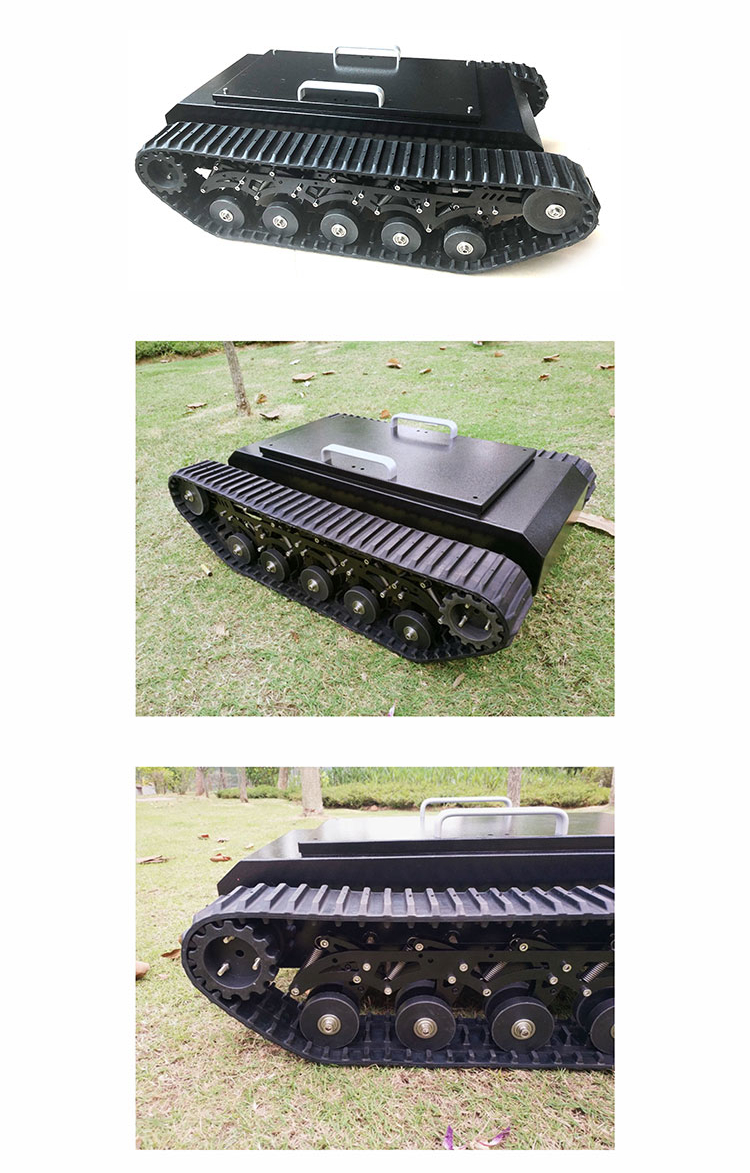

- TR500 carbon steel material, rubber track shock absorption tank
- Chassis load capacity 50kg, off-road obstacle avoidance, mobile shooting
- Assembled and tested before delivery
- Ready to use

Product Parameters:
- Product Name: TR500 heavy-duty tracked tank chassis

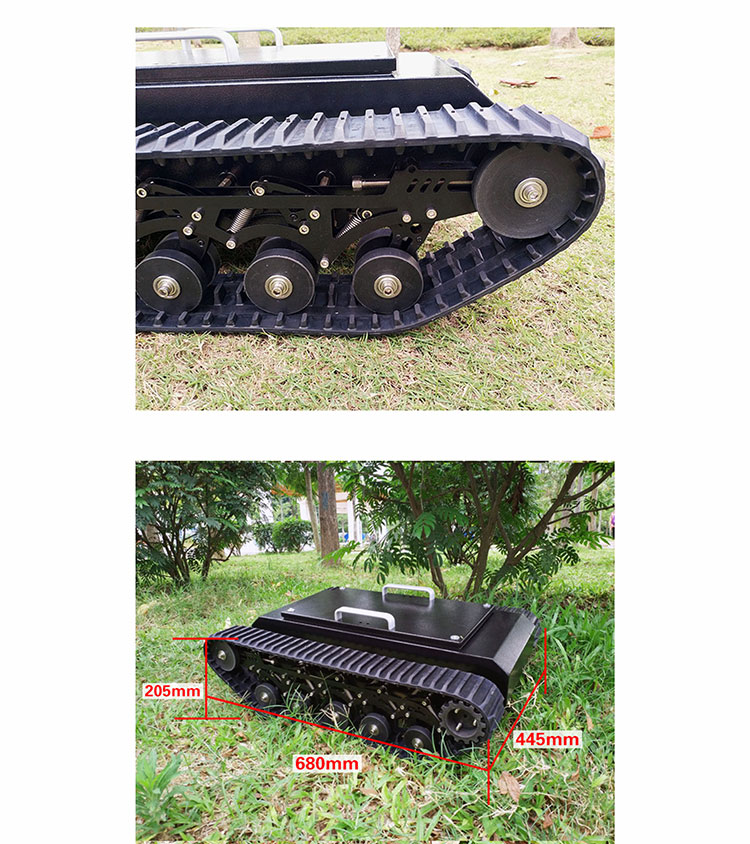

- Dimensions: 680*445*205mm
- Inner Space Size: 380*250*125mm
- Tank Net Weight: about 15.8KG
- Running Speed: 0-1M/S (The running speed is determined by motor speed and voltage)
- Tank Motor: DC brush motor
- Rated Power: optional (default configuration 120W*2)
- Rated Voltage: 24V default voltage (12V/24V voltage optional)
- Rated Current: starting current is 10A, running current is about 5A)
- Track Width: 80MM
- Track Material: rubber track, built-in tension layer
- Body Material Thickness: 1.5mm
- Surface Treatment: static paint
- Maximum Climbing: 40°
- Maximum Load: 50KG default configuration (depending on motor voltage, speed, torque)
- Durance Time: 60 minutes default setting
- Maximum Obstacle Crossing: 130MM
- Damping Design: 10 sets of independent suspension damping parts

Package Included:
- 1 x Set of Chassis with Control Kit

Note:
-It is assembled and has been tested before delivery.
-Not include battery.

Motor Parameters:
- Item Name: Brushed DC Motor
- Rated Voltage: 24V
- Rated Power: 120W
- Rated Current: 1.2A
- Rated Speed: 210rpm
- Rated Torque: 6-8NM
