Transimpedance Amplifier High-speed IV-AMP1615L for 1M Bandwidth of Signal Detection APD Sensor

Transimpedance Amplifier High-speed IV-AMP1615L for 1M Bandwidth of Signal Detection APD Sensor

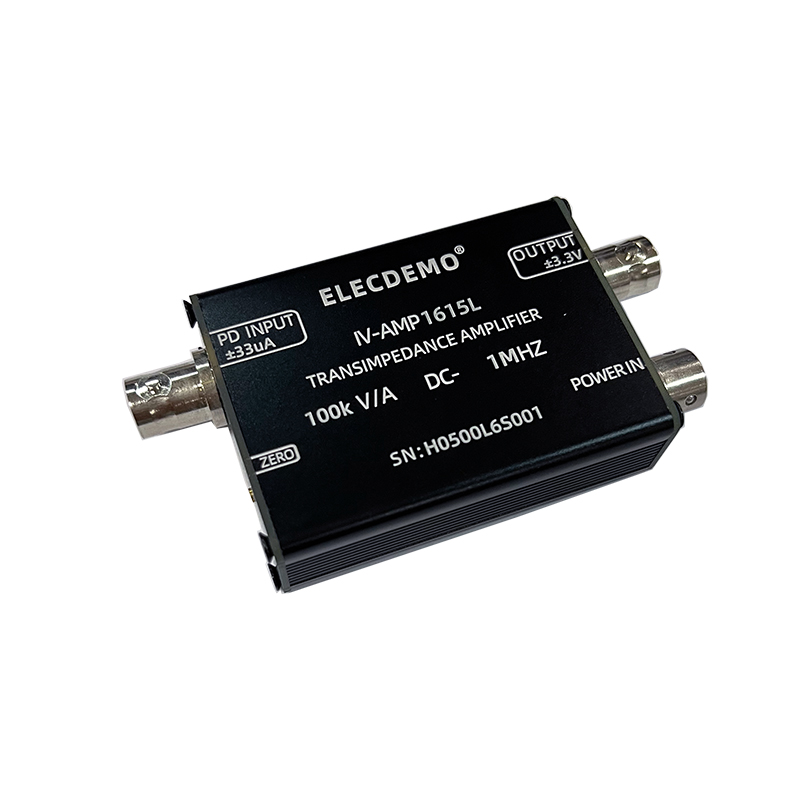

Description:
- IV-AMP1615L is a bandwidth transimpedance amplifier with a gain coefficient of 100KV/A and a gain bandwidth greater than 1MHZ. It has the characteristics of high bandwidth and high magnification. The minimum current resolution of the transimpedance amplifier is 10 nA, which is compatible with and adaptable to most high-speed photodiode PD. The low ripple precision power supply matched with the amplifier ensures the excellent noise performance of the amplifier within 1MHz bandwidth. It is usually used in weak signal detection, pulse light conversion, laser ranging, high-speed photoelectric detection and fluorescent material detection.

Parameter:
- Model: IV-AMP1615L
- Type: Transimpedance amplifier
- Power supply: Distribution of low ripple precision power supply
- Input signal form: Single terminal current
- Input signal interface: BNC female
- Input current range: ±33uA
- Minimum resolution of input current: 10nA
- Gain coefficient: 100k V/A
- Linearity: 1%
- Gain bandwidth: DC-1MHz at HI-Z
- Rise time: 0.3uS
- Output impedance: low resistance
- Output voltage range: ±3.3V (Hi-Z)
- Output current: ±1mA (MAX)
- Bias voltage regulation range: ±3V
- Weight: 68g
- Module protection: None, no reverse connection protection, no limit current protection

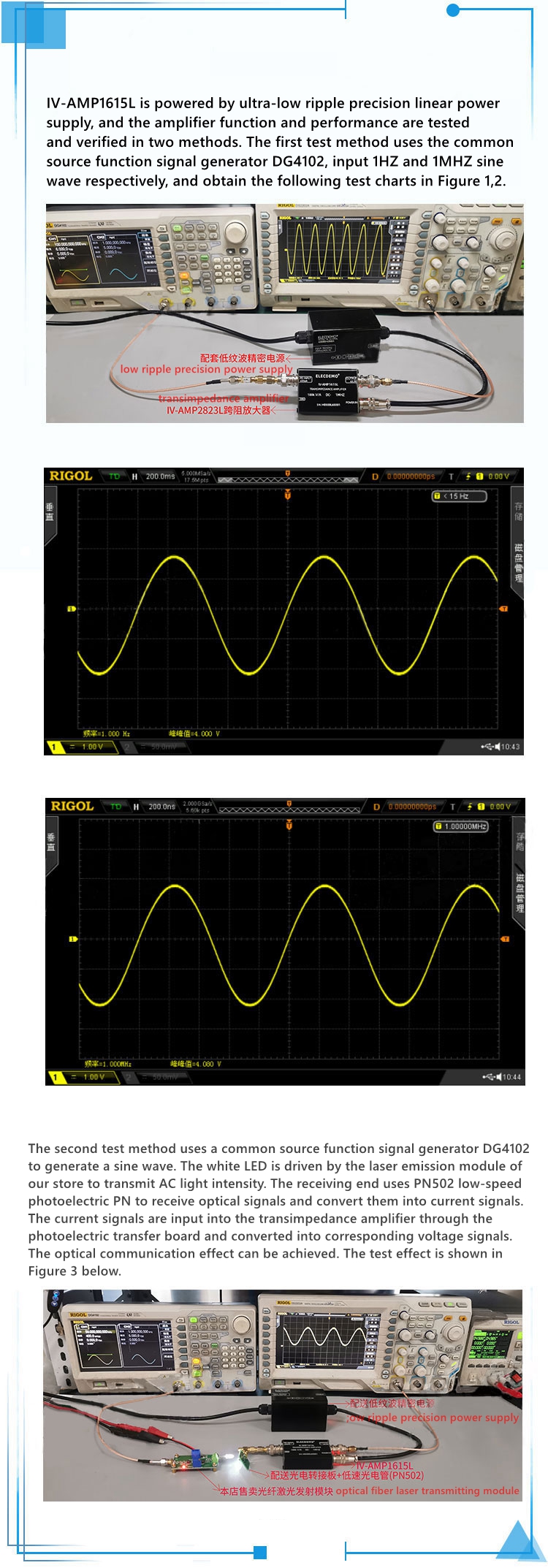

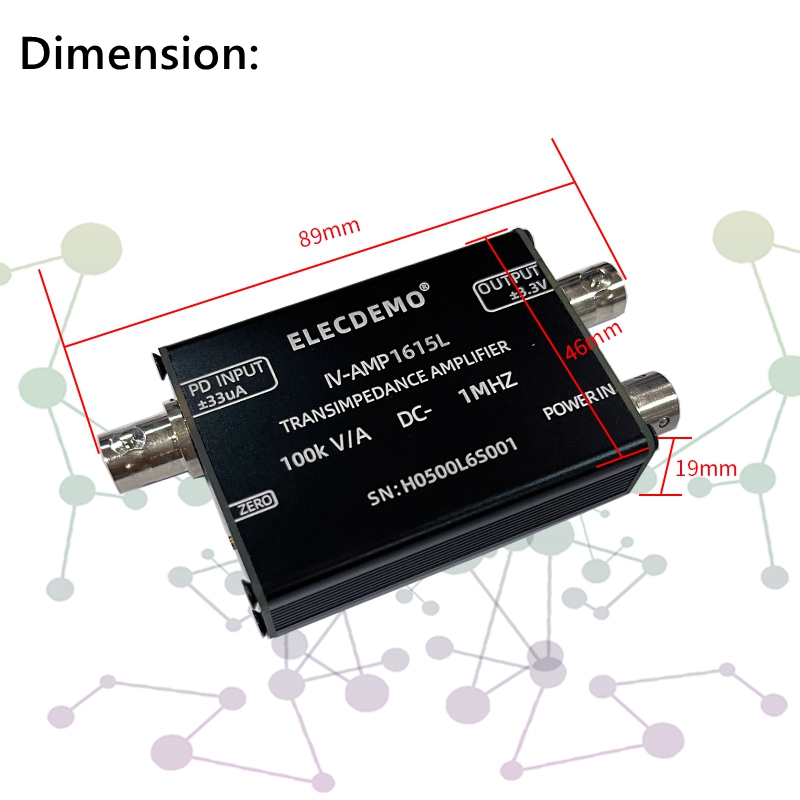

- Specification: 89 x 46 x 19mm (L x W x H)-PCB size
- Module heating: No heat sink, no heat dissipation required for normal operation
- Operating temperature: -25℃——+75℃
- Feature: High-speed current to voltage, zero point adjustable
- Scope of application: photoelectric detector, data acquisition front-end, weak signal detection, etc.

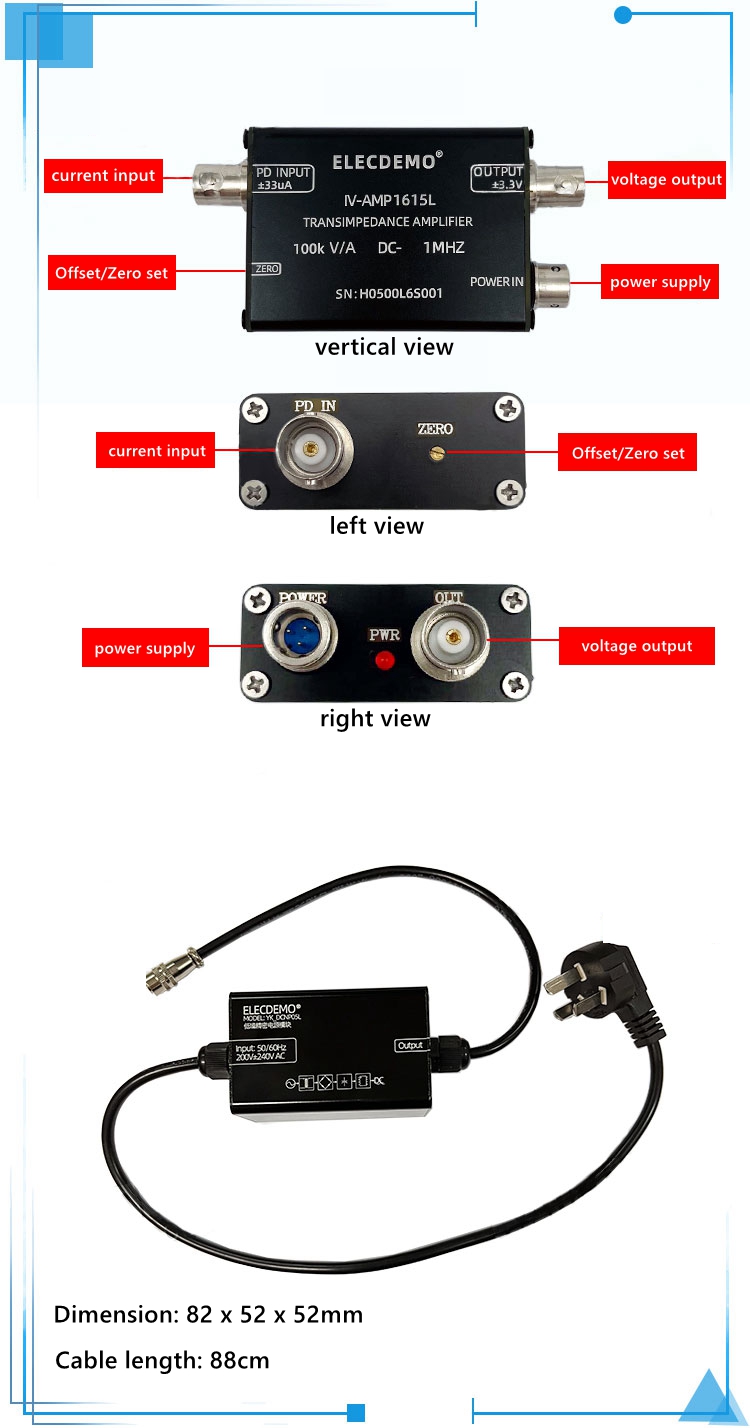

- Module interface type: 3PIN aviation socket, BNC female.

Package Included:
- 1 x IV-AMP1615L
- 1 x Supporting low ripple precision power supply
- 2 x 30cm SMA to BNC high-frequency wire
- 1 x 10cm BNC girdling tin wire
- 2 x Photoelectric adapter board
- 1 x Low-speed photocell (PN502)

Note:
- The power supply of the amplifier is a precision low ripple power supply. The aero plug should ensure stable insertion to ensure normal power supply.
- As the amplifier is a high-precision high-speed device, it is recommended to use matching wire to avoid unnecessary interference
- The input signal shall not be over range or over voltage input, and the module has no protection circuit.
- Poor contact or poor-quality wire may cause signal attenuation or excessive noise.
