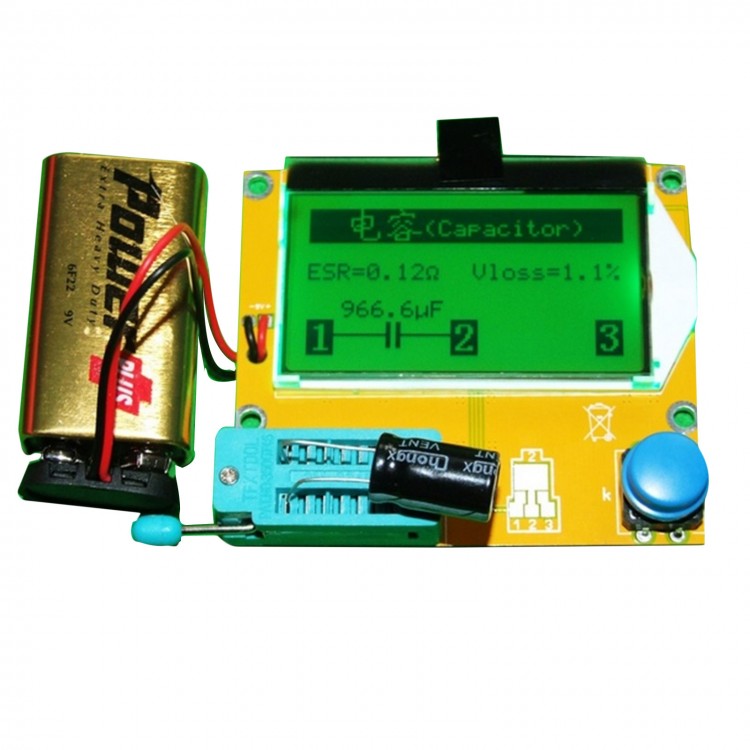

Transistor Tester ESR Resistance Capacitor Triode MOS Meter Graphical LCR-T4

Availability: In stock, usually dispatched in 1 business day

  • Price:$13.93
  • Price in reward points: 139 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $13.65 $13.37 $12.95 $12.40 Contact US
Quantity:

Transistor Tester ESR Resistance Capacitor Triode MOS Meter Graphical LCR-T4

Function

- Add boot voltage detection function
- Automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, diodes (including dual diode), thyristors, transistors, resistors and capacitors and other components,
- Automatic test out the pin element and displayed on the LCD
- Can be detected to determine the transistor emitter forward bias voltage of the transistor, MOSFET protection diode and the amplification factor of the base
- Measure the gate threshold voltage and gate capacitance of the MOSFET
- LCD display uses LCD 1 2864
- High test speed, valid component test: 2 seconds (except in the larger capacitor of large capacitance measurement also takes a long time, the measured time of one minute is normal)
- Power consumption off mode: less than 20 nA
- English version

Range:
- Resistor: 0.1Ohm-50MOhm
- Capacitor: 25pF-100000uF
- Inductance : 0.01mH - 20H
- Working power:  DV-9V
- Standby current:  0.02uA
- Operating current:  25mA

Package including
- 1xLCR-T4 multifunction tester
