Transistor Tester TFT Diode Triode Capacitance Meter LCR ESR NPN PNP MOSFET LCR-TC1
Description:
- 160x128 TFT display
- Multi function key
- Transistor test area
- Zener Diode test area
- IR receiver window
- Micro USB Charging Interface
- Charge indicator LED
Features:
- TC-V2.12k is a TFT graphic display Multifunction Tester.
- Transistor Tester
- Automatic detection of zener diode 0.01-30V
- Self test with automatic calibration

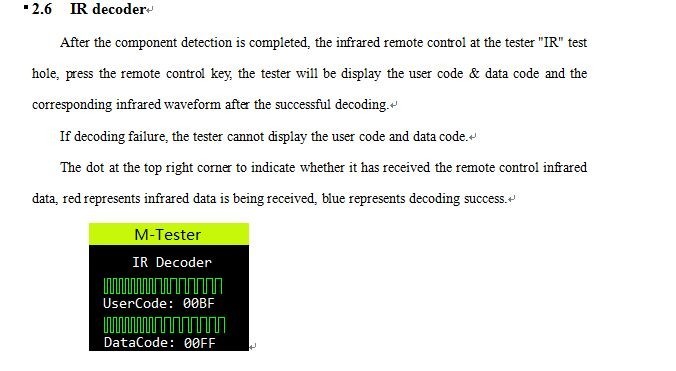

IR decoder
- Support Hitachi IR coding
- IR waveform display
- Infrared receiving instruction
Others
- Measurement results using TFT graphic display(160x128)
- One key operation
- Auto Power Off(Timeout Settable)
- Built-in high capacity rechargeable Li-ion Battery

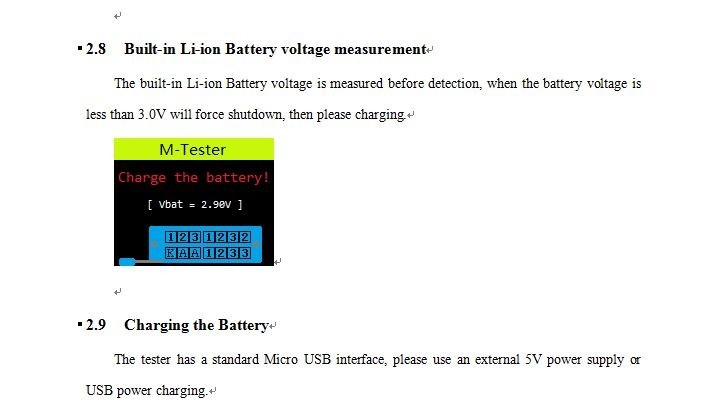

- Li-ion Battery voltage detection
- Support Chinese and English
Warning: Built-in Li-ion Battery, it is strictly prohibited the tester immersed in water, or near a heat source!
Warning: For your personal safety, please strictly comply with the use of Li-ion Battery specifications and precautions!
Operating Instructions
Key operational definitions
Multi-function key has two actions:
- Short press: Press the key and not less than 10 ms, release key within 1.5 seconds
- Long press: Press the key more than 1.5 seconds
Power on
In the power off state, short press the multifunction key, the tester is turned on and automatically measured.
Package list:
- 1 x Transistor Tester
