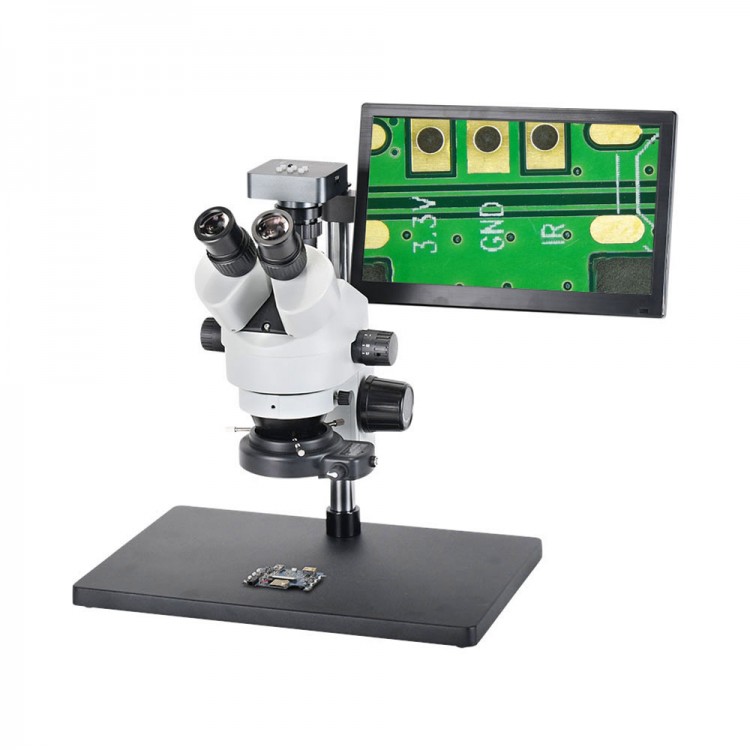

Trinocular Microscope 48MP FHD Camera V8 Kit 3.5X-90X With 11.6" Screen For PCB Jewelry Repair

Trinocular Microscope 48MP FHD Camera V8 Kit 3.5X-90X With 11.6" Screen For PCB Jewelry Repair

Advantages:
1. PC supports for multiple system, supports for Windows XP/7/8/10 system
2. Comes with a 3.5X-90X C-mount zoom lens for industrial microscope camera
3. This48MP industrial microscope camera is suitable for repairing industry
4. Adopts high quality metal housing, sturdy, durable and has long life
5. High resolution and dual output, which makes it more convenient to use

Key Features:
- An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
- 3.5x-90x super wide zoom magnification power
- Bright cool light 144-LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Large working distance
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable interpupillary distance
- Rubber eye-guards included

- Head: 360 degree rotatable 45 degree inclined binocular
- Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
- Objective Zoom Range: 0.35X-9.0X, using the lenses for Barlow
- Working Distance: 4" (100mm)
- Diopter Adjustment: +/- 5dp
- Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
- Round Plate: 3-3/4" (95mm) in diameter
- Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
- Illumination: 144-LED Ring Light
- Power Input: 110-240V, 50-60HZ, Automatic Switching
- Accessories: Paired eye-caps
- Weight: 5.5kg

Camera Specifications:
- Condition: 100% Brand New
- Item Type: Microscope Camera
- Model: High Definition Multimedia Interface USB2.0 Dual Output Camera
- Image Format: jpg
- Image Resolution: 48MP
- Video Format: MP4 (for Memory Card)
- Video Recorder: 1080P at 60FPS
- High Definition Multimedia Interface Video Resolution: 1920x1080 at 60FPS (For HDMI)
- USB Video Resolution: 1920x1080 at 30FPS; 1280x720 at 30FPS; 640x480 at 30FPS; 320x240 at 30FPS
- White Balance: Automatic / Manual
- Light: Automatic / Manual
- Exposure: Automatic / Manual, Value Adjustable
- Direction: Left / Right, Up / Down
- Freeze: Support
- OSD: English / Chinese / French / Spanish / Japanese / German
- Lines: Different colors, 5 horizontal lines, 5 vertical lines, any position
- Image Sensor: 48MP CMOS Sensor 1/2.33 Inches
- Effective Pixels: 48MP
- Pixels Size: 1.335μm x 1.335μm
- Frame Rate: 60fps
- Definition: Full High Definition
- Housing: Metal
- Lens: C/CS
- Video Format: MOV
- Digital Zoom: Support
- Brightness Control: Automatic / Manual
- Color: R / G / B Adjustable
- Film and Records: Support
- Cross Cursor: Support multi-color, adjustable size
- Horizontal and Vertical Lines: Support multi-color, 5 horizontal / vertical lines, movable. Different colors, 5 horizontal lines, 5 vertical lines, any position
- Memory Card Interface: up to 64G (Not Included)
- High Definition Multimedia Interface: Standard High Definition Multimedia Interface Output (Type A)
- USB Interface: Standard USB2.0 Interface (Type B)
- Input Voltage: DC 12V

144 LED Adjustable Compact Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 144 bright white LED bulbs
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power supply input: 100-240V, 50-60HZ, automatic switching
- Inside diameter of the ring light: 1.0" (27mm)
- Overall outside diameter: 1.77" (45mm)
- Working Distance: 27mm-45mm

Package Included:
- 1 x Set of Trinocular Microscope
