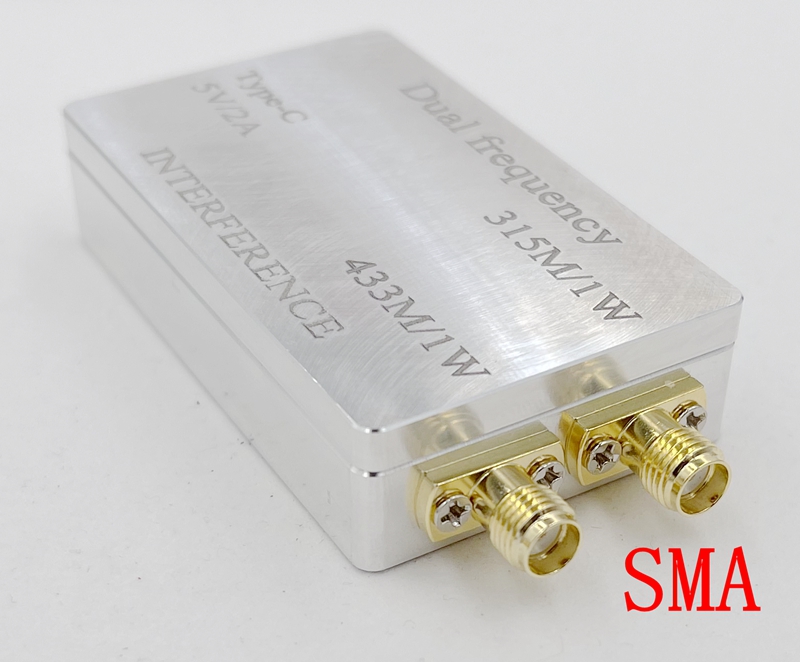

Truck Scale Remote Control Signal Interference Blocker Anti-Cheating Dual Frequency 315M/1W 433M/1W

Truck Scale Remote Control Signal Interference Blocker Anti-Cheating Dual Frequency 315M/1W 433M/1W

Attention:
(1) The antenna must be connected first, and then power it on. Otherwise, the chip will be burnt out due to excessive reflected signals!
(2) A 5V/2A adapter is recommended, and the normal current is greater than 1A during operation.
(3) The body adopts an all-aluminum box shell, which has good heat dissipation and is suitable for long-time work.
(4)Regarding the interference distance, the interference radius of an open room is 50m, and the wall penetration capacity is 2-3 walls.

Description:
This product is an instrument for the safety of weighing and measurement. It can effectively prevent the remote cheating signals of all large and small truck scales and electronic scales on the market. Help companies and individuals avoid illegal infringements during the weighing process.

Now there is a platform scale remote control that can change the weighing weight arbitrarily. The criminals can change the weight of goods (increase or decrease) during the weighing process as long as the remote control in their hands, so that the displayed weight of the goods is not the real data to seek illegal benefits from it.

This hand-held anti-control instrument (USB can be directly connected to your power bank) can help you avoid it. This instrument adopts the latest technology. Whether you are a buyer or a seller, whether you are a buyer or a seller, you can use your own platform scale or electronic scale. Other people's weighbridges or electronic scales are good, as long as the instrument is turned on, the remote control of that floor scale or electronic scale can be invalidated, regardless of whether you press the remote control to increase or decrease it will not work. It completely eliminates this illegal behavior and protects your interests from infringement. It is a safe and good assistant for your business and personal weighing.

It can be applied to dual-band remote control, digital transmission, image transmission, shielding.

Module Parameters:

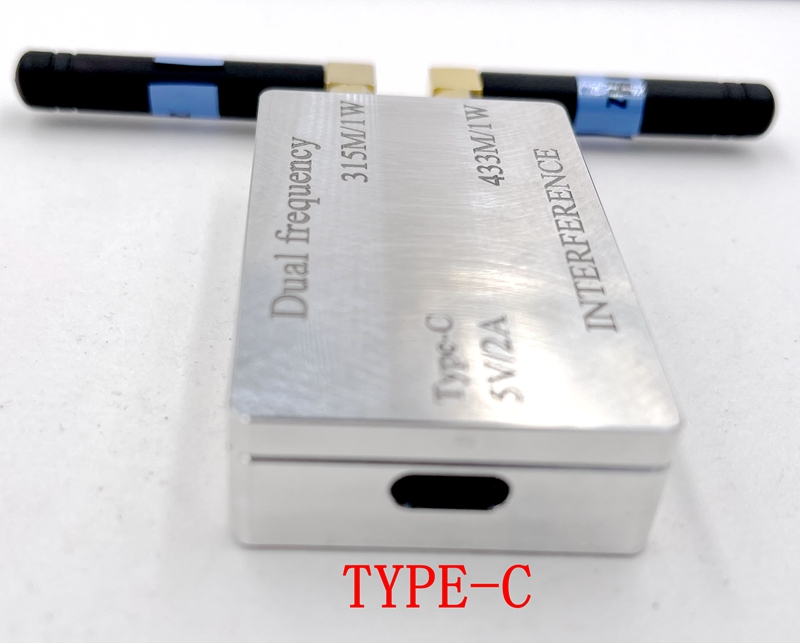

1. Power supply: TYPE-C cable (USB to TYPE-C)
2. Module frequency range: 315M (1W-ASK modulation) and 433M (1W-ASK modulation)
3. Volume: 6*3.5*1.4cm (without sizes of protruding SMA connectors). Net weight: 80g (including host + TYPE-C line + antennas)
4. Current: 2A (5V/2A power adapter is recommended)
5. P1dB=30dBm at 315MHz (1W); P1dB=30dBm at 433.92MHz (1W)
6. Output interface: SMA female, output impedance: 50 ohms

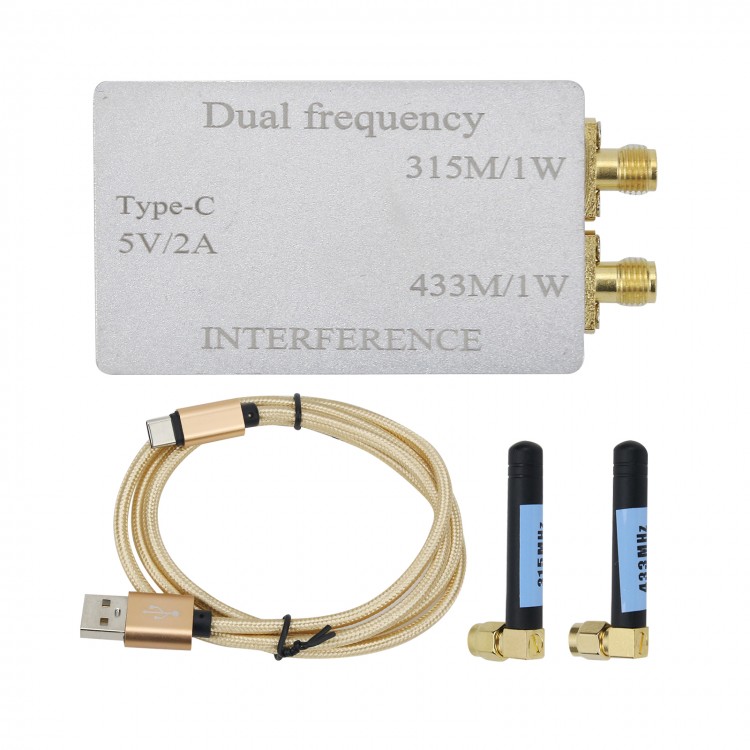

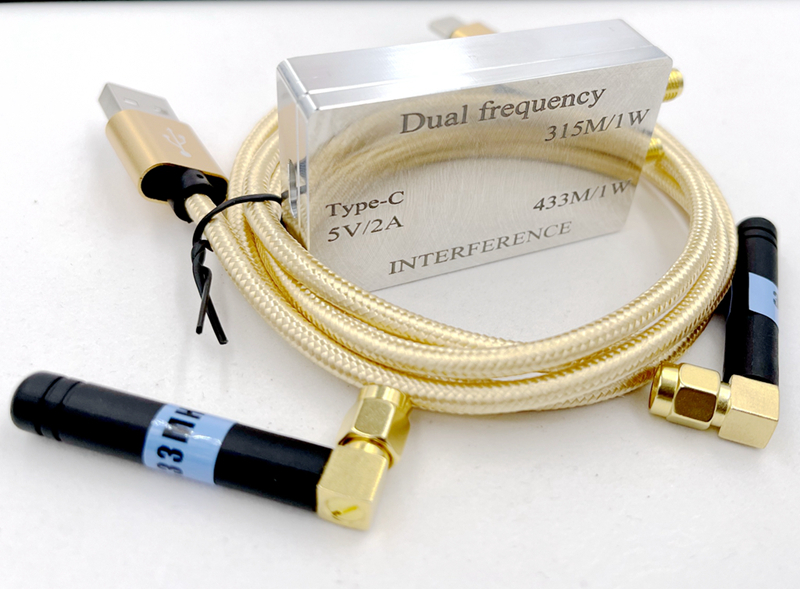

Package Included:
- 1 x Host Aluminum Alloy Case
- 1 x Type-C Cable
- 2 x Antennas

Measured Parameters:

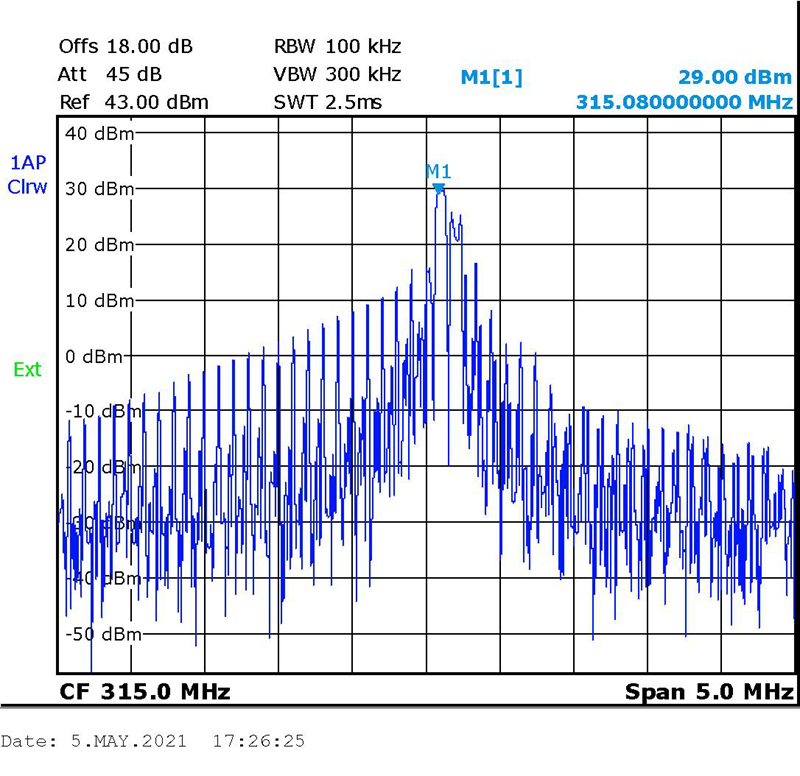

315MHz measured sweep bandwidth parameters

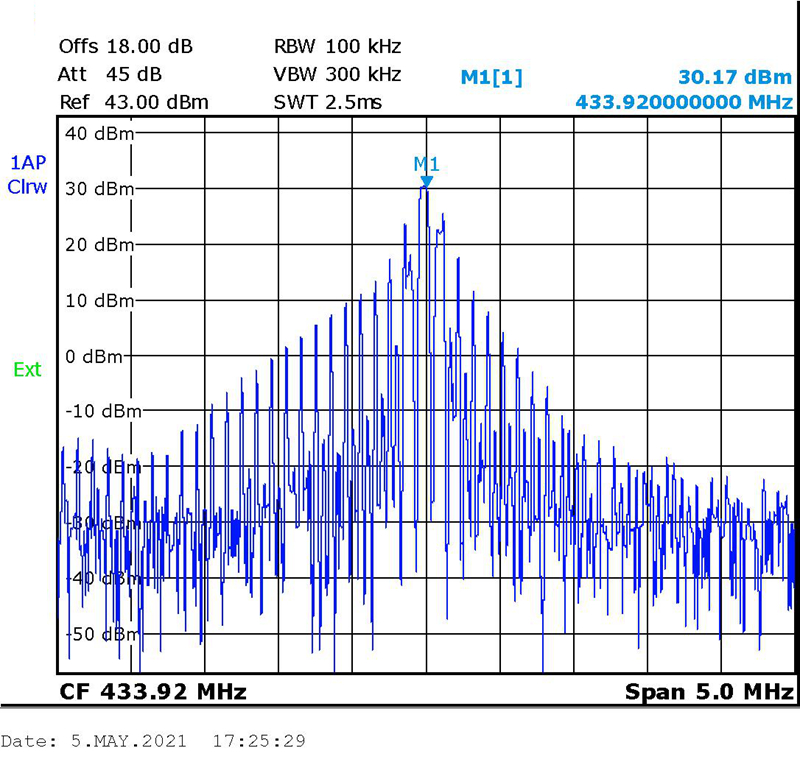

433.92MHz measured sweep bandwidth parameters
