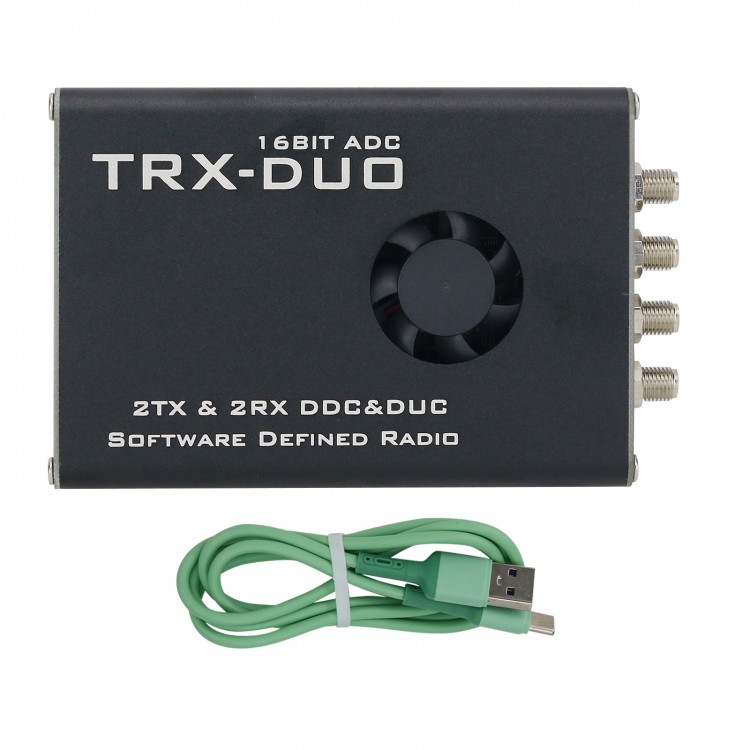

TRX-DUO 10KHz-60MHz SDR Receiver SDR Radio 16Bit ADC 2TX & 2RX DDC & DUC Software Defined Radio

TRX-DUO 10KHz-60MHz SDR Receiver SDR Radio 16Bit ADC 2TX & 2RX DDC & DUC Software Defined Radio

Description:
TRX-duo dual-channel 10KHz-60MHz SDR device transmission is compatible with SDR Dual 16bit ADC ZYNQ7010 for Red Pitaya.

TRX-duo is an SDR device that supports dual-channel physical reception and transmission. It uses 2x16bit ADC LTC2208 to realize direct sampling reception of 10KHz-60MHz. It boasts high dynamic range, high sensitivity, and convenient remote deployment. It uses 14bit DAC to achieve dual transmission. The software can be compatible with the famous SDR for Red Pitaya, and can be easily used with HDSDR SDR# PowerSDR SDRConsole (V3) and other software.

Specifications:
BASIC:
- Processor Dual Core for Arm Cortex A9
- FPGA Zynq 7010 SoC
- RAM 512MB

CONNECTIVITY:
- Ethernet: 1Gbit
- TYPE-C: USB 2.0
- Wi-Fi: requires Wi-Fi dongle (not included)

RF INPUTS:
- Channels: 2, SMA connectors
- Sample rate: 125MS/s
- ADC resolution: 16-bit
- Full-scale voltage range: 0.5Vpp /-2dBm
- Absolute Max. Input voltage range: DC max 50V (AC-coupled), 1Vpp for RF
- Input protection: RF transformer & AC-coupled

RF OUTPUTS:
- Channels: 2
- Sample rate: 125MS/s
- DAC resolution: 14 bit
- Voltage range: 1Vpp / +4dBm
- Load Impedance: 50ohm

EXTENSION CONNECTOR:
- Digital l/O pins: 16
- Analog inputs: 4
- Analog inputs voltage range: 0-3.3V
- Sample rate: 100kS/s
- Resolution: 12-bits
- Analog outputs: 4
- Analog outputs voltage range: 0 -1.8V
- Communication interfaces: I2C, UART, SPI
- Available voltages: +3.3V

Package Included:
- 1 x SDR Device
