TS 120A Sensored Brushless ESC RC Cars ESC Speed Controller for 1:10 RC Buggy (Aluminum Housing)

TS 120A Sensored Brushless ESC RC Cars ESC Speed Controller for 1:10 RC Buggy (Aluminum Housing)

Description:
- Toro TS 120A ESC for 1/10th Scale Car is designed for the use with 2S to 3S LiPo battery packs, has a 3.5T motor limit and features a 6V/3A BEC system. (Batteries are not included)
- The controller is highly programmable including boost and turbo timing settings, features a build in switch, onboard programming and 10 user modifiable profiles.
- And the speed controller is programmable via Skylink PC interface, program box or even smart phone using an optional Bluetooth module.

Specifications:
- BEC Output: 6V/3A
- Resistance: 0.0003 Ω
- Constant/Burst Current: 120A/760A
- Battery Required: 4-9S NIMH or 2-3S LIPO (Batteries are not included)
- Car Compatible: 1/10 and 1/12 Buggy and Truck 1/10 and 1/8 Crawlers
- Motor Compatible: Brushless Sensor & Sensor-less ESC.
- Motor Limits:
- 5-6S NIMH or 2S LIPO--≥3.5T(1/10 Buggy), ≥5.5T(1/10 Truck)
- 8-9S NIMH or 3S LIPO--≥5.5T(1/10 Buggy),≥8.5T(1/10 Truck)
- Size: 39 x 31 x 19 mm (L*W*H)
- Weight: 45g (w/o wire)
- FAN: 8V/0.2A , MAX 12.6V
- Including the fan

Features:
- Turbo and boosting time can be set to enhance the motor RPM.
- The throttle/brake curve can be customized. Users can also set the point to control brake rate.
- The bluetooth design can help user modify the ESC via smart phones or ipod etc.
- The system of heat dissipation is effective basing on the analysis of thermo genesis of heat effect and heat transfer modeling.
- Optional Colors of ESC: Black, Blue, Golden

Note: Please leave a message about your favorite color when purchasing. Thank you!

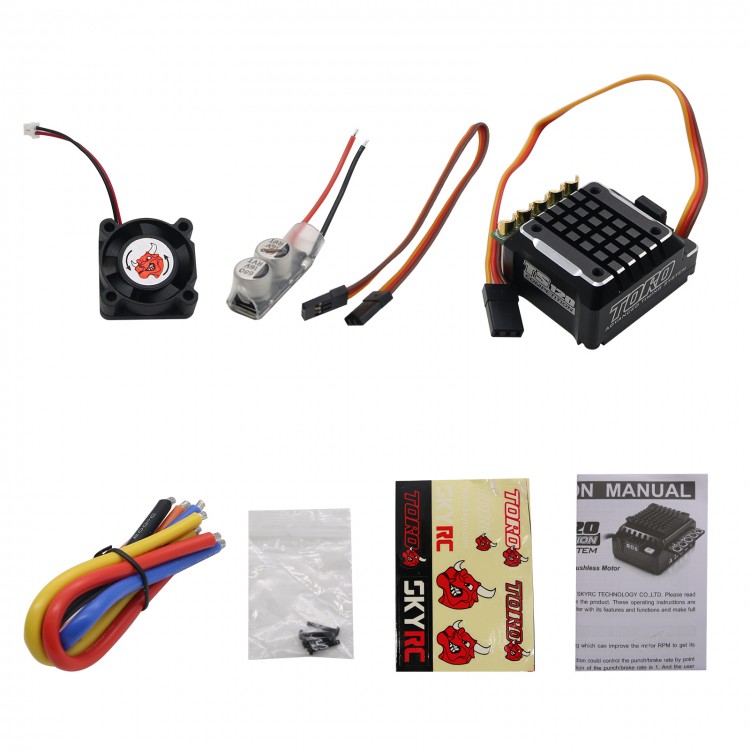

Package Included:
- One Set of TS 120A ESC
