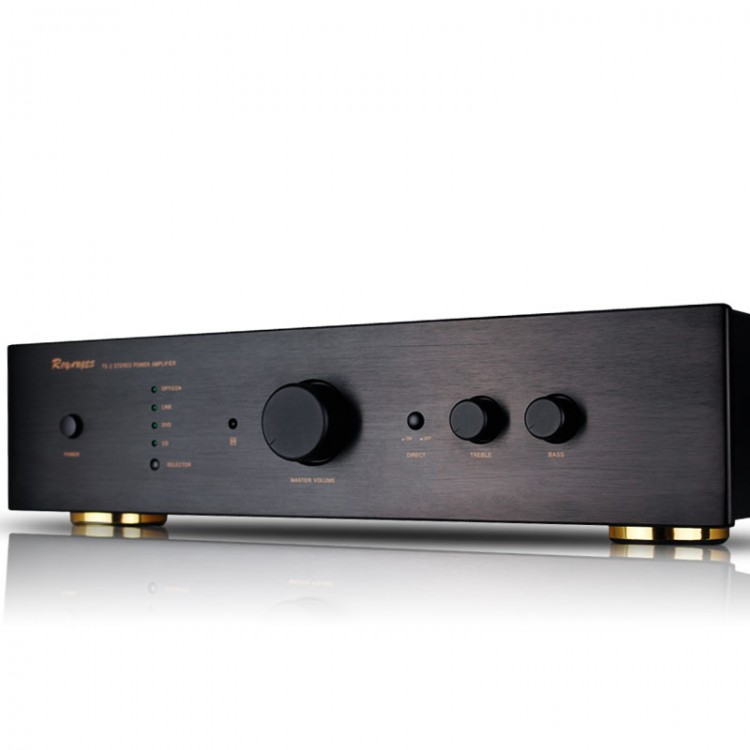

TS-2 Stereo Power Amplifier 400Wx2 Hifi Power Amp Featuring Imported Component With Remote Control

TS-2 Stereo Power Amplifier 400Wx2 Hifi Power Amp Featuring Imported Component With Remote Control

Description:
TS-2 integrated power amplifier is a pure HIFI power amplifier that pursues sound quality and high quality. It uses a class A and B (AB) amplifier circuit, which can provide 200Wx2 output power under 8Ω impedance; it is close to 400Wx2 output power at 4Ω . It is suitable for ordinary household floor-standing speakers, bookshelf speakers and constant-impedance speakers.

This machine follows the HIFI concept, the main volume uses a mechanical motor potentiometer, and the user can manually adjust the treble and bass. Users can also control the master volume and switch audio input channels through the remote control. It supports optical fiber and coaxial digital signal input, which is convenient for connecting modern TV digital signals.

TS-2 has 200W output power per channel. The low-frequency sound is stable, powerful and elastic, the mid-frequency sound is thick, and the high-frequency sound is clear and delicate.

High-power copper transformer and power supply filter capacitors are used; the amp adopts double differential power amplifier circuit; the power tube adopts original paired tube, which has strong load capacity and high power. The perfect high-fidelity preamplifier adopts a typical amplification circuit, and the channel separation is high, making clear and transparent sound. Powerful drive and excellent control are enabled. Sealed motor potentiometer and the simple remote control make it easy and simple to use. The highly integrated protection circuit allows you to use it with confidence. Made of aluminum alloy, the panel is brushed, and the knobs are frosted.

Machined by precision CNC machine tool, it is a high-quality power amplifier suitable for home entertainment.

Features:
- Hifi2.0 power amplifier
- Simple but elegant appearance in modern style
- Domestic high-power Hifi amp
- Super large copper transformer; 4pcs large-capacity filter capacitors; NE5532 dual op amp; Hifi circuit; Hifi circuit
- Quality double-sided PCB circuit board; filter capacitor for Rubycon (80V/10000uf); TTC5200/TTA1943 pair transistor; capacitor for WIMA; Premium contact relay; imported electrolytic capacitor
- Relay audio conversion design scheme; simple and neat wiring of the whole machine; advanced technology; reasonable layout and heat dissipation scheme
- The thickened panel (8cm/3.1") of aluminum alloy adopts wire drawing process; the aluminum alloy knobs have a matte texture

Technical Parameters:
- Brand: for ROYANGES
- Model: TS-2
- Rated output power: 200W+200W (8Ω, RMS 1KHz); 400W+400W (4Ω, RMS 1KHz)
- THD: ≤0.05% (1KHz)
- Frequency Response: 20Hz-25KHz (±0.5db)
- Signal-to-noise ratio: ≥100DB (A-weighted)
- Input impedance: 100KΩ
- Output impedance: 4-8Ω
- Input sensitivity: ≥150mV
- Channel separation: ≥68DB
- Dimensions: 430 x 350 x 110mm/16.9 x 13.8 x 4.3"
- Net weight: 11.2KG/24.7lb

Package Included:
- 1 x Power Amp
- 1 x Remote Control
