TS-FT001 1-5m Ultrasonic Liquid Level Gauge Water Pump Automatic Control Box IP65 Waterproof with 4.3-inch Screen

TS-FT001 1-5m Ultrasonic Liquid Level Gauge Water Pump Automatic Control Box IP65 Waterproof with 4.3-inch Screen

Difference:
- TS-FT001: with solar charging battery and water pump control box
- TS-FT003: with solar charging battery, without water pump control box
- TS-FT005: without solar charging battery and water pump control box

Features:
- Automatic Water Addition: The power supply voltage range of the water pump control box is AC110-230V.

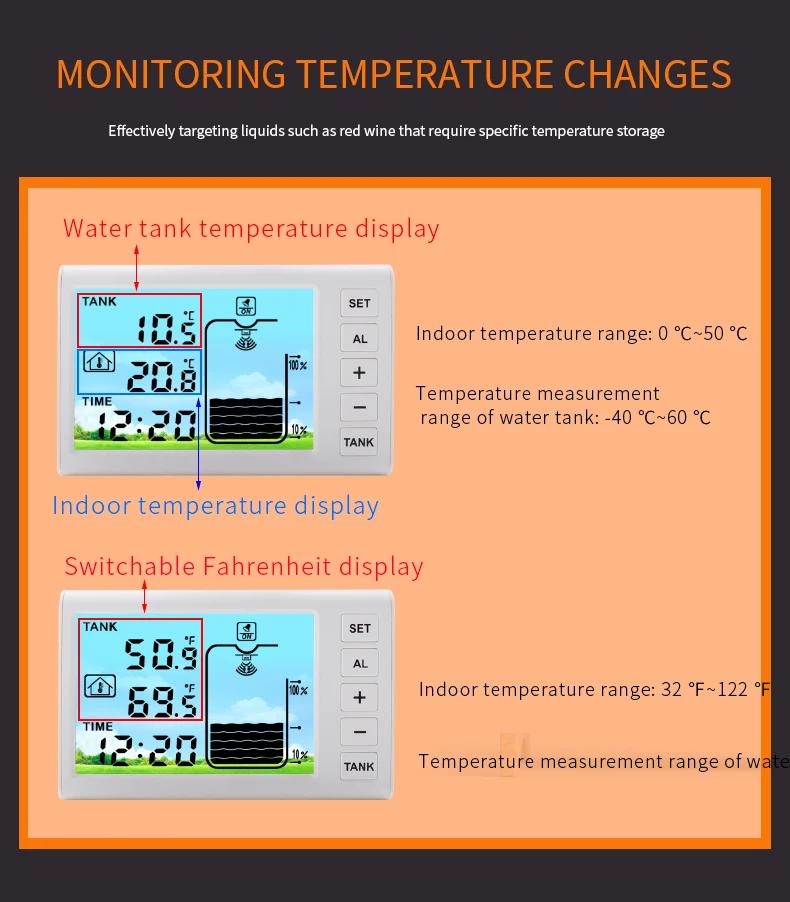

- Monitoring Temperature Changes: Effectively targeting liquids such as red wine that require specific temperature storage.
- IP65 Waterproof: Effective protection against rainwater splashing from any direction.
- Solar Charging: The solar panel assists in power supply and has a charging function for the rechargeable battery, using nickel hydrogen rechargeable batteries can reduce replacement to a certain extent the number of times the battery is used. Saving the cost of using the battery, when installing, please install the solar panel on the sunny side, when illuminated, it can provide electricity and charge the rechargeable battery.

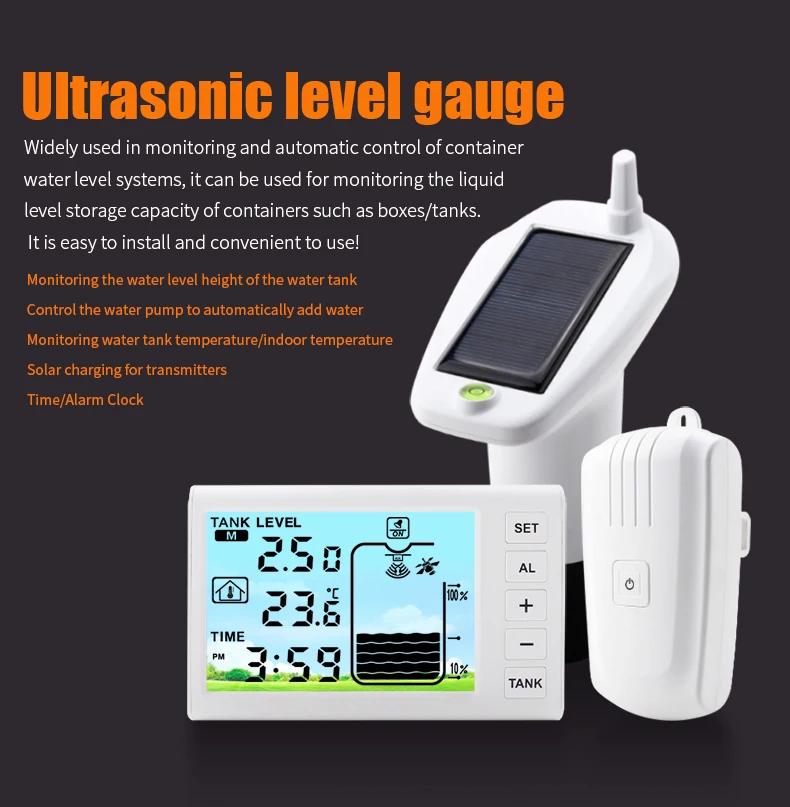

- Ultrasonic Level Gauge: Widely used in monitoring and automatic control of container water level systems, it can be used for monitoring the liquid level storage capacity of containers such as boxes/tanks. It is easy to install and convenient to use.

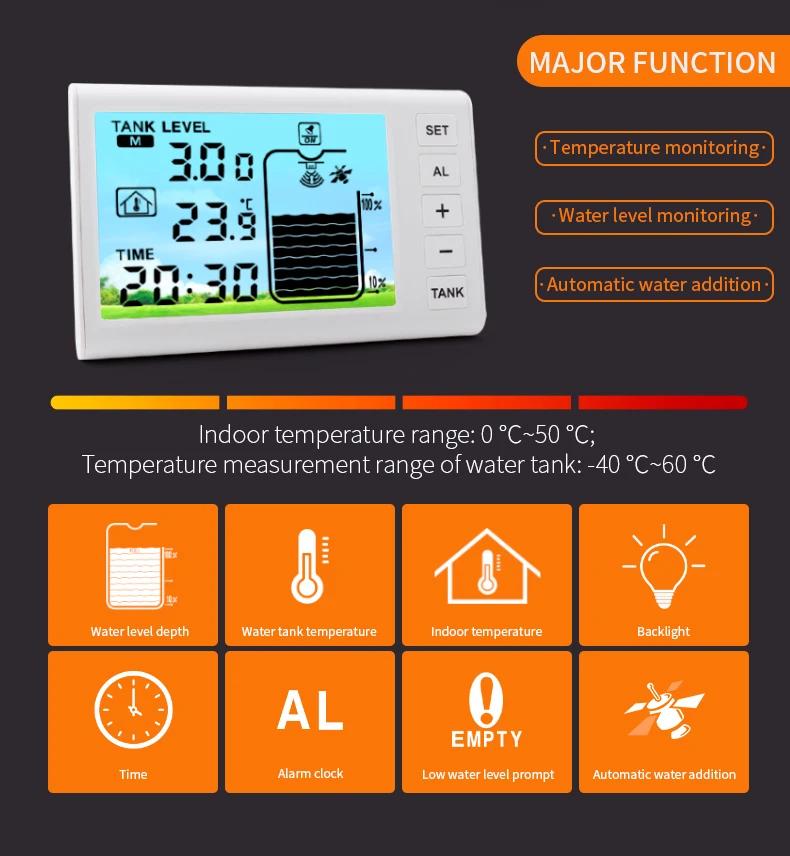

Functions:

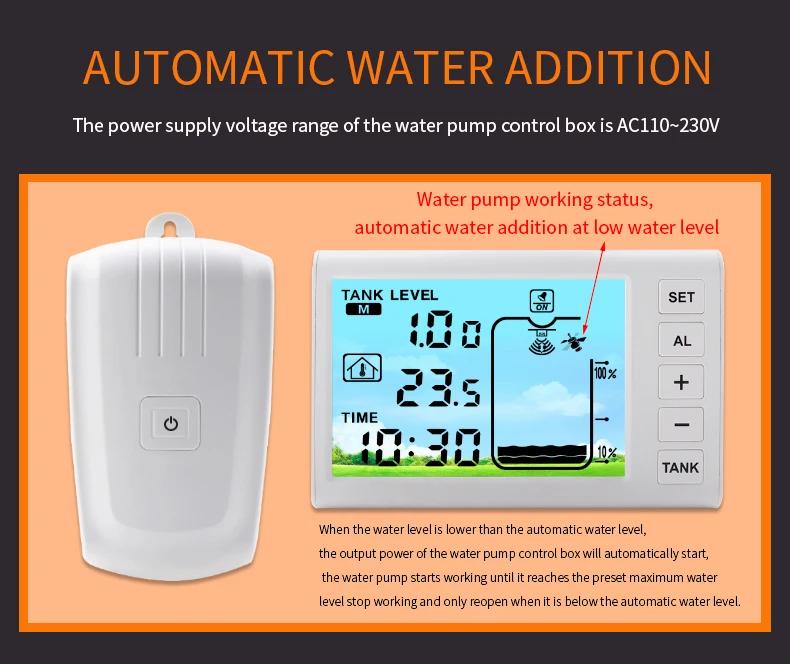

- Water pump control box automatically adds water at low water level
- Backlight on/off function
- Time function 12H/24H system (default display upon startup: 0:00 24 hours)
- Low battery reminder for transmitter
- Alarm clock function (default display when turned on: 0:00)
- Buzzer on/off (the buzzer function is only activated or deactivated for button sounds, and the alarm clock mode is not affected by this)
- Indoor temperature °C/°F (default °C)
- Data signal indication
- Water tank temperature °C/°F (default °C)
- Water pump control box power output indicator

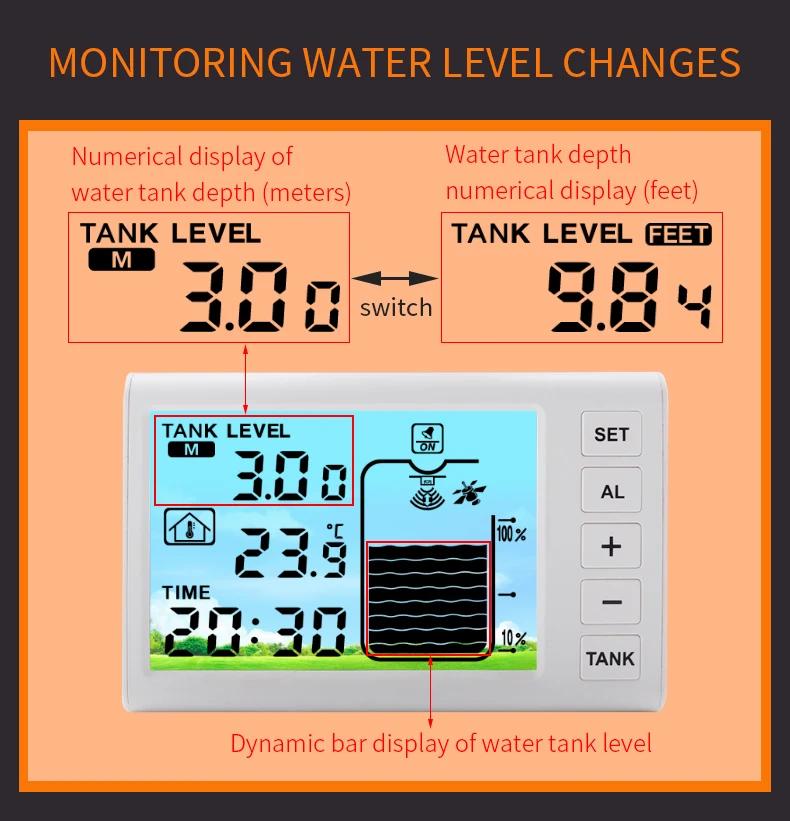

- Water tank level display unit: meter/foot (default upon startup: meter)
- Low water level icon display
- Simulated display of water level depth on a 10 element LCD bar chart

Specifications:
- Model: TS-FT001
- Material: ABS
- Color: White

Water pump control box:

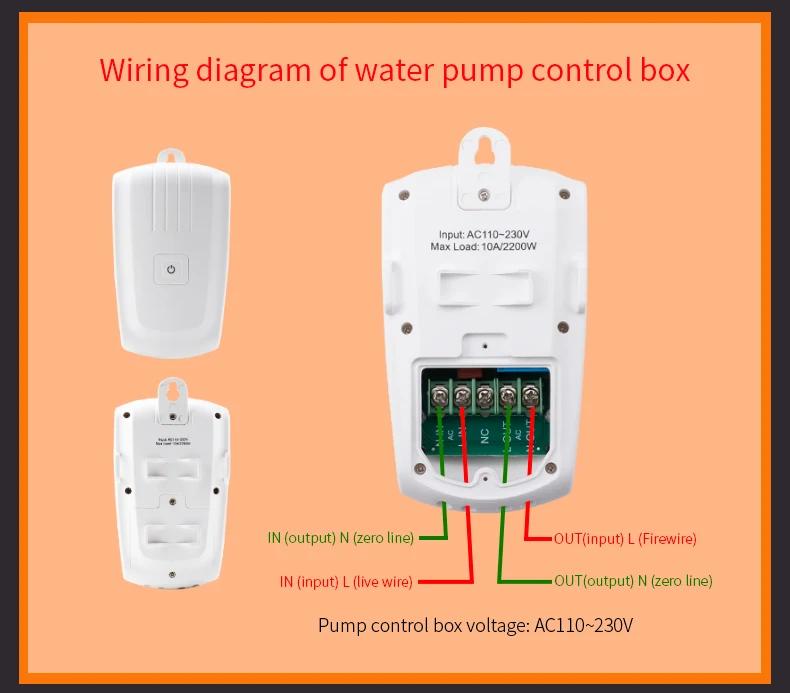

- Operating voltage: AC 110 ~ 230V

Receiver:
- Indoor temperature range: 0℃ ~ 50℃, -32℉ ~ 122℉
- Resolution: 0.1℃
- Accuracy: ±1℃
- Water tank temperature range: -40℃ ~ 60℃, -40℉ ~ 140℉
- Alarm duration: 120 seconds

Transmitter:
- Temperature resolution: 0.1℃
- Accuracy: ±1℃
- Water level resolution: 0.01m
- Accuracy: ±0.05m
- Water level measurement range: 1 ~ 5m

Battery Usage:
- Receiver: power by 3 x AAA 1.5V 900mAh batteries (not included) / Type-C power cord
- Receiver battery life: 12 months (reference time without backlight activation)

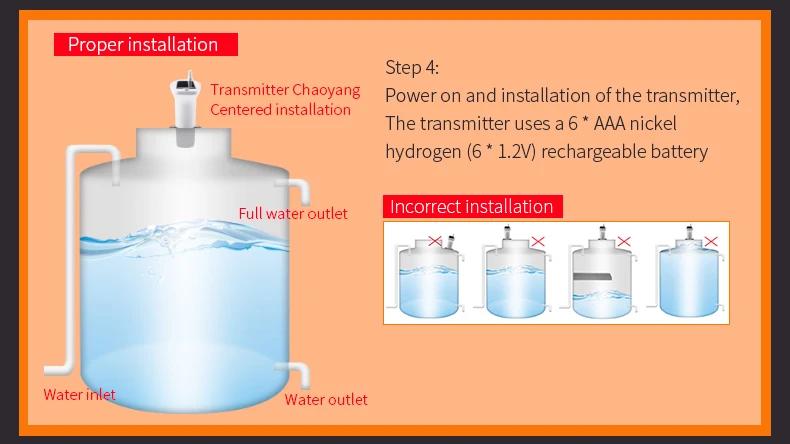

- Transmitter: power by 6 x AAA batteries (not included) (Suggest customers to use rechargeable batteries for convenient solar charging!)
- Transmitter battery life: 12 months (reference time without exposure to sunlight)
- Receiver weight: 161g
- Receiver size: 13.5 x 2.6 x 8.4cm
- Transmitter weight: 137g
- Transmitter Size: 6.8 x 10.9 x 16.7cm
- Water pump control box weight: 134g
- Pump control box size: 7 x 3.5 x 13cm
- Package weight: 633g / 22.32oz
- Package size: 14.5 x 12 x 16cm / 5.71 x 4.72 x 6.29in

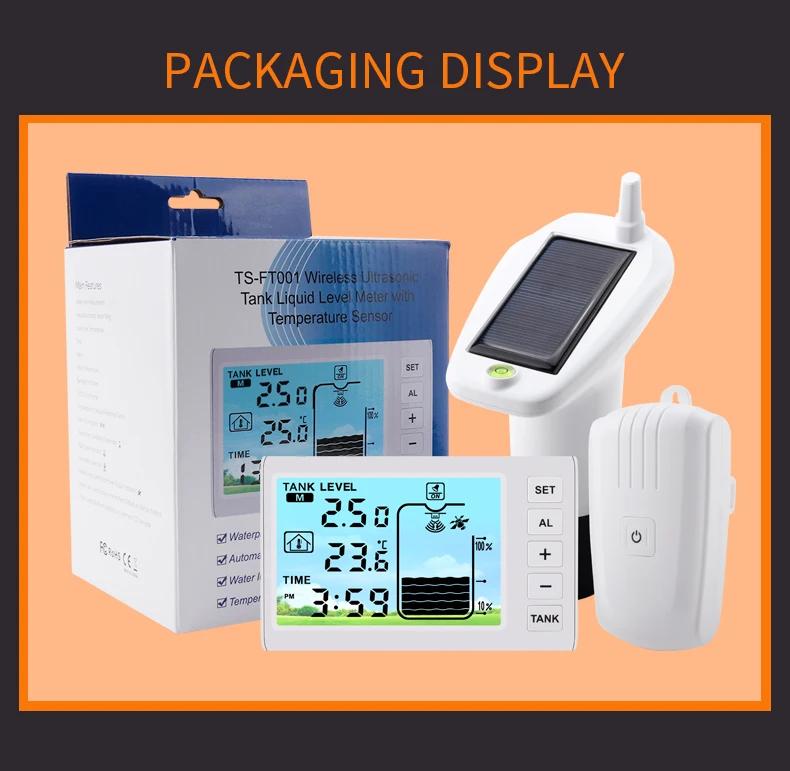

Package Included:
- 1 x Receiver
- 1 x Transmitter
- 1 x Water Pump Control Box
- 3 x Installation Screws
- 1 x Type-C Cable
- 1 x User Manual

Note:
- AAA Battery is not included.
