TS-FT005 1-5m Ultrasonic Liquid Level Gauge 4.3-inch Screen IP65 Waterproof without Water Pump Control Box

TS-FT005 1-5m Ultrasonic Liquid Level Gauge 4.3-inch Screen IP65 Waterproof without Water Pump Control Box

Difference:
- TS-FT001: with solar charging battery and water pump control box
- TS-FT003: with solar charging battery, without water pump control box
- TS-FT005: without solar charging battery and water pump control box

Features:
- Monitoring temperature changes: effectively targeting liquids such as red wine that require specific temperature storage.
- IP65 waterproof: effective protection against rainwater splashing from any direction.

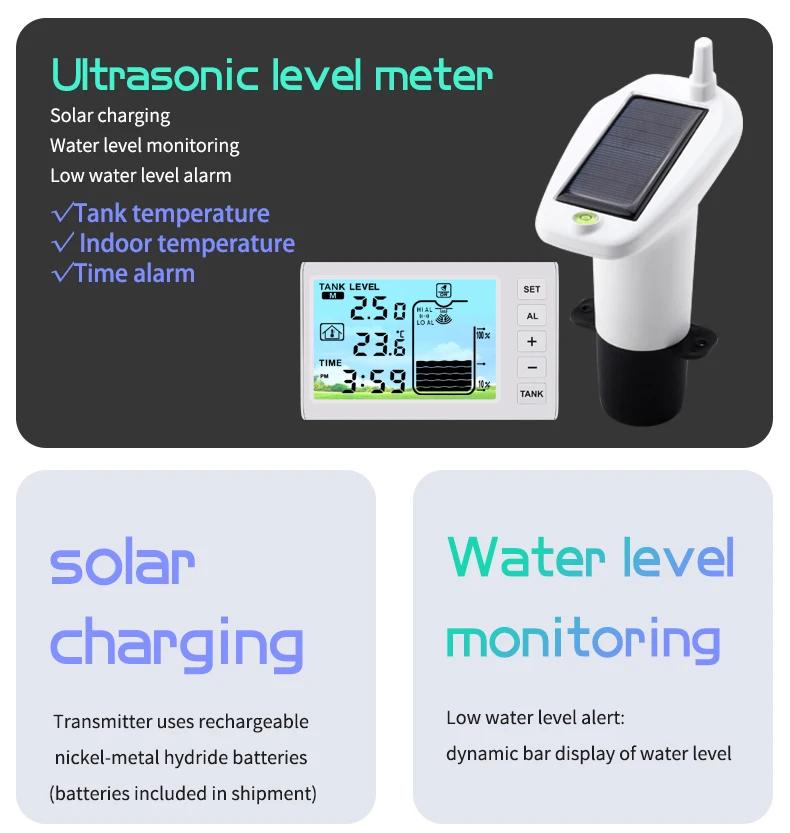

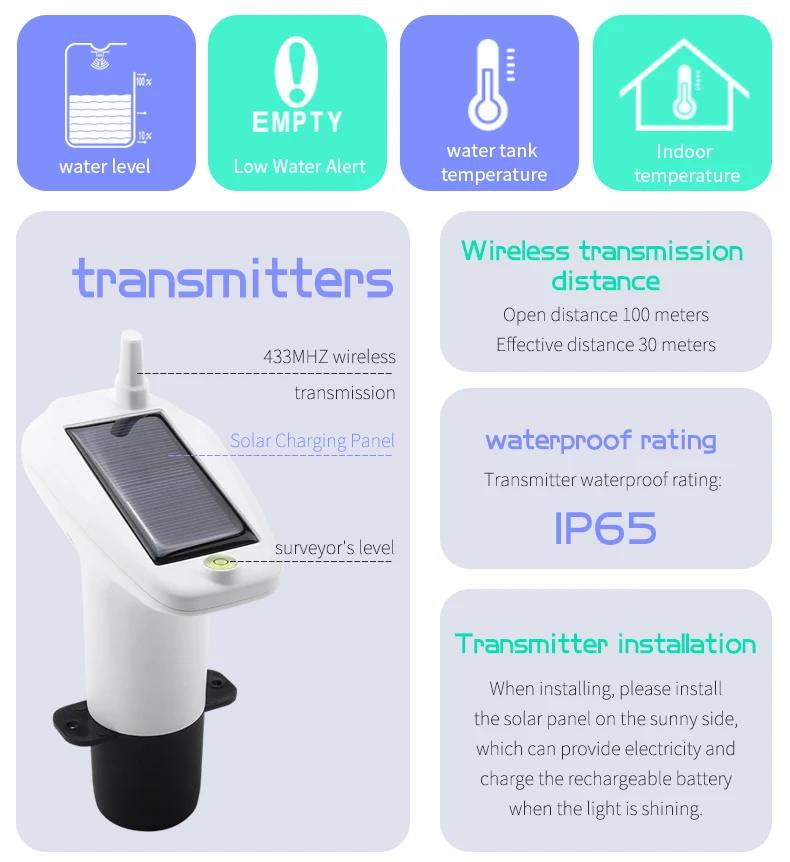

- Solar charging: the solar panel assists in power supply and has a charging function for the rechargeable battery, using nickel hydrogen rechargeable batteries can reduce replacement to a certain extent the number of times the battery is used. Saving the cost of using the battery, when installing, please install the solar panel on the sunny side, when illuminated, it can provide electricity and charge the rechargeable battery.

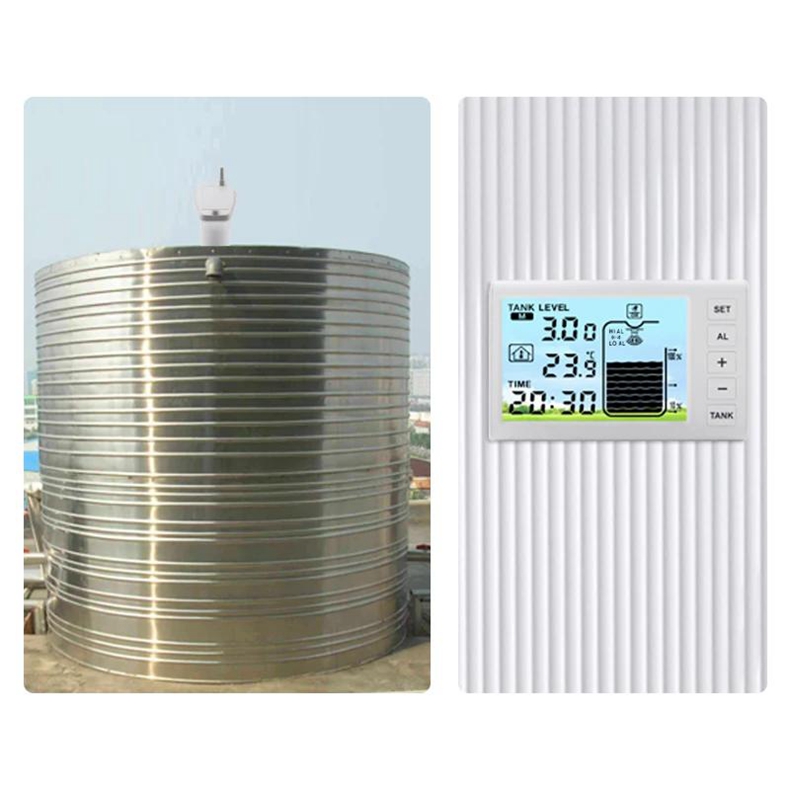

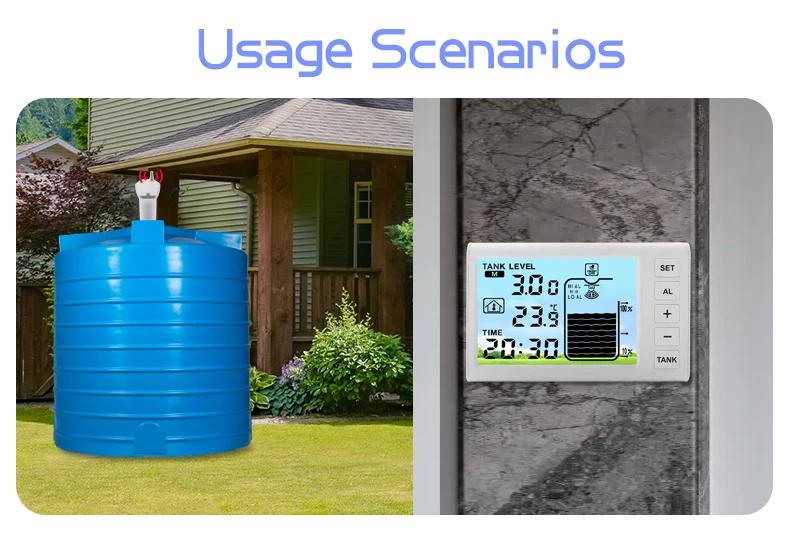

- Ultrasonic level gauge: widely used in monitoring and automatic control of container water level systems, it can be used for monitoring the liquid level storage capacity of containers such as boxes/tanks. It is easy to install and convenient to use.

Functions:
- Backlight on/off function
- Time function 12H/24H system (default display upon startup: 0:00 24 hours)
- Low battery reminder for transmitter
- Alarm clock function (default display when turned on: 0:00)
- Buzzer on/off (the buzzer function is only activated or deactivated for button sounds, and the alarm clock mode is not affected by this)

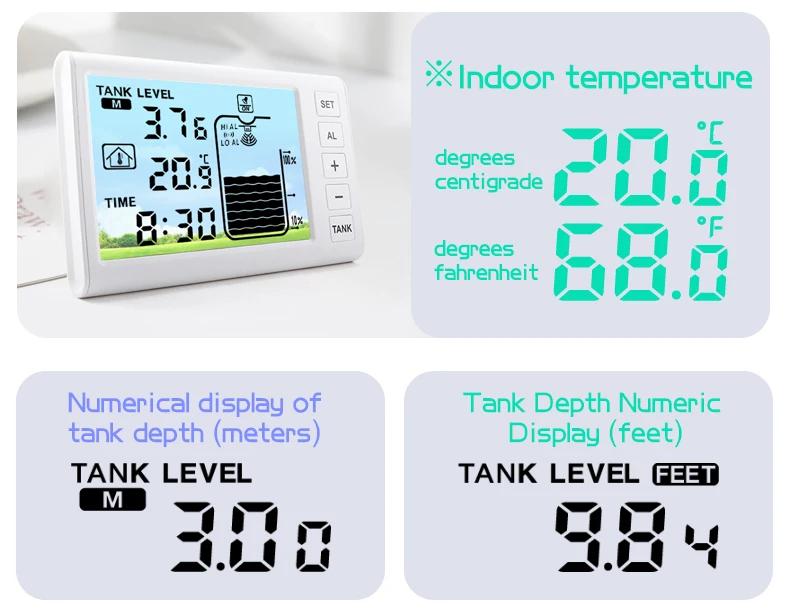

- Indoor temperature °C/°F (default °C)
- Data signal indication
- Water tank temperature °C/°F (default °C)
- Water tank level display unit: meter/foot (default upon startup: meter)

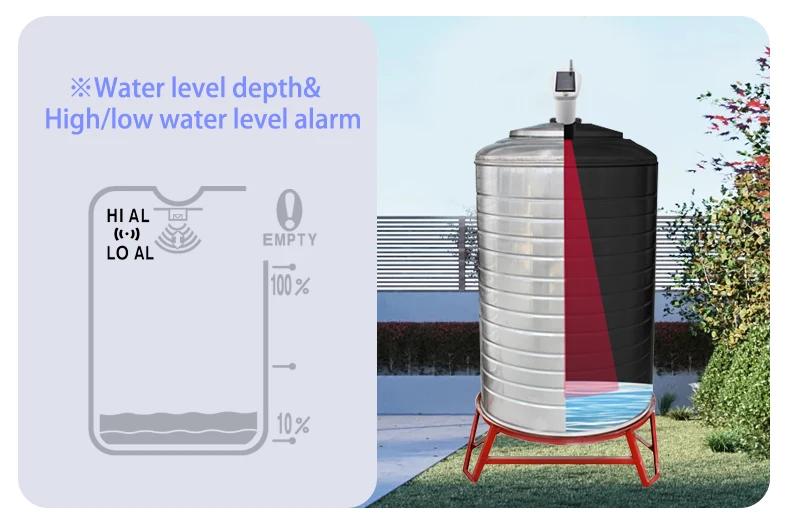

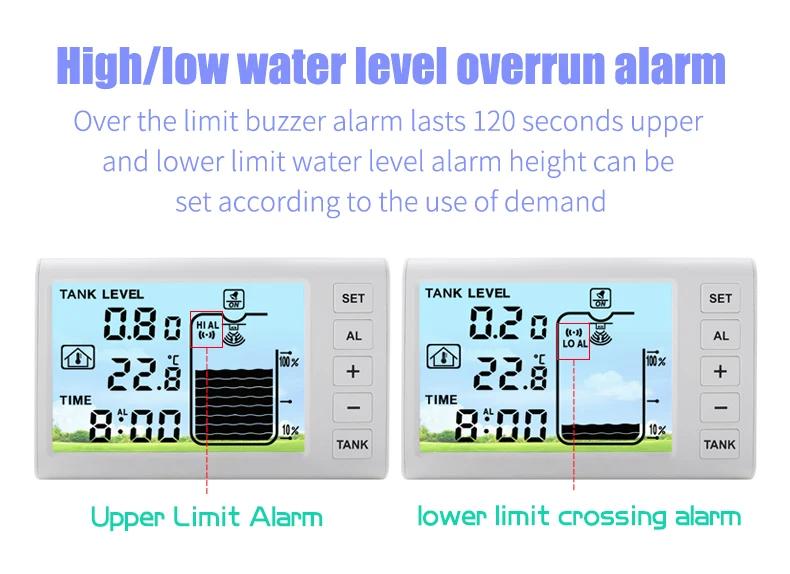

- Low water level icon display
- Simulated display of water level depth on a 10 element LCD bar chart

Specifications:
- Model: TS-FT005
- Material: ABS
- Color: White
- Power supply method:
  Receiver: 3 x AAA battery (not included)/Type-C power cable

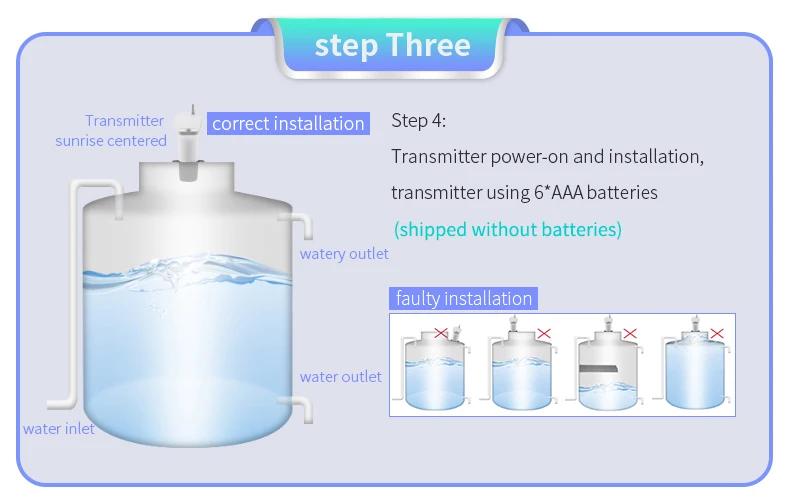

  Transmitter: 6 x AAA battery (not included)
- Receiver weight: 161g
- Receiver size: 13.5 x 2.6 x 8.4cm
- Transmitter weight: 137g
- Transmitter Size: 6.8 x 10.9 x 16.7cm

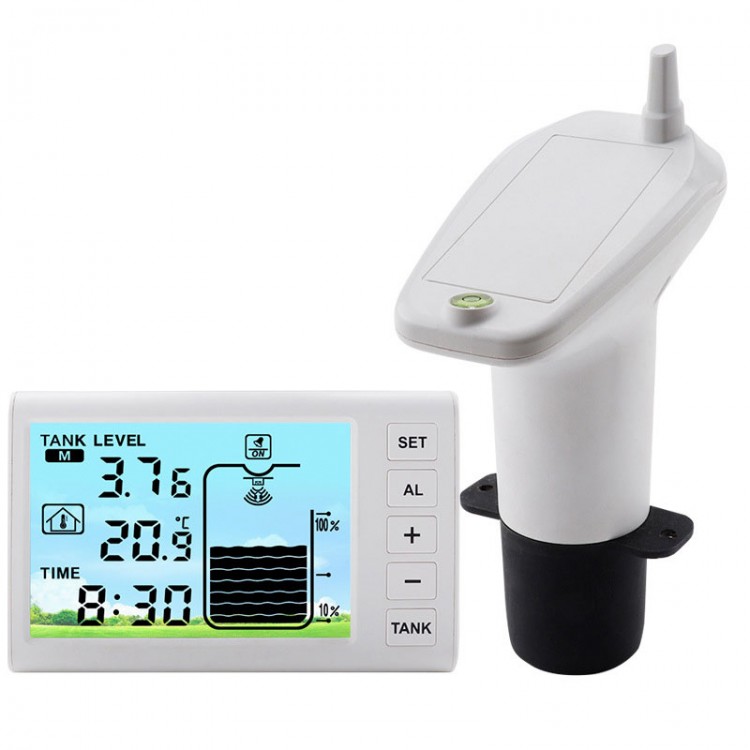

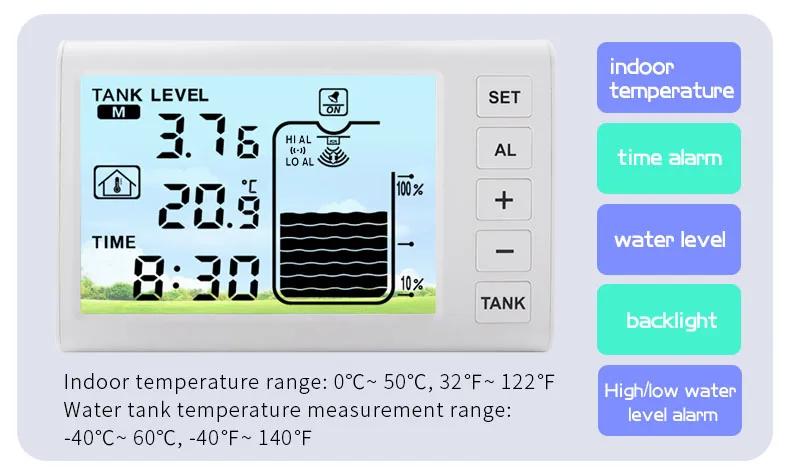

Receiver:
- Indoor temperature range: 0℃ ~ 50℃, -32℉ ~ 122℉
- Resolution: 0.1℃
- Accuracy: ±1℃
- Water tank temperature range: -40℃ ~ 60℃, -40℉ ~ 140℉
- Alarm duration: 120 seconds

Transmitter:
- Temperature resolution: 0.1℃
- Accuracy: ±1℃
- Water level resolution: 0.01m
- Accuracy: ±0.05m
- Water level measurement range: 1 ~ 5m

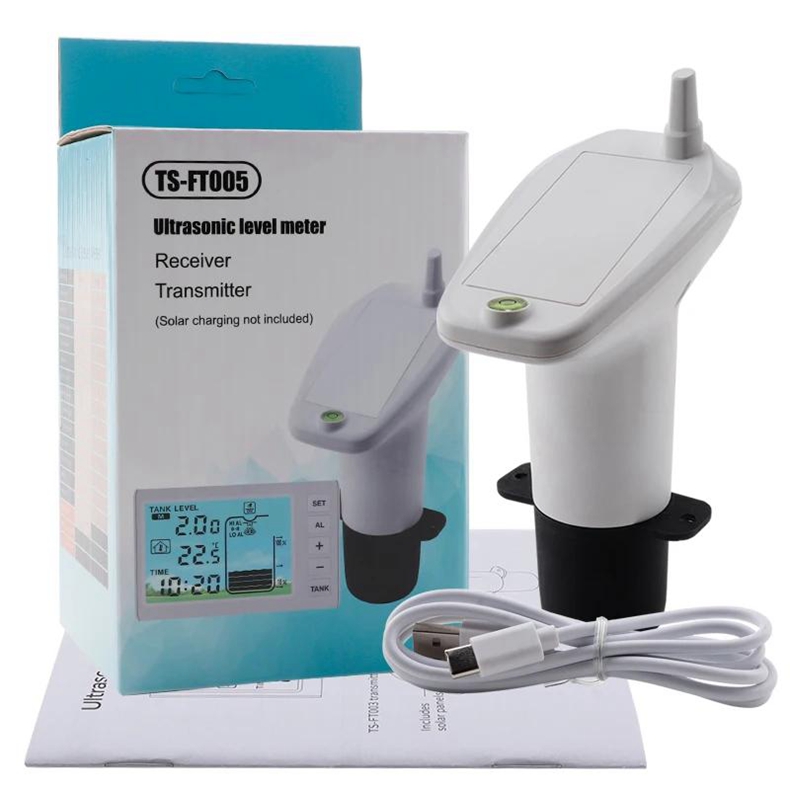

Package Included:
- 1 x Receiver
- 1 x Transmitter
- 2 x Installation Screws
- 1 x Type-C Cable
- 1 x User Manual
