Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $122.98 | $120.47 | $116.71 | $111.69 | Contact US |

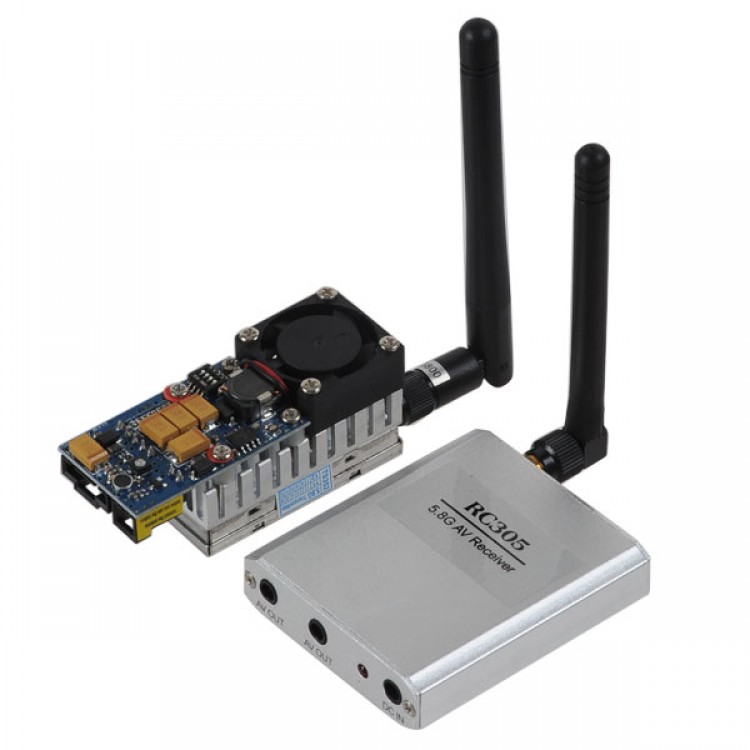

TS352+RC305 FPV 5.8G 500mW AV A/V Transmitting/ 8 Channels Receiving System+9dbi Antenna
Specifications:
- 5.8G 500MW power wireless AV transmitter and sender
- 5km transmitting distance on open area
- transmitting frequency: 5725-5865MHz; 8channels
- transmitting power: 27dBm/500mW
- transmitting distance:>5000metres
- frequency control:built-in frequency and phase lock loop
- AV input:analog AV signal input
- power supply voltage:6.5-15V
- supply current:600mA
- dimension: 68*26*28mm
RC305
- receiving frequency:5725-5865MHz; 8channels
- receiving sensitivity:-90dBm
- frequency control:built-in frequency and phase lock loop
- double lines AV output:analog AV signal output
-antenna connector:SMA(Inside the needle)
- power supply voltage: 6.5-15V
- supply current: 150mA
- dimension: 61*52*13mm(aluminium alloy extrusion profiles)
Applications
- Rc Hobbies
- Remote control aircraft
- Remote spacecraft
- Remote control toys
