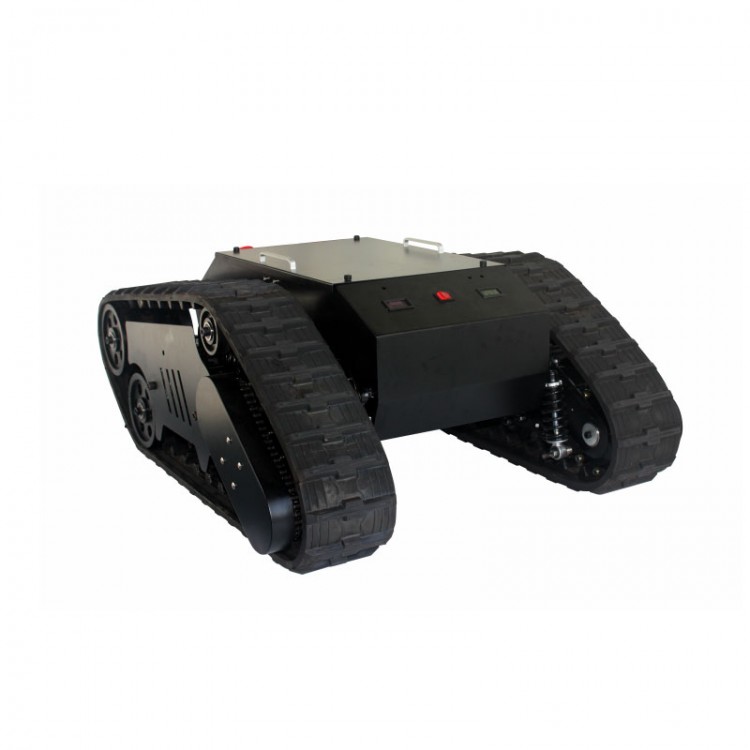

TS5.0 Assembled Field Tank Chassis Load Capacity 100KG+ w/ Controller For ROS Patrol Fire Fighting

TS5.0 Assembled Field Tank Chassis Load Capacity 100KG+ w/ Controller For ROS Patrol Fire Fighting

Specifications:
- Name: TS5.0 heavyweight tank chassis
- Dimensions: 1000mm x 810mm x 410mm/39.4 x 31.9 x 16.1" (LxWxH)
- Cockpit size: 430/245mm x 345mm x 110mm / 16.9/9.6 x 13.6 x 4.3"(LxWxH)
- Tank net weight: about 100kg
- Operating load: 100kg/220.5 LB (increasing motor power, load can be increased)
- Operating speed: 0-1m/s (according to the motor speed and voltage)
- Tank motor: Brushless DC motor
- Motor model: 48V 750W brushless DC motor
- Rated power: 780W*2 (default configuration). Other power can be customized according to demand
- Rated voltage: 48V (default configuration). Other voltages can be customized according to requirements
- Rated current: starting current is 30A; running current is 20A
- Track width: 150mm/5.9"
- Ground clearance: about 70cm/27.6"
- Track material: high-quality rubber track with fiber embedded
- Body material: steel
- Surface treatment: electrostatic paint
- Maximum climbing: 35°
- Battery life: about 2 hours (default configuration), related to the power supply battery. Can be customized according to needs
- Maximum obstacle crossing: 200mm/7.9"
- Suspension design: 6 groups of independent suspension shock absorbers
- Control system: 2.4Ghz remote control + stm32 main control board + brushless motor driver, etc. (support CAN, serial communication, ROS robot development)
- Power supply system: 48V30Ah lithium battery power supply with overcharge and over-discharge protection, equipped with original charger

Attention:
- The measurement error is about 1cm/0.4".

Package Included:
- 1 x Set of Tank Chassis

Note:
- It has been assembled and debugged. It is installed with controller kit and lithium battery kit, so that you can control it at your fingertips.
