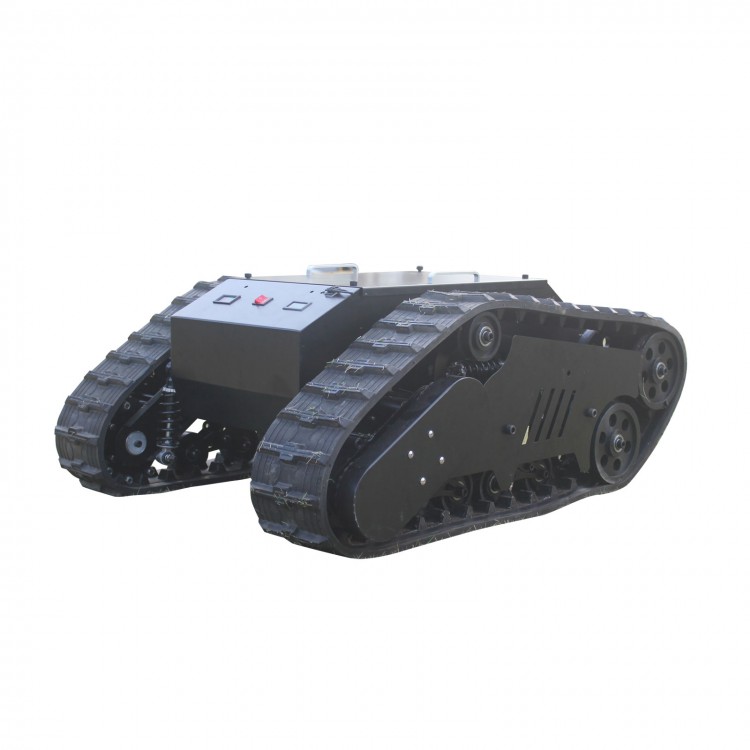

TS5.0 Tank Chassis Obstacle Crossing Crawler Assembled Load 100KG with Controller Kit
Product Parameters:
- Product name: TS5.0 heavy-duty tank chassis
- Chassis Size: 1000 x 700 x 400 mm
- Inner Warehouse Size: 300 x 240 x 600 mm
- Practical Size of Inner Warehouse: 320 x 340 x 170mm (WxLxH)
- Tank Net Weight: about 100kg
- Operating Load Capacity: 100kg
- Operating Speed: 0-1m/s (depending on motor speed and voltage)
- Tank Motor: DC brushless motor
- Motor Model: V 750W brushless DC motor (with Hall sensor)
- Rated Power: 750W*2 (default configuration). Other power can be customized according to demand
- Rated Voltage: 48V (default configuration). Other voltages can be customized according to demand
- Rated Current: starting current is 50A; running current is 30A
- Track Width: 150mm
- Track Material: high-quality rubber track with fiber embedded
- Car Plate Material: steel plate
- Surface Treatment: static paint
- Maximum Climbing: 50°
- Maximum Obstacle Crossing: 400mm
- Suspension Design: 6 sets of independent suspension shock absorbers
- Main Control Unit: Main control for Arduino MEGA 2560
- Relevant control interface is reserved for secondary development, etc.
Package Included:
- 1 x Set of Chassis with Controller Kit
Note:
- The chassis is assembled and has been tested before delivery. Controller kit is installed.
- Battery is not included.
