TS5823 5.8G 5.8GHz 200mW 32CH FPV Wireless AV Transmitter CCD 600 HD Camera RX-LCD5802 5.8G LED Backlight Receiver FPV Monitor

TS5823 5.8G 5.8GHz 200mW 32CH FPV Wireless AV Transmitter CCD 600 HD Camera RX-LCD5802 5.8G LED Backlight Receiver FPV  Monitor


Parameters of TS5823:
- Frequency: 5.6-5.9Ghz
- Voltage input: 7-24V
- Transmitting power: 200MW
- Operating current: /12V 190mA
- Operating temperature: -10-+85
- Video bandwidth: 8M
- Audio encoding: 6.5M
  Antenna form:
- Transmitter: RP-SMA Jack
- Antenna:  RP-SMA plug
- Dimension: 30mm x 20mm x 8mm
- Weight: 7.3g (without antenna)

Parameters of CCD 600 HD Camera:
- Image sensor: color HD CCD
- Image resolution: 720*480
- Frames: 25 , PAL system
- Lens angle: 90 degrees
- Minimum illumination: 2LUX/F1.2
- Voice: no
- Power supply: 7-12V
- Consumption current: 80mA
- Output video amplitude: 1Vp-p
- Output impedance: 75
- Operating temperature: -20-+60 degrees Celsius
- Operating humidity: 0-50%
- Waterproof grade: not waterproof
- Connector: special connector

Specifications of 7inch 5.8G Monitor RX-LCD5802:
- Built in 5.8GHZ true diversity wireless reception to receive the best signal;
- Built in 3 output and 1 way external AV input;
- Built in high capacity polymer lithium battery: 2450mAH/7.4V
- OSD displays working status: RF signal strength indicator; battery charge indicator; RF working channel indicator;
- Automatic search for a key signal;
- Supports Chinese and English menu;
- Size: X 120mm x 50mm 180mm (Note: Sun Sunshade Hood is 28mm)
- Li-Polymer Battery Compacitance: 2450mAH/7.4V
- Working Voltage: DC 7-16V
- Power Consumption: max 650mA/12V(max)
- Battery charging current : 850mA/12V(max)
- Working temperature: -10℃ ~ +65℃

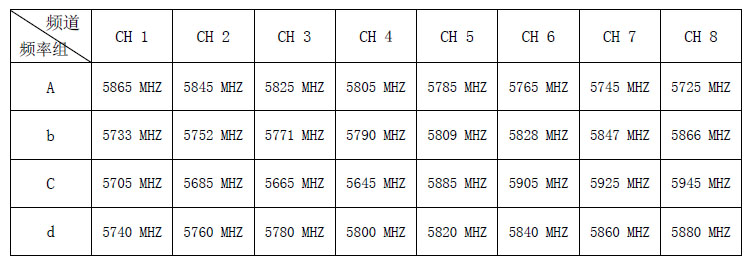

Frequency and channel selection:

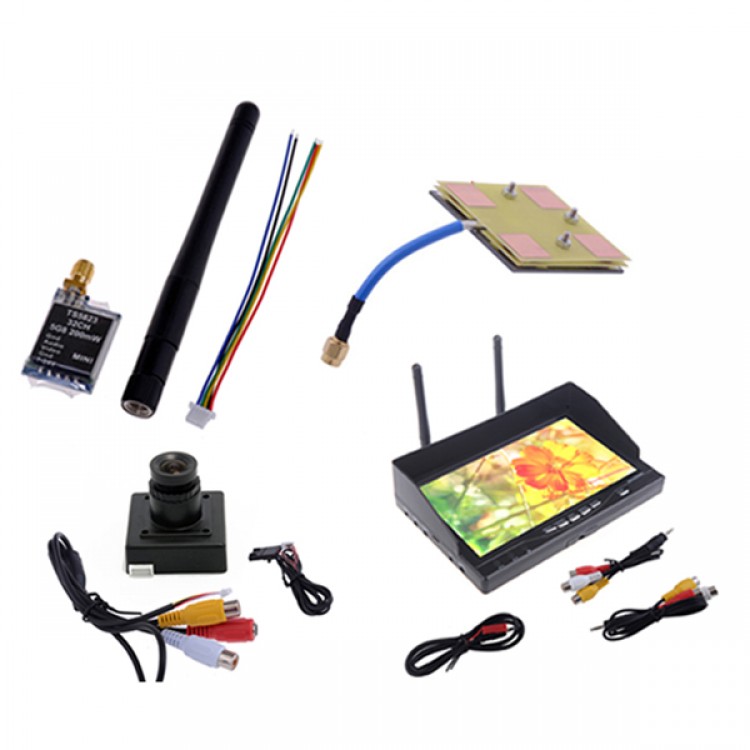

Package included:
- 1 x TS5823+ 211camera+LCD5802
