| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $335.58 | $328.73 | $318.46 | $304.76 | Contact US |
5DOF Low Cost Robot Arm ROS Open Source Robotic Arm (Slave Arm) with XL430-W250-T Servo Motors
$551.16
5DOF Low Cost Robot Arm ROS Open Source Robotic Arm (Master Arm) with XL330-077-T Servo Motors
$457.01
Low Cost Robot Arm ROS Open Source Robotic Arm (5DOF Master Arm + 5DOF Slave Arm) with Servo Motors
$1,005.56

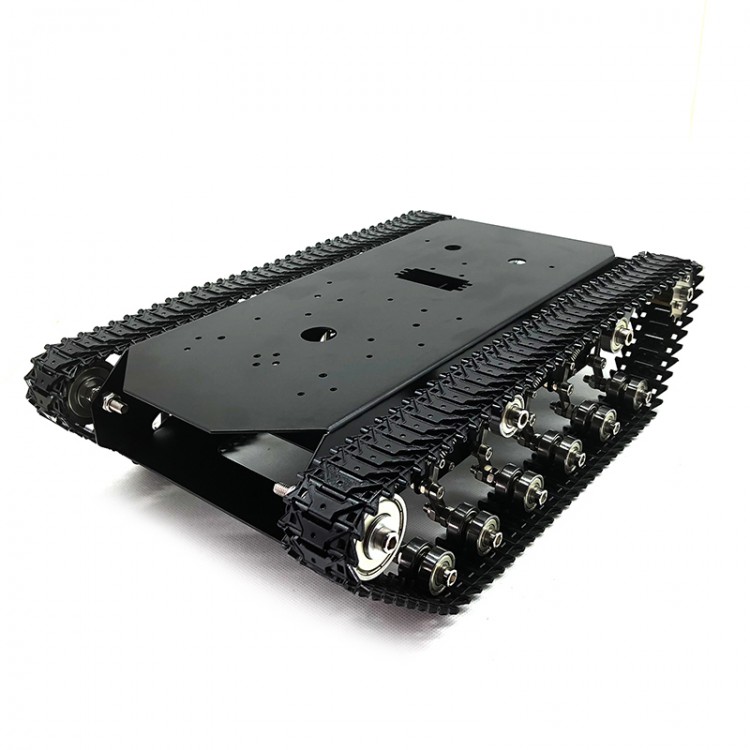

TS700 Tracked Robot Chassis Robot Tank Chassis Metal Track w/ Motor Encoding Disk without Controller
Features:
- TS700 carbon steel shock tank car.
- All carbon steel structure, solid and durable. This product uses carbon steel all-metal material, wear-resistant and durable. Among them, tank car chassis, drive wheels and all are made of stainless steel, and the car chassis is painted with black protective color.
- High horsepower motor, full of power. It adopts high-power 37 DC motor, and the motor speed (5-800 rpm) and voltage (12V/24V) can be selected according to the required load speed.
- Product design: rolling bearing design, stainless steel body, high torque 37 motor, rolling small bearing design, independent shock absorption system, stainless steel drive wheel, black metal tracks.
Product Parameters:
- Name: TS700 shock absorption tank car
- Materials: Carbon steel frame and stainless steel drive wheels, rolling load-bearing wheels
- Color: black (black surface protective layer)
- Track: Zinc alloy (black surface protective coating)
- Track width: 41MM (If disassembly is required, there will be a demonstration of track disassembly)
- Car net weight: 4.1KG
- Product Size: 360*240*100mm (LxWxH)
- Designed load capacity: 10KG (depend on motor torque and voltage, please contact customer service if required)
Package Included:
- 1 x Set of Tank Chassis
Note:
- It is assembled.
- Battery is not included.
- It comes with no controller.
Parameters of 12V 37 Motor with Hall Sensor:
