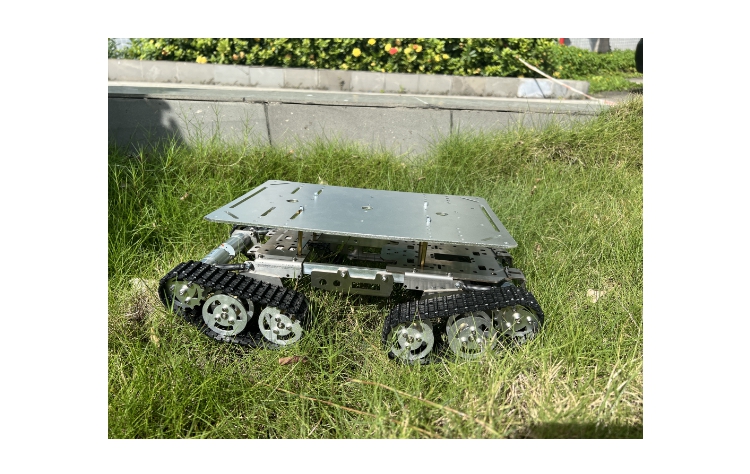

TS800S Two-Tier Tank Chassis Obstacle Crossing Robot Car Chassis Unassembled with RC Controller Kit
Features:
- TS800S tracked tank chassis
- Smart metal tank chassis car model
- Durable motor: Metal gears; support forward and reverse rotation; adjustable Speed
Tracked Tank Chassis:
- Material: stainless steel
- Track material: Plastic
- Track width: 41mm/1.6"
- Motors: 4pcs
- Working voltage: 12V
- Load capacity: 12Kg/26.5Lb
Motor Parameters:
- Model: HM-GM-25-370 12V 330rpm DC gear motor
- Rated voltage: DC12V
- Original speed: 1200rpm
- Reducer reduction ratio: 1:34
- No-load speed: 330rpm/0.24A
- Maximum efficiency point: load 4kg·cm/235rpm/2.5W/0.58A
- Maximum power point: load 7kg·cm/215rpm/3.1W/0.65A
- Maximum blocking force: 13kg·cm

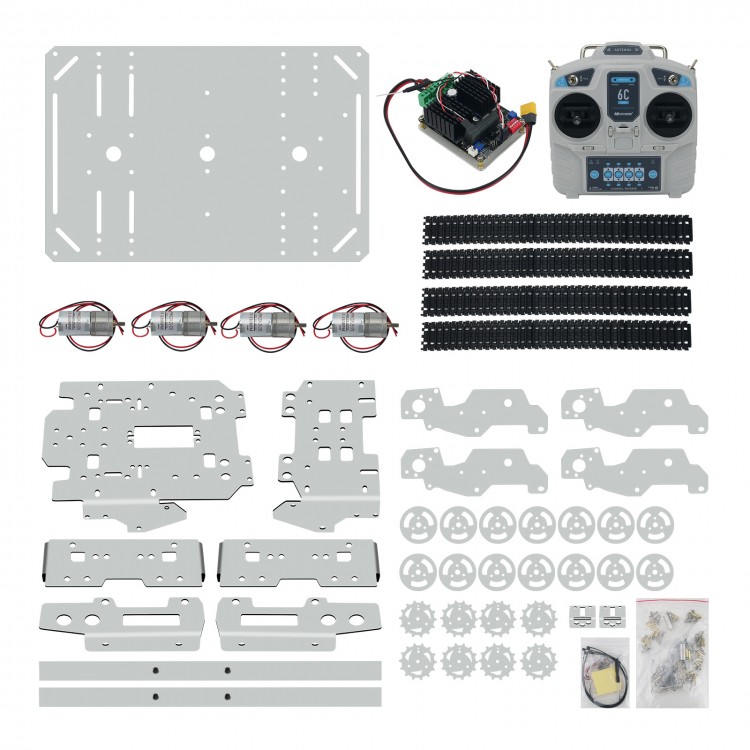

Package Included:
- 14 x Metal structural parts

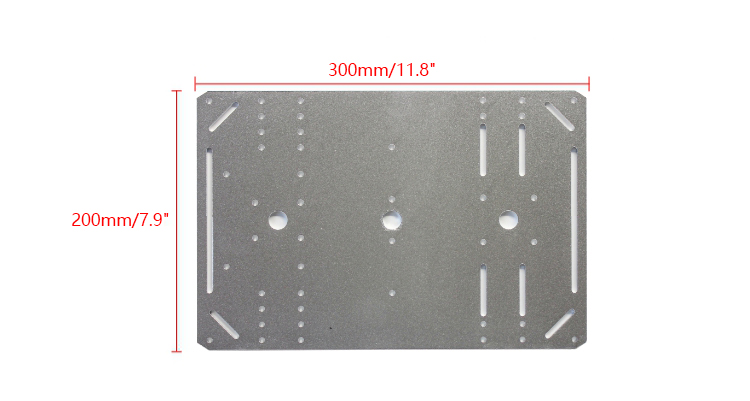

- 1 x Top plate
- 8 x Load bearing wheels
- 4 x Driving wheels
- 4 x Tracks
- 4 x Motors

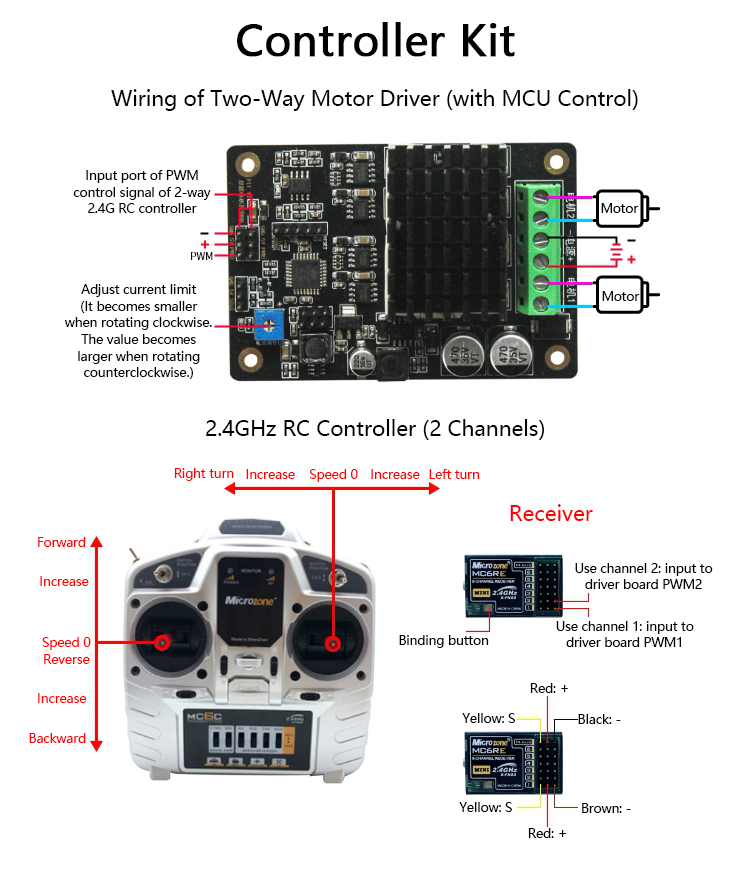

- 1 x 2.4G RC controller kit
- 1 x Charger
- 1 x Screw parts kit
Note:
- Due to manual measurement, please allow a slight error of 1-10mm/0.04-0.4". Thank you for your understanding!
- Assembling is needed.
- Lithium battery is not included.
