TS802D + AMS-MVP300 Linsn LED Control Card and Full Color LED Video Processor for Video Wall Screen
TS802D LED Control Card:
Advantages:
1) One DVI video signal input;
2) One audio signal input;
3) Sending card is set by USB; can be cascaded to drive a larger screen, up to 4 cards cascaded;
4) Two network outputs; single port supports up to 655360 pixels;
5) Supports adjusting brightness manually (requires working with outer box); three scales can be set: 16-grade, 32-grade and 64-grade;
6) Supports 60Hz and 30Hz output modes.
Features:
1. The TS802D sending card includes full-color sending card TS802 and dual-color sending card DS802. Full-color sending card supports full-color, dual-color and single color led displays. Dual-color sending card supports dual-color and single color led displays.
2. The LED display sending card supports up to 2048*640.
3. Supporting display mode: 640*480, 800*600, 1024*768, 1280*768, 1280*800, 1280*1024, 1440*900, 1440*1080, 1600*1200, 1680*1050, 1728*1296, 1920*1080, 1920*1200, 2048*1152 and 2048*1280.
4. Audio Transmission Function: The LED control card sends audio data using a network cable, and function board outputs audio signals to the display. Double 24bit 64KHZ hi-fi digital signal to analog signal or analog signal to digital signal, thus your display can have a perfect video effect.
5. Cascade function: Through the DIP switch on the LED sending card, several TS802D sending cards can be easily cascaded to support a super large LED display.
6. Sending card U/D port flexibility for carrying half width or half height. For example, TS802D can max support 1280*1024 with two ports. A single network output port supports 1280*512 or 640*1024
7. Sending card rotation function: In sender settings, the sending card has 0, 90, 180, 270 degree rotation function.

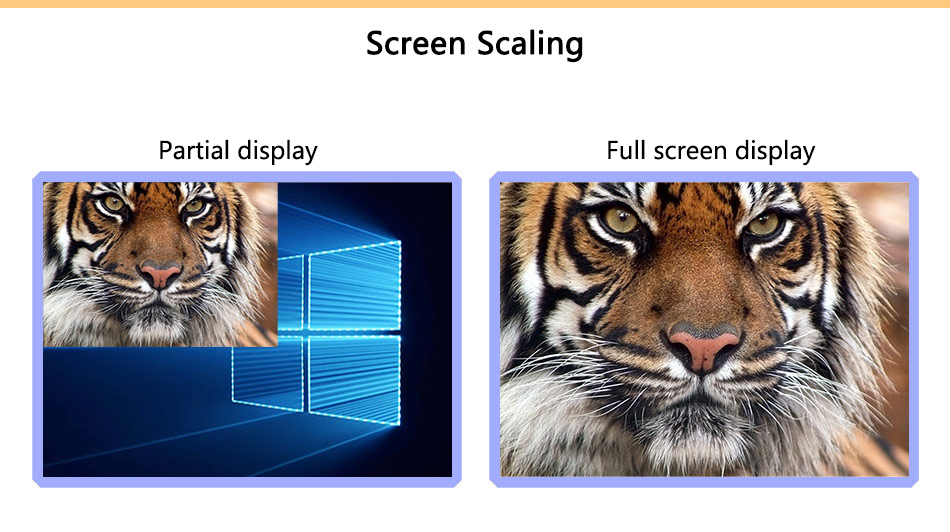

8. Sending card zoom in/out function: In sender settings, the ratio of width and height can be set to realize zoom in or zoom out.
9. Supporting 10-bit colors: The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors. The eighth supports 10-bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to work with our video processors using the 30 bits TTL.
10. Multi-display synchronous and combination functions. One sending card can control multi-displays, realizing display combination, synchronous display, and independent playing.
AMS-MVP300 LED Video Processor:
Features:
- Seamlessly switch any channel

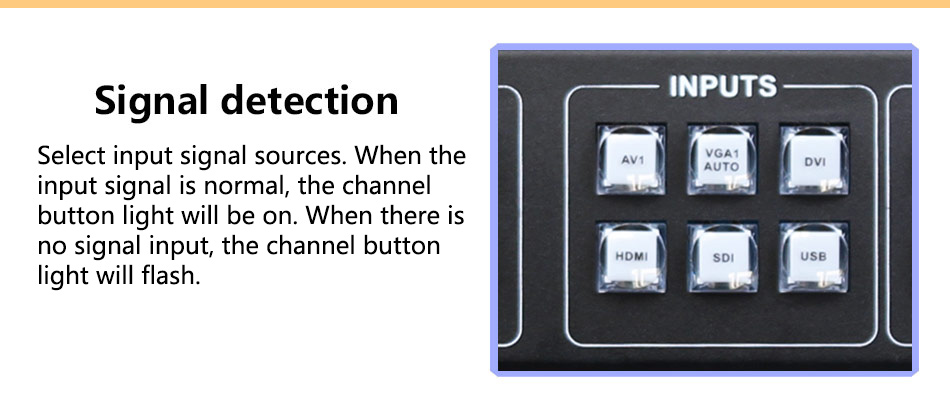

- Signal detection function
- Maximum output resolution: 1920*1080 at 60Hz

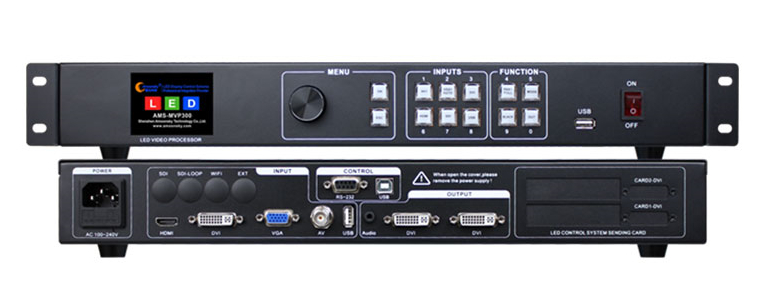

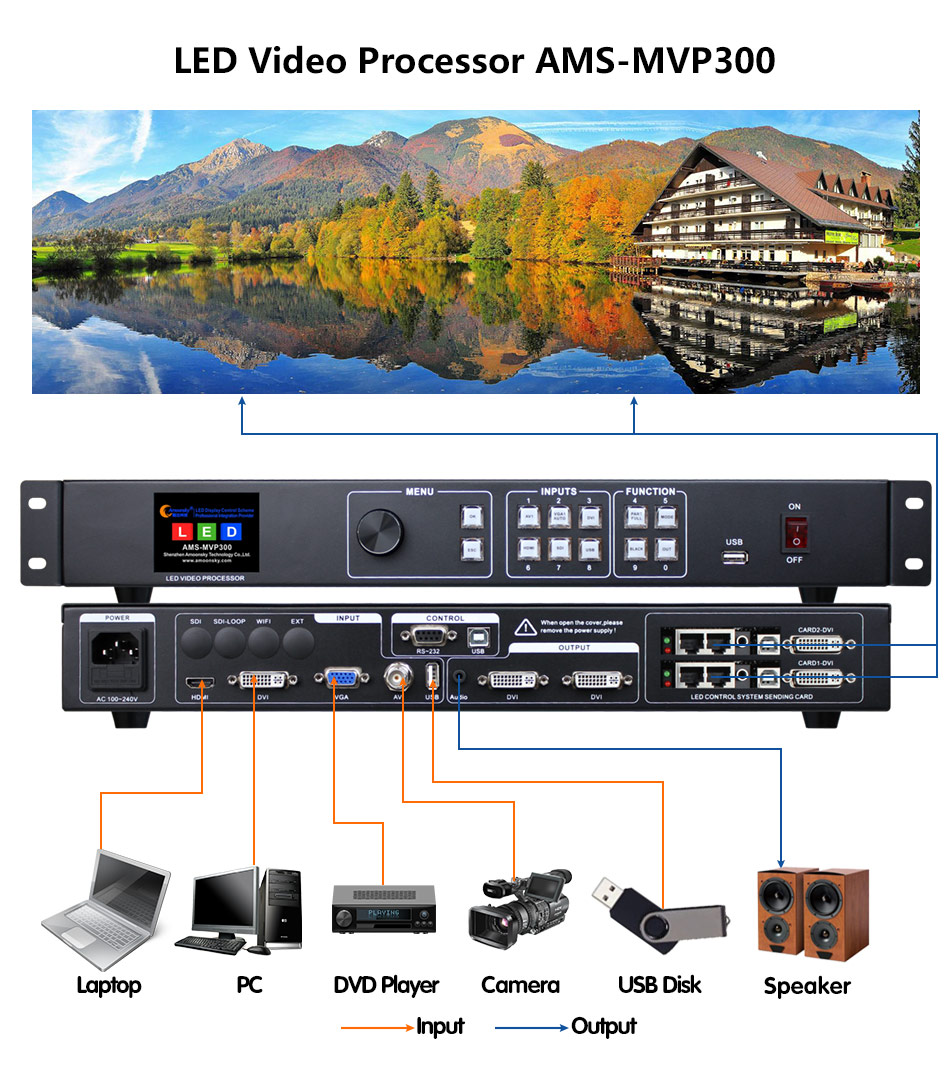

- 6-channel digital-analog video input: 1 HDMI-compatible, 1 DVI, 1 VGA, 1 AV and 1 USB. If you need to add SDI port, WIFI control and remote control, please contact us or you can search
- 3-channel digital-analog video output: 2 DVI
- Quick knob adjustment settings
- Support audio output

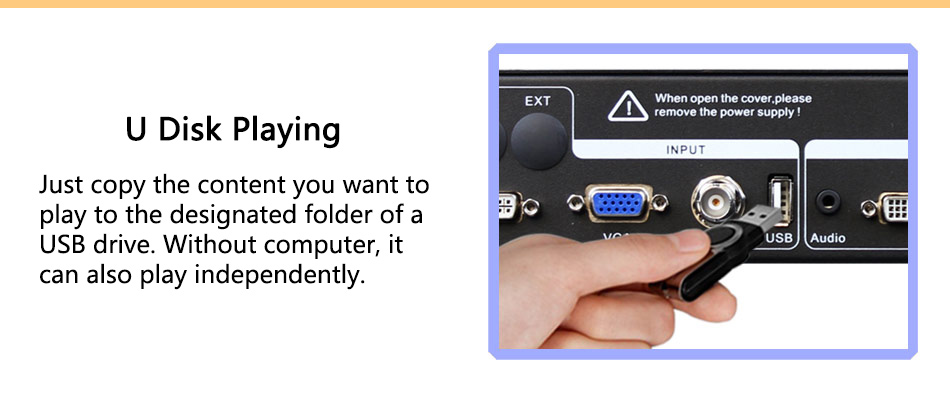

- Support U disk playing
- Support SDI input and loop out
- Black/Freeze
- Key lock function
- 10 sets of preset templates can be saved and called

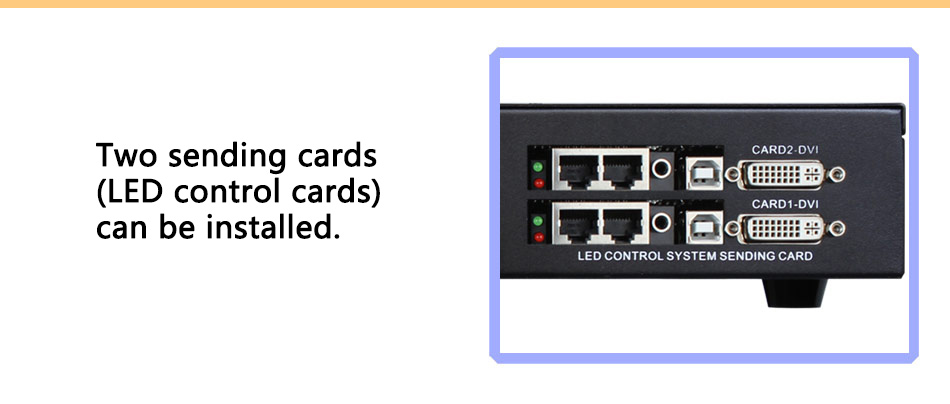

- Support several brand cards such as for Linsn ts802d, Nova msd300, Colorlight S2, etc.
Functions:
- Multiple Video Input: AMS-MVP300 uses 5 channels of video input, including 1 channel composite video AV (CVBS), 1 channel VGA, 1 channel DVI, 1 channel HDMI-compatible and 1 channel USB. Basically, the needs for civil and industrial use have been covered. Seamless switching of all video input.
- Video Output Interface: It has 2 DVI video outputs. The 2 videos programmed output to LED sending cards or displays.
- Seamless Switching Of Any Channel: The LED video processor can also seamlessly switch between any channels at a fast speed.
- Output Resolution: It has designed a number of practical output resolutions for users. The widest is 1920 points and the highest is 1080 points. Applicable to a variety of dot matrix displays. Up to 10 output resolutions are available for user selection and can be adjusted point-to-point output.

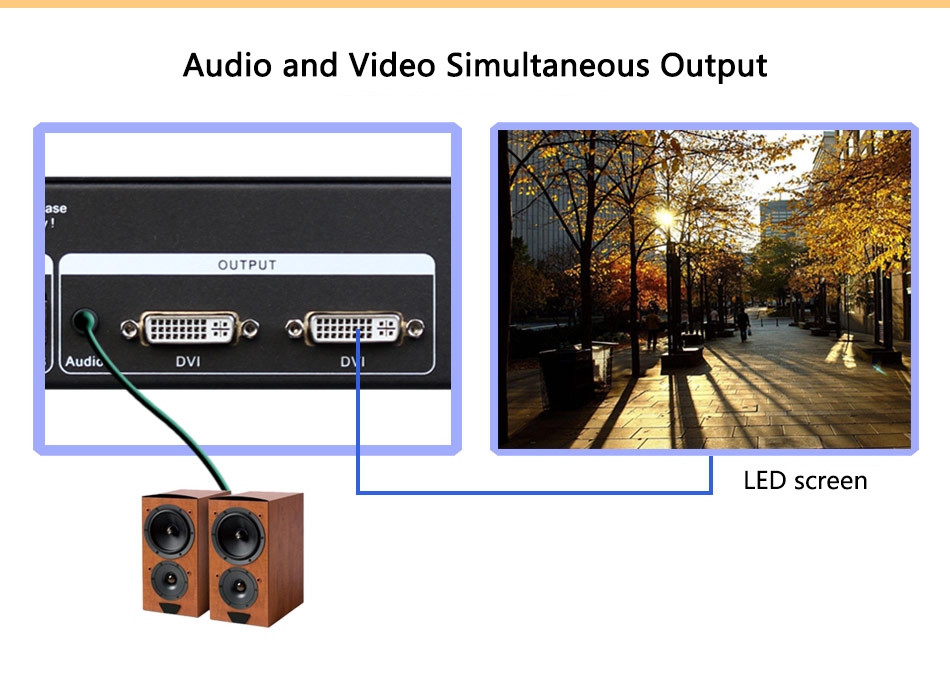

- Support Audio Video Sync Output: It has 1 channel audio output and audio and video synchronized output.
- One Key Black Or Freeze: It has BLACK features. After setting, press the BLACK button directly to achieve black screen or screen freeze.

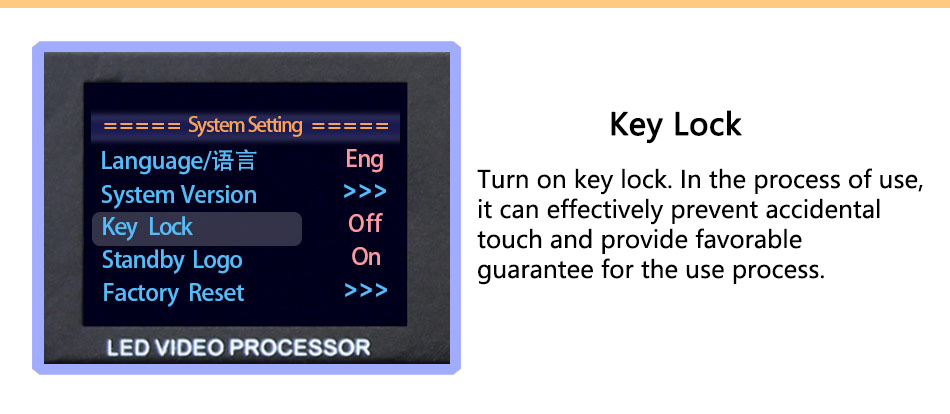

- Key Lock: Turn on the key lock. In the process of use, it can effectively prevent accidental touch and provide favorable guarantee for the use process.
- Mode Saved And Recalled: It adopts 10 sets of user presets. Each set of user presets can store all user setting parameters, and it can realize parameter backup and on-site calling functions.
- Unique Brightness Adjustment Technology: It has a built-in unique brightness adjustment function, which solves the problem of loss of layering after reducing the brightness, making the color reproduction more realistic.
- Real-time Storage Technology: The ready-to-use technology solves the user's cumbersome setup and manual storage process, that is, the user does not need to perform manual save operation after adjusting or adjusting parameters. It can automatically store the user parameters in the EEPROM. Even after the power is turned off, the previous parameters remain in the device.
- ACC ACM Image Filtering: It uses ACC and ACM image filtering engines. When processing each color, the nonlinear filtering effect minimizes image loss and restores color realism.

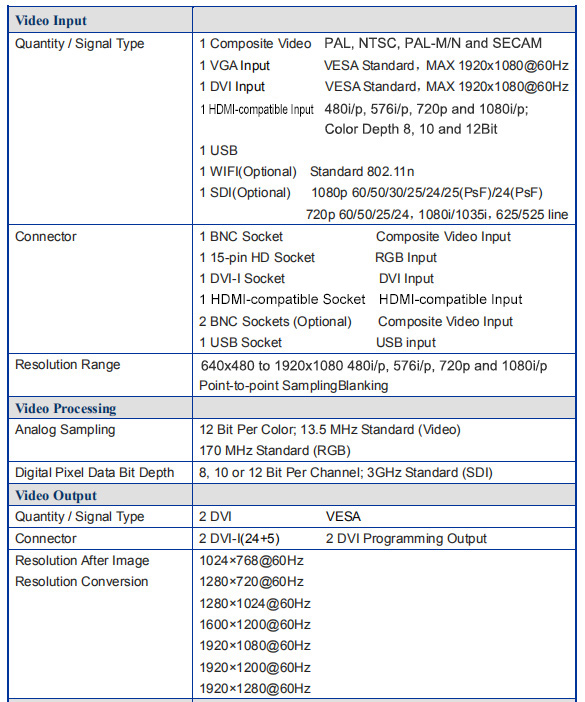

Performance Parameters:
- Resolution after scaling conversion: 1024x768 at 60Hz; 1280x720 at 60Hz; 1280x1024 at 60Hz; 1600x1200 at 60Hz; 1920x1080 at 60Hz
- Power supply: built-in 100~240V AC 50~60Hz (Taiwan Meanwell Power supply)

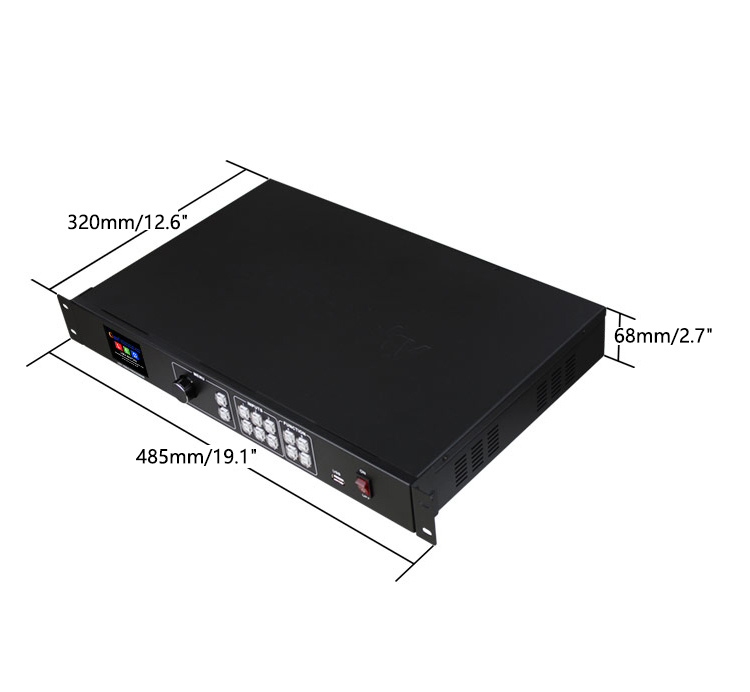

- Size: 485 x 320 x 68mm/19.1 x 12.6 x 2.7" (LxWxH)
- Product weight: 3.0kg/6.6lb
- All rated voltages±10% on average
Package Included:

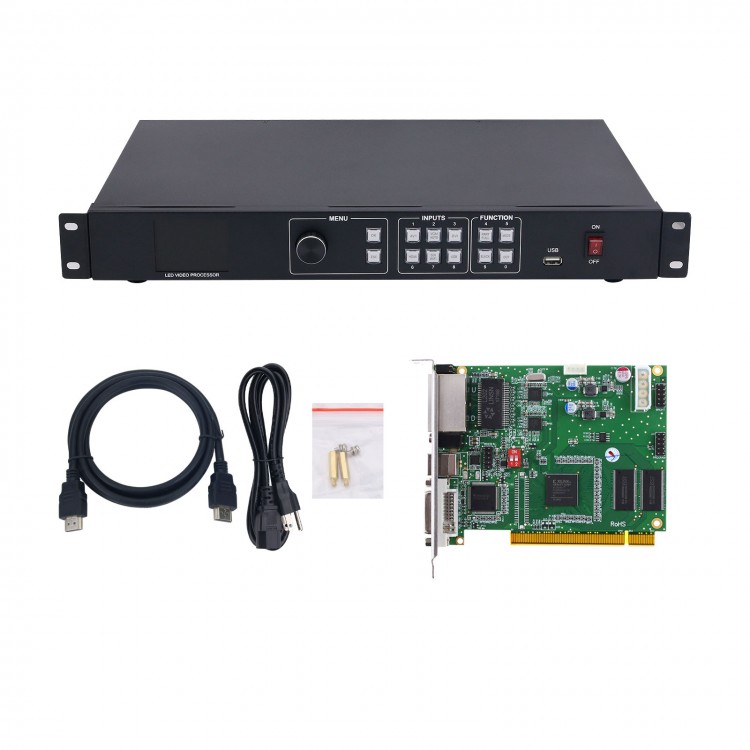

- 1 x Set of TS802D + AMS-MVP300
Packaging Details:
- Weight: 6.2kg
