TSD3-10KVA Automatic Voltage Regulator 220V Household High Power Socket Air-conditioner Ultra-low Voltage Regulator

TSD3-10KVA Automatic Voltage Regulator 220V Household High Power Socket Air-conditioner Ultra-low Voltage Regulator

How to choose the correct model?

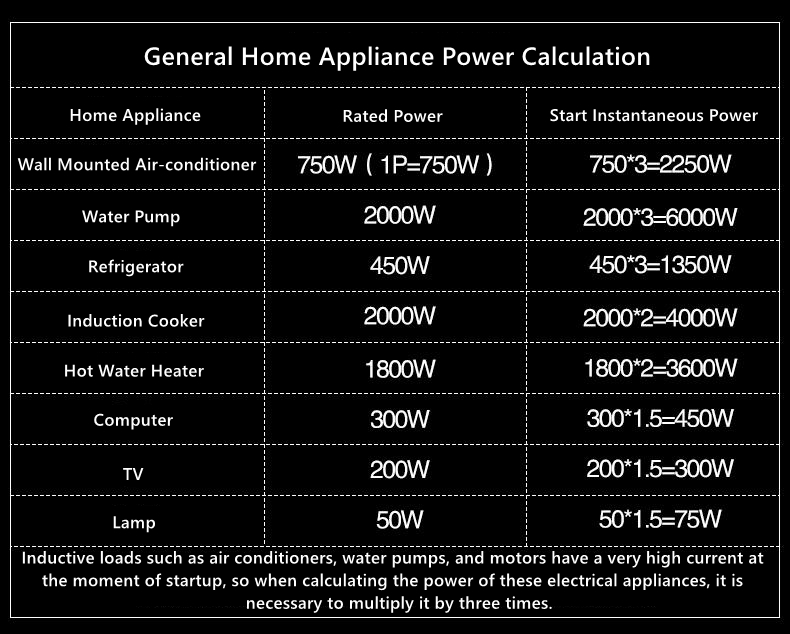

- Firstly, it depends on the type of electrical equipment you are using. Generally, the load is not purely resistive. Therefore, in actual selection, it is necessary to choose a stable voltage power supply reasonably based on the specific situation of the rated power, power factor, and load type of the electrical equipment. The output power should have an appropriate margin, especially when selecting impulse loads, the margin should be larger.
- Pure load devices such as incandescent lamps, resistance wires, electric furnaces, etc. should have a voltage regulator power that is 1.5 times or 2 times the power of the load equipment. For example, if your electric furnace is around 250W, please choose a 500W voltage regulator.
- Inductive and capacitive loads such as fluorescent lamps, fans, motors, water pumps, air conditioners, refrigerators, etc. The power of the voltage regulator should be three times that of the load equipment. For example, if the motor is 1000W, please choose a 3000W voltage regulator.
- When selecting a high inductive and capacitive load environment, the starting current of the load should be considered to be particularly high (5-8 times the rated current). Please choose a voltage regulator with a load power of more than 3 times.

Features:
- Large LCD screen: If the current in the circuit is too high, the copper plate of the relay will automatically pop open. At this time, the voltage regulator is in an open circuit state with no voltage output, which can better protect electrical appliances.

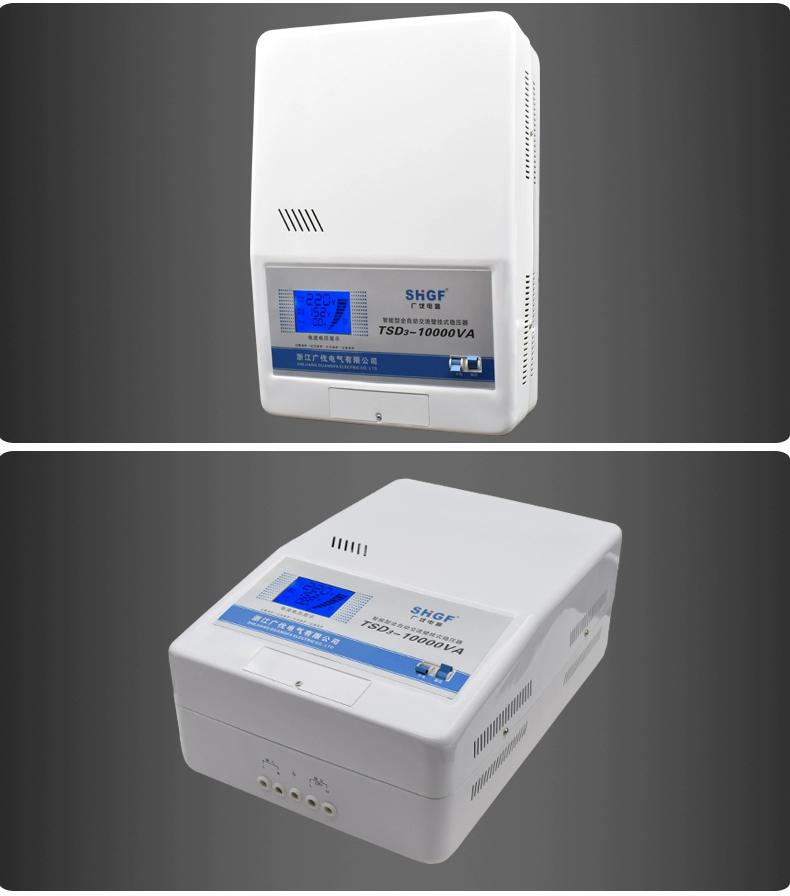

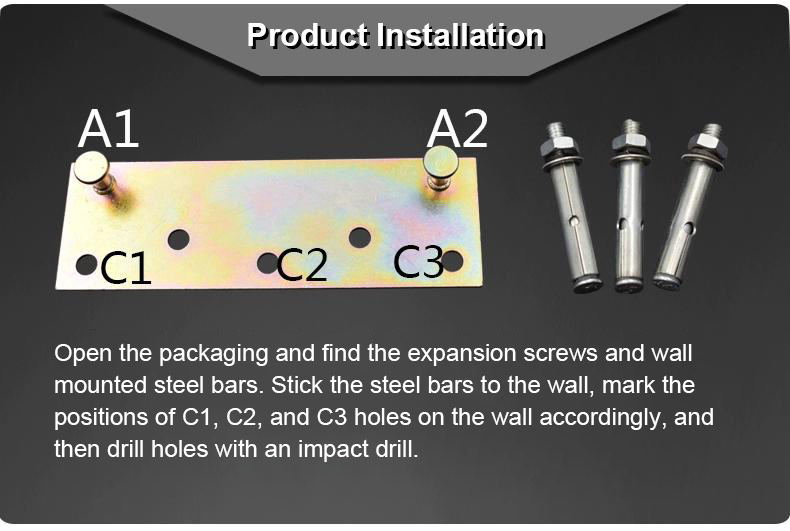

- Multi functional: The TSD3-10KVA is not only a wall mounted voltage regulator, but also has four rubber pads on the back, specifically designed for horizontal placement. Therefore, it can be placed flat or wall mounted, making it very convenient and suitable for various home environments.

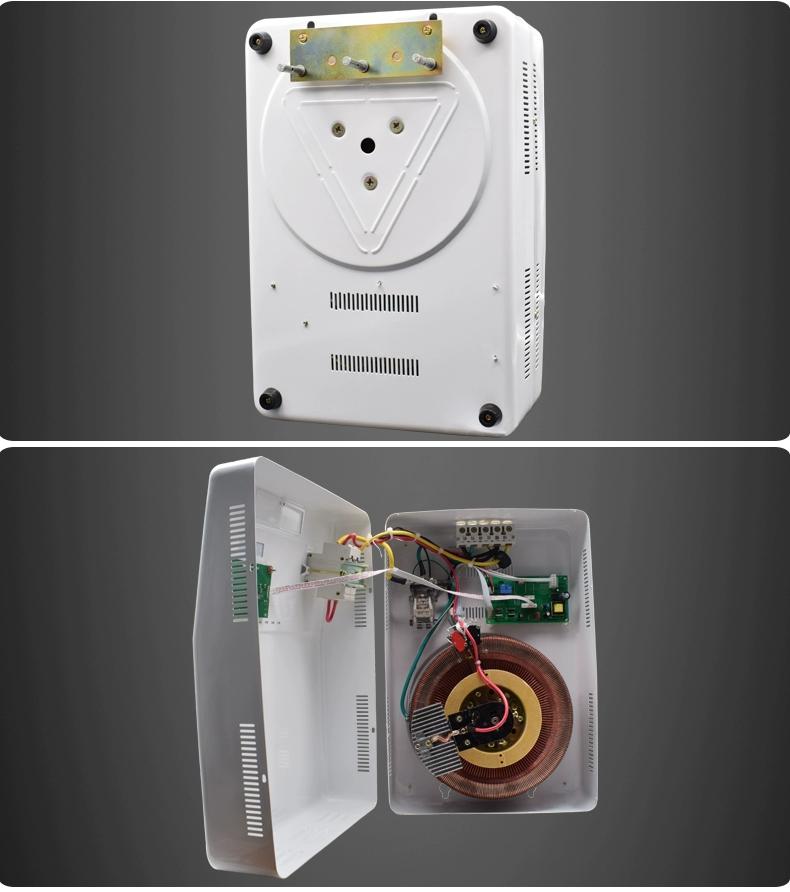

- Pure copper coil: High quality pure copper wire coils can withstand the test of time, withstand greater current shocks and voltage fluctuations, and have excellent heat dissipation effect.
- Computer control board: Fully automatic and high-precision program control outputs precise voltage, taking care of your home appliances 24 hours a day.
- Imported carbon brush: TSD3-10K adopts imported 1017 enlarged carbon brush, with timely and accurate linkage process pressure adjustment, and response time less than 0.5S.

Specification:
- Model: TSD3-10000VA
- Input voltage: 90V - 260V
- Output voltage: 220V +/- 3%
- Frequency: 50Hz/60Hz
- Over-voltage protection: 246V +/- 4V
- Product weight: 22kg
- Regulation time: < 1s (at the input voltage changes by 10%)
- Environment temperature: -10℃ ~ 40℃
- Temperature rise: < 60℃
- Waveform distortion: without additional waveform distortion
- Load power factor: 0.8
- Dielectric strength: 1500V/min
- Insulation resistance: single phase > 5Mohms

Precaution:

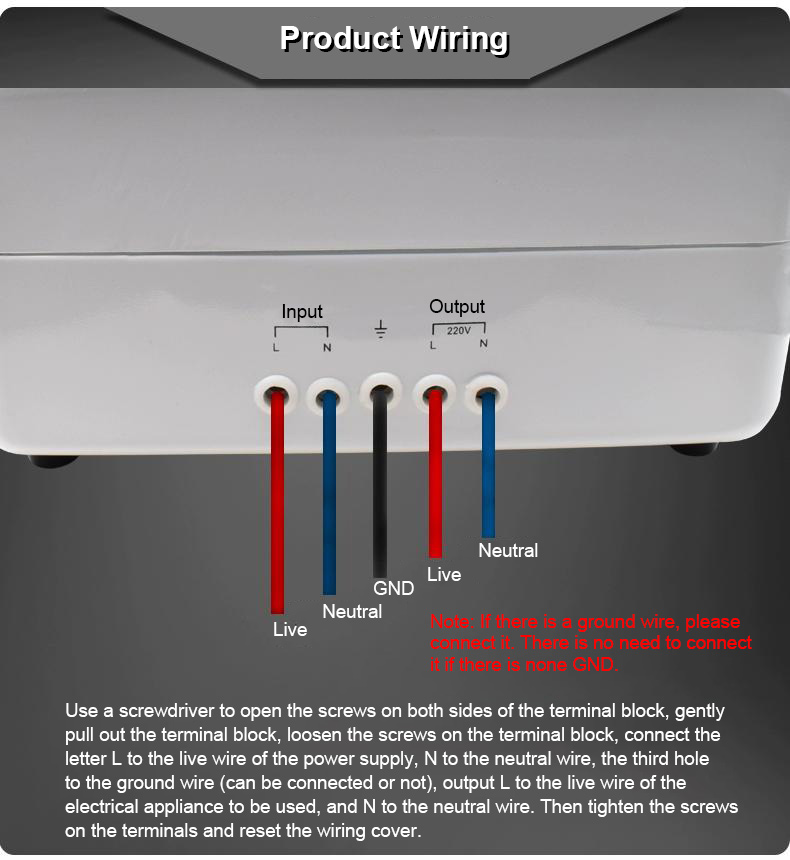

- Connect the voltage regulator input to the distribution board and install a fuse that meets the power protection rate of this instrument on the user's distribution board to ensure electrical safety.
- Connect the power supply of the electrical equipment to the output terminal of this instrument, and ensure that the rated input voltage of the electrical equipment is consistent with the output of the voltage regulator. Do not connect it incorrectly.
- Turn on the power switch of the voltage regulator first, and the working indicator light will be on. Observe whether the indicated value of the voltmeter is normal. When the output voltage is normal, turn on the power switch of the electrical equipment. This regulator can automatically adjust the voltage and supply power normally.
- When the electrical equipment is not used for a long time, please turn off the power switch of the electrical equipment to reduce power consumption and extend the service life of the voltage regulator.
- When selecting equipment with electric motors such as refrigerators, air conditioners, and water pumps, a voltage regulator with a capacity of three times or more should be selected to prevent the starting current of the equipment from exceeding the current of the voltage regulator fuse or overcurrent protection circuit breaker. The current may cause the voltage regulator fuse to melt, the circuit breaker to trip, or the voltage drop to be too large to work.

Package Included:
- 1 x Voltage Regulator
