TUF-2000B High Performance Ultrasonic Flow Meter with TM-1 DN50-700mm Probe for Industrial Online Flow Measurement of Liquid

TUF-2000B High Performance Ultrasonic Flow Meter with TM-1 DN50-700mm Probe for Industrial Online Flow Measurement of Liquid

Technical Features:
- Measuring precision:
  Flow meter: better than ±1.0%
  Water meter: better than ±2.0%
  Heat meter: meet EN1434 standard (European standard)
- Repetitiveness:
  Flow meter: better than ±0
  Heat meter: better than ±0.5%
- Fluid direction: positive and negative two-way metering, which can measure positive, negative and net cumulative flow/heat
- Maximum velocity: 64m/s (velocity resolution: 0.001m/s)
- Working power: 85~264VAC/8~36VDC
- Measuring period: 500ms (twice a second, it can collect 128 groups of data per cycle)
- Measuring medium: water, sewage, sea water, alcohol, various oils and other single, uniform and stable liquids that can conduct sound waves
- Applicable pipes: carbon steel, stainless steel, cast iron, cement, copper, PVC, aluminum and other uniform and dense pipes (they are allowed to have liner)
- Fluid temperature: 0 ~ 160℃
- Fluid turbidity: ≤20000ppm with low bubble content
- Output port: output optional 4 ~ 20mA, Pulse, OCI, frequency, RS485
- Input port: three channel 4 ~ 20mA analog input, two channel platinum resistance input optional
- Other functions: accumulator of day, month and year; power on and off management function; working state self-diagnosis function; software upgrade through code, etc.
- Protection level: sensor IP68, F4 host IP6, other host IP65
- Explosion-proof level: Exd II BT4(TDS-100F2/TUF2000SD)
- Communication protocol: MODBUS protocol; M-BUS protocol, FUJI expansion protocol and other protocols
- Signal cable: SEYV75-2 type special shielded cable can be extended to 500 meters. When wiring, the cable should be added with metal cover to increase anti-interference, and note that it can not be paralleled with the high-voltage cable, and try to avoid interference such as deformers.
- Other functions: Automatic memory of positive/negative/net cumulative flow in the former 512 days, former 128 months and former 10 years. Automatically memorize the time and flow of the former 30 times of power-on and power-off and can realize automatic or manual addition of flow; MODBUS protocol can be read out, batch (quantitative) controller can be programmed, new fault self-diagnosis function can be realized, and software upgrade can be realized through the code file sent by Email.

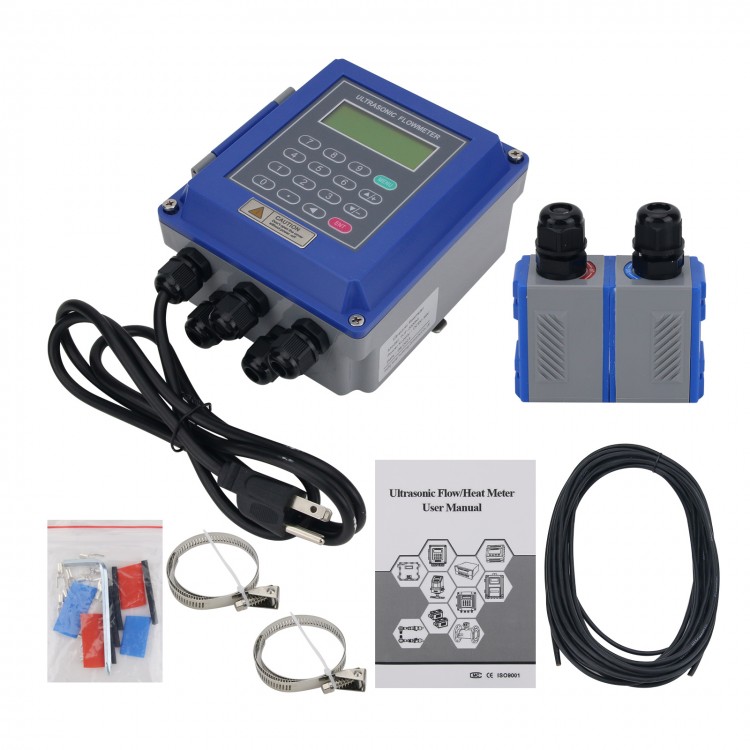

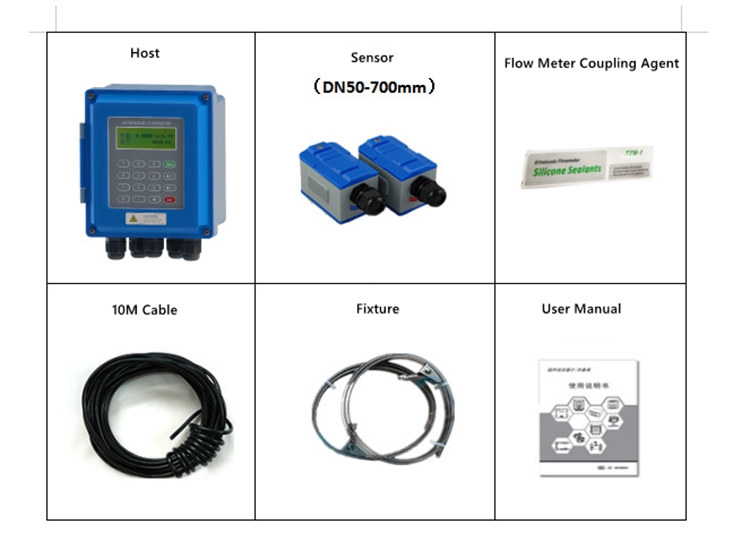

Package Included:
- 1 x Host
- 2 x DN50-700mm Sensor
- 1 x Flow Meter Coupling Agent
- 1 x 10m Cable
- 1 x Fixture
- 1 x User Manual
