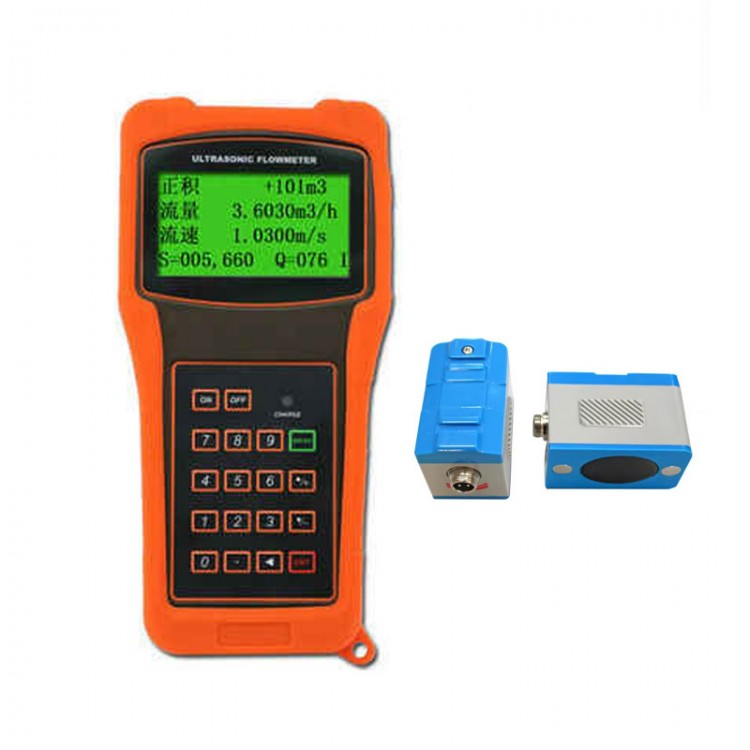

TUF-2000H Portable Handheld Smart Ultrasonic Liquid Flow Meter with TL-1 Small Transducer DN300-6000mm Caliber
Description:
- The handheld ultrasonic flow meter realizes non-contact measurement of liquid flow rate. Installing the sensor on the outer wall of the pipeline can complete the measurement of flow rate. It has the characteristics of small size, easy portability, and accurate measurement.
- It is widely used in industries such as tap water, heating, water conservancy, metallurgy, chemical industry, machinery, energy, etc. It can be used for production monitoring, flow verification, temporary testing, flow inspection, water meter balance debugging, heat network balance debugging, and energy-saving monitoring. It is an essential tool for timely flow detection.
Specification:
- Linearity: 0.5%
- Repeatability: 0.2%
- Measurement accuracy: ±1% of displayed value, flow speed > 0.2m/s
- Response time: 0 - 999s
- Flow speed range: ±32m/s
- Measuring caliber: 300 - 6000mm
- Accumulator: 7 digits positive, negative and net accumulator
- Liquid type: various single and uniform liquids capable of conducting ultrasonic waves
- Safety: setting value lock, you need to unlock it when modifying data
- Display: 4 x 8 Chinese or 4 x 16 English
- Communication interface: RS232, baud rate of 75-57600, compatible with Fuji ultrasonic liquid flow meter and other products.
- Sensor cable: 5m x 2
- Power supply: 3 x AAA built-in Ni-H battery, support 12 hours working when fully charged; AC100-240V power adapter
- Data recording: built-in data recorder, capable of recording 2000 rows of data
- Manual accumulator: 7 digits, press the button to start calibration
- Shell material: flame-retardant ABS
- Product size: 210 x 90 x 30mm
- Net weight: 500g (including the built-in battery weight)
Transducer Specification:
TS-2:
- Measuring caliber: DN15-100mm
- Temperature range: -30℃ ~ 90℃
- Size: 45 x 25 x 32mm
TL-1:
- Measuring caliber: DN300 - 6000mm
- Temperature range: -30℃ ~ 90℃
- Size: 97 x 54 x 53mm
Package Included:
- 1 x Flow Meter
- 1 x Transducer
- 2 x 5m Signal Cable
- 1 x Data Cable
- 1 x Power Adapter
- 2 x Ratchet Buckle
- 1 x Tape Measure
- 1 x User Manual
- 1 x Aluminum Alloy Protection Box
Note:
- The ultrasonic coupling agent is not included in the packaging list due to the express delivery restrictions, please prepare it by yourself. Thanks for your understanding.
