TUF-2000H TM1 Handheld Ultrasonic Flow Meter High Performance Portable Flow Meter for Industrial Flow Measurement

TUF-2000H TM1 Handheld Ultrasonic Flow Meter High Performance Portable Flow Meter for Industrial Flow Measurement

Description:
- The hand-held ultrasonic flow meter TUF-2000H is designed to improve the convenience of flow measurement. It is small in size and light in weight. The flow measurement can be completed only by installing the sensor on the outer wall of the pipeline.
- It is widely used in water supply, heating, water conservancy, metallurgy, chemical industry, machinery and other industries. It can be used for production monitoring, flow comparison, temporary detection, and flow inspection. It is a tool for flow detection.

Features:
- Mini size and Light weight: 200 x 93 x 33mm
- Non-contact measurement: The flow measurement can be completed by attaching the magnetic ultrasonic flow meter sensor to the outer wall of the pipeline
- Support multiple language menu
- Wide measurement range: DN15 ~ DN6000mm
- Large-screen LCD can simultaneously display cumulative flow, instantaneous flow, flow rate, working status, etc.
- Built-in data recorder space is 24K bytes, which can store 2000 lines of measurement data

Specification:
- Principle: Ultrasonic time difference principle, 4-byte IEEE754 floating point operation
- Accuracy: Flow: better than ±1%
- Data interface: Isolated RS232 serial interface, which can be upgraded by PC
- Pipe material: Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, glass fiber reinforced plastic and other dense pipes (they are allowed to have liner)
- Pipe inner diameter: 15 - 6000mm
- Straight pipe section: The sensor installation point should meet the following requirements: 10D upstream, 5D downstream, 30D from the pump outlet (D refers to the pipe diameter)
- Measuring medium:
  Type: water, sea water, industrial sewage, acid and alkali liquor, alcohol, beer, various oils and other single and uniform liquids that can conduct ultrasonic waves
  Temperature: -30 ~ 160℃
  Turbidity: 10000ppm with low bubble content
  Velocity: 0 ~±10m/S
- Working environment:
  Temperature: host: -20 ~ 60℃; flow sensor: -30 ~ 160℃
  Humidity: 85%RH; sensor protection level: IP67
- Power supply: built-in Ni-MH battery. It will last over 12 hours of operation after fully charged. AC90 ~260V power adapter can realize uninterrupted measurement
- Power consumption: 1.5W
- Host weight: 390g

Package Included:

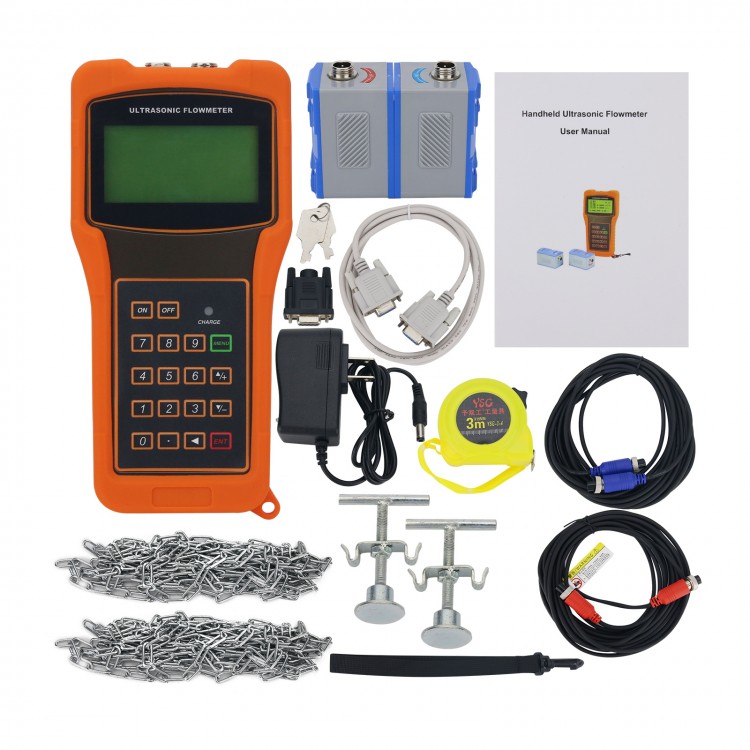

- 1 x TUF-2000H Kit

Note:
- The ultrasonic couplant is not included, please prepare it by yourself.
