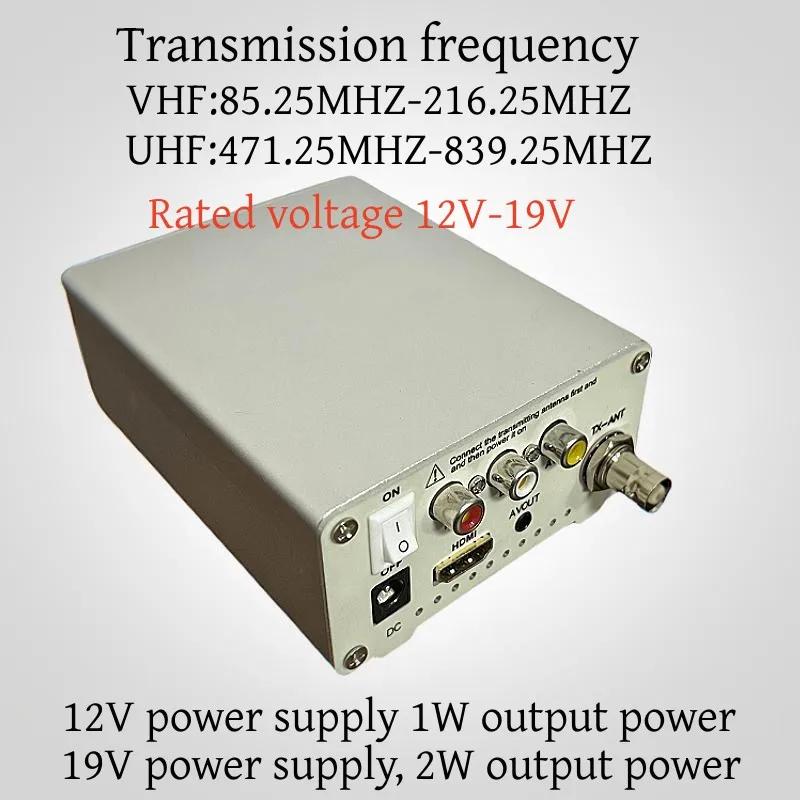

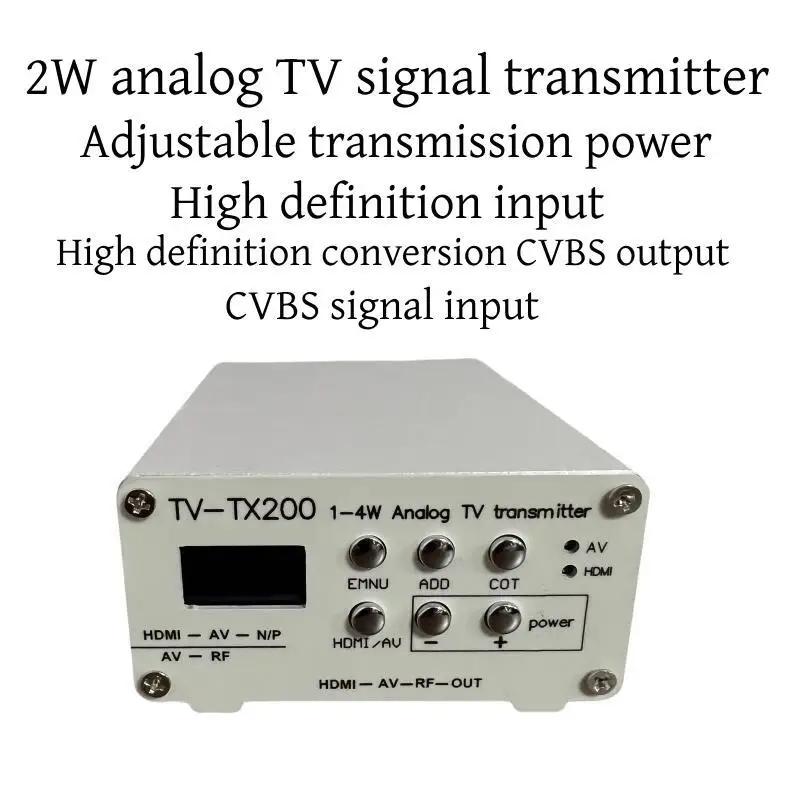

TV-TX200 VHF/UHF Analog TV Transmitter Support HD/AV Input Analog Signal Transmitter with Telescopic Antenna
Description:
- When the transmission distance is over 100 meters, choosing GP antenna has better effect. Using GP antenna for transmission can choose 24V power supply.

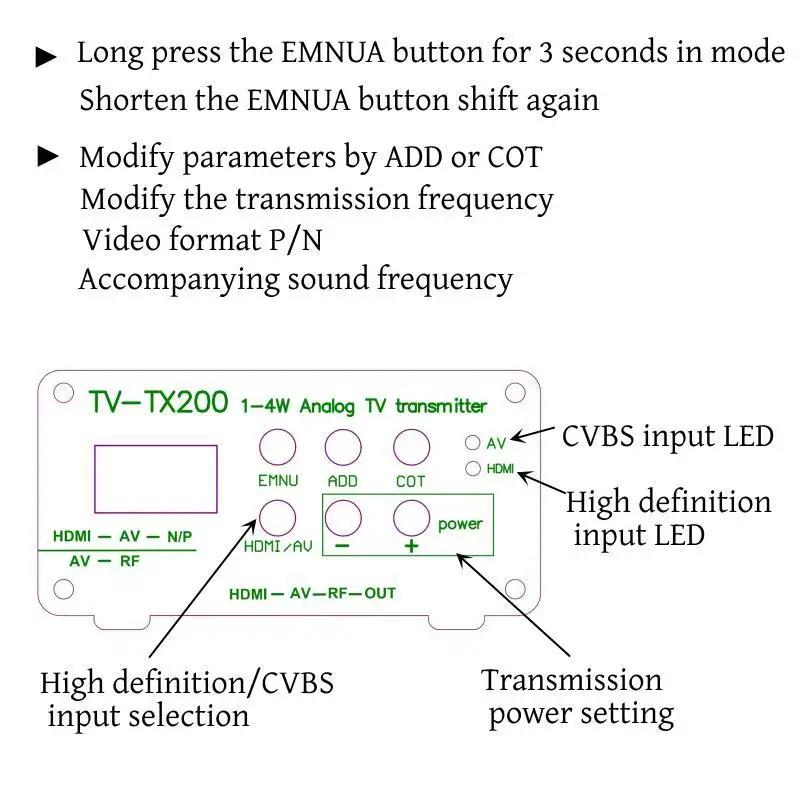

- The transmission channel can be set through buttons:
VHF/5 - 12 channels
UHF/13 - 36 channels
- Choose a hardware transmitting antenna, minimize the power, and use 12V power supply.
Functions:

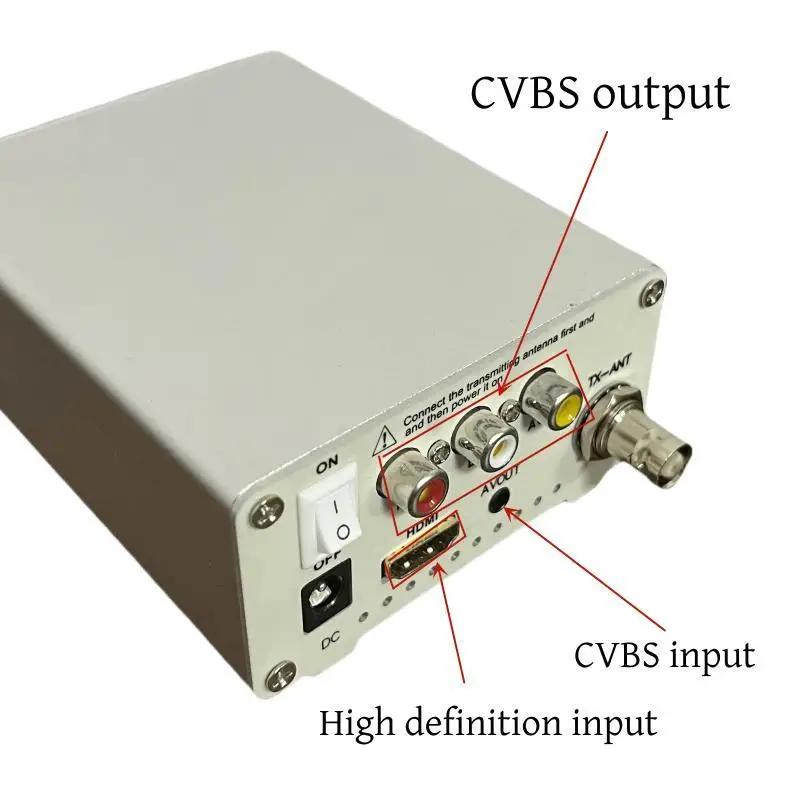

- Support high-definition input, high-definition input can be converted to N format and P format.
- Supports AV input, but cannot convert to N format.

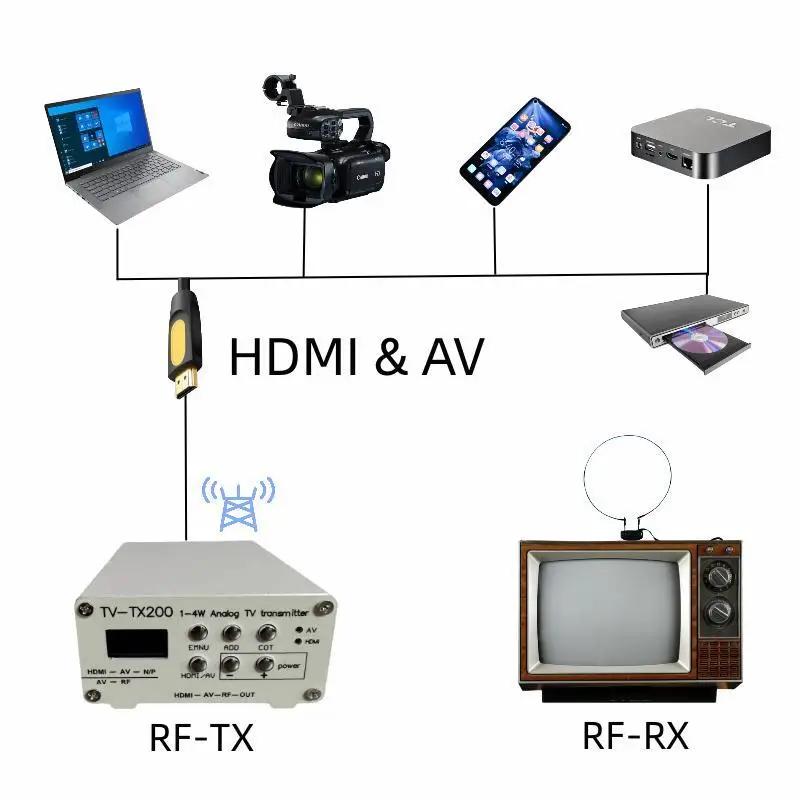

- Supports converting high-definition input into AV signal output for other displays with AV, such as LCD TVs, and can also transmit signals.
- Support accompanying sound settings of 4.5MHz-6.5MHz.
FM Transmission:
- Simple FM signal transmission, with good transmission effect. The method is as follows:
Set the frequency to 85.25 in the VHF band and change the accompanying sound frequency. Adding 85.25MHz to the accompanying sound frequency equals the receiving frequency of the radio.
85.25MHz + 6.5MHz = 91.75MHz
85.25MHz + 6.0MHz = 91.25MHz
85.25MHz + 5.5MHz = 90.75MHz
85.25MHz + 4.5MHz = 89.75MHz

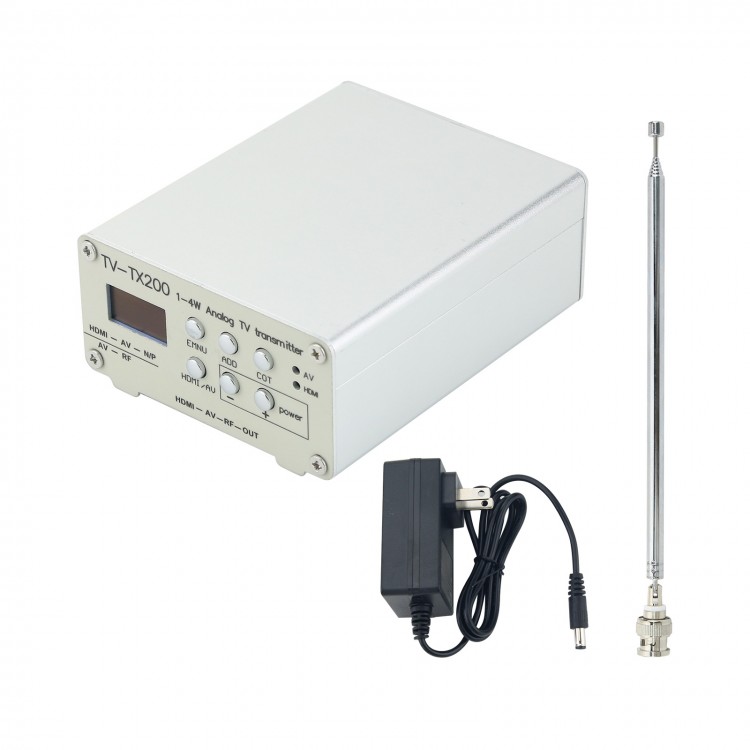

Package Included:
- 1 x Analog TV Transmitter
- 1 x Telescopic Antenna
