TV160 7th Generation Mainboard Tester Tool LCD Display Vbyone LVDS to HDMI Converter+7 Adapter Board
Description:
The converter adopts aluminum alloy outer shell, convenient to carry and featuring excellent compatibility. The important thing is that the interface protection circuit has passed hundreds of tests, the protection is perfect. After testing, even if incorrect introduction of screen power supply into the LVDS input pin will not burn the converter. The converter is different from other brands of converters which need to be equipped with a small protection board. We have integrated protection design for your convenience and also save you money!
Features:
1. Equipped with 7-inch high-definition (1024*600) display, it can directly display the sent image on the motherboard, and output 1080P / 60Hz HDMI at the same time, and can be directly connected to an external display or TV.
2. Support 2K television products, single and double line of 60Hz, 120Hz, 240Hz resolution LVDS signals .
3. Support 4K TV products V-by-One (including 4, 8, 16) signal conversion into full-screen output.
4. Automatically recognize LVDS, V-by-One signal, through the key to LVDS (2K mode), V-by-One (4K mode) cycle switching.
5. Wide power input design, support 5V-12V adapter (recommended 5-6V / 2A or more current power adapter).
6. The converter not only supports 8bit / 10bit VASA, JEIDA and other formats of LVDS signals, also supports 60Hz, 120Hz, 240Hz single-screen and dual-screen line LVDS signals to support 4, 8, 16 V- by-One (30/60 / 120Hz) signal, compatible with all LVDS, V-by-One signal movement motherboards. The converter also comes with 7-inch screen display. It outputs 1080P HDMI format signals, direct connected to external display and TV display, with higher display resolution.
7. Built-in input interface protection circuit; even if the power enters into the screen, it will not burn the converter, more convenient to use.

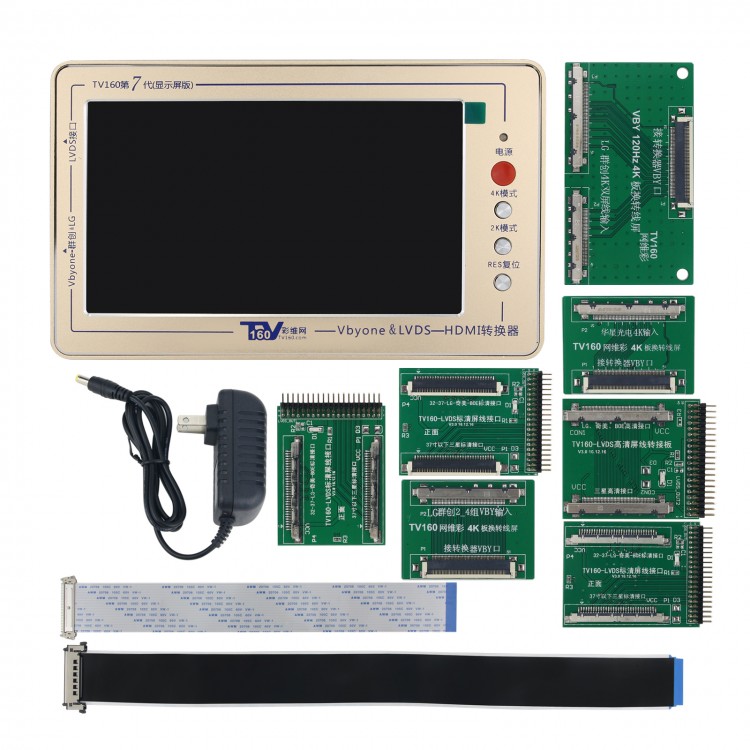

Package List:
-1 x Converter Host
-1 x Power Adapter
-4 x LVDS Screen Interface Adapter Board (2K TV Use)
-3 x Vbyone Interface Adapter Board (4K TV Use)
Note: The product package does not include power supply tool kit.
