TWF100 2CH PC USB Oscilloscope Mobile Phone Mini Bluetooth Telephone Oscilloscope Support Android 4.0
Specification:
- ADC sample rate:1MHz/S
- Pulse width:100us-50s
- Measure type:average,ppk,frquency,effective
- Cursor：voltage / time measure
- Trigger type：rising edge，failling edge，rising pulse，falling pulse
- Trigger mode:normal，automatic，once
- Channel:2
- Compact:dc/ac
- Support system:android4.0 or above
- Support device:android system have bluetooth’s telephone and panel
- Bluetooth version:BT2.1v
- Probe X1: 1M ohm +10v
- Probe X10：10M ohm +100v
Preparatory work:
1. Enable your telephone Bluetooth.
2. Turn TWF100 Power to ON, Blue Light flash.
3. Pair TWF100 Bluetooth device,and input password “1234”.

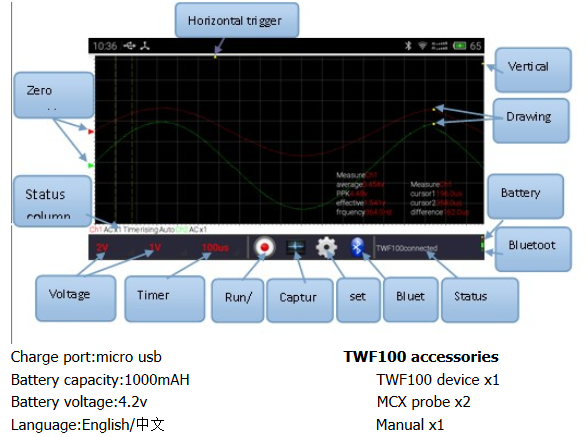

Connect TWF100 Device:
Click toolbar’s Bluetoothbutton,then pop connect device window,select your device.
Packing Content:
- 1 x Oscilloscope
- 2 x Probe
- 1 x Cable
