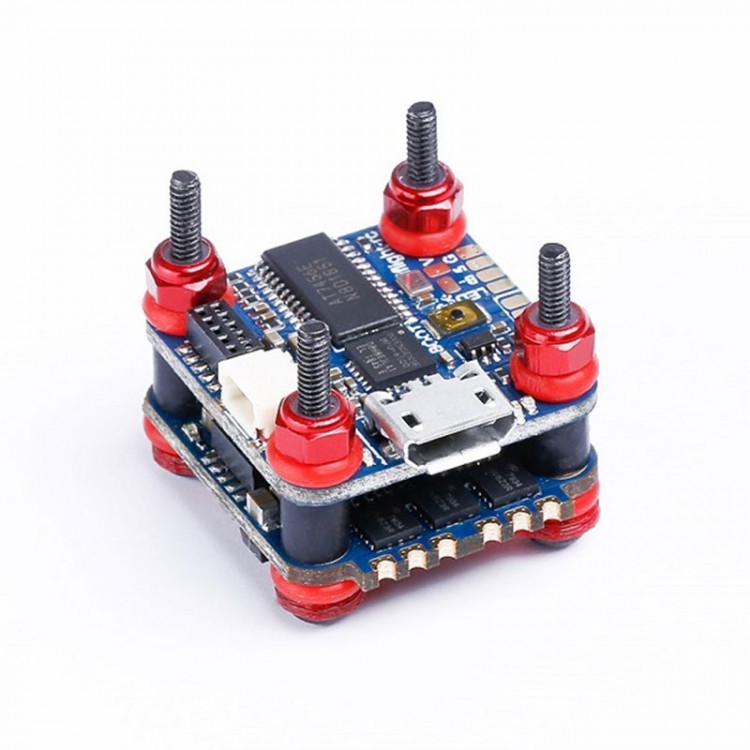

Two-Layer SucceX F4 Flight Tower F4 Flight Controller OSD & 12A 2-4S 4-In-1 ESC for FPV RC Kit

Two-Layer SucceX F4 Flight Tower F4 Flight Controller OSD & 12A 2-4S 4-In-1 ESC for FPV RC Kit

Description:
iFlight SucceX MicroF4 flight controller is special for small aircraft, with mounting hole 16*16mm. With plug-to-play pin, it is easy to install and maintain. The F411 microcontroller and the MPU6000 gyroscope are equipped to optimize flight performance. With built-in programmable RGB LED interface, it can be connected to external LED, through which, you can set the color of LED, its functions, and even status. Thanks to its built-in OSD chip, you can monitor the flight status of the flight at any time.

The iFlight SucceX Micro12A is a four-in-one ESC developed for small aircraft. It uses pin linkage to facilitate the installation and maintenance. The semi-extended structure of the ESC pad does not take up space and is stable. Its mounting hole is 16*16mm. It supports 2-4s input, continuous 12A current, BLHELI_S firmware, Dshot 600 and other protocols.

Technical Parameters:
SucceX Mirco 12A 4-In-1 ESC:
- Size: 23mm*21mm
- Mounting Hole: 16*16mm
- Weight: 2.7g
- Input Voltage: 2-4S LIPO
- Continuous Current: 12A
- MCU: BB21F16G
- BEC: None
- ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.

SucceX Micro F4 Flight Controller:
- Size: 21mm*21mm
- Mounting Hole: 16*16mm
- Weight: 2.5g
- Single Chip Microcomputer: STM32F411
- Gyro: MPU6000
- UART Port: 2
- Firmware: MATEKF411

Package Included:
- 1 x Flight Controller
- 1 x 12A ESC
- Other Accessories

Note:
- Please note that assembling is needed.
- Battery is not included in this package
