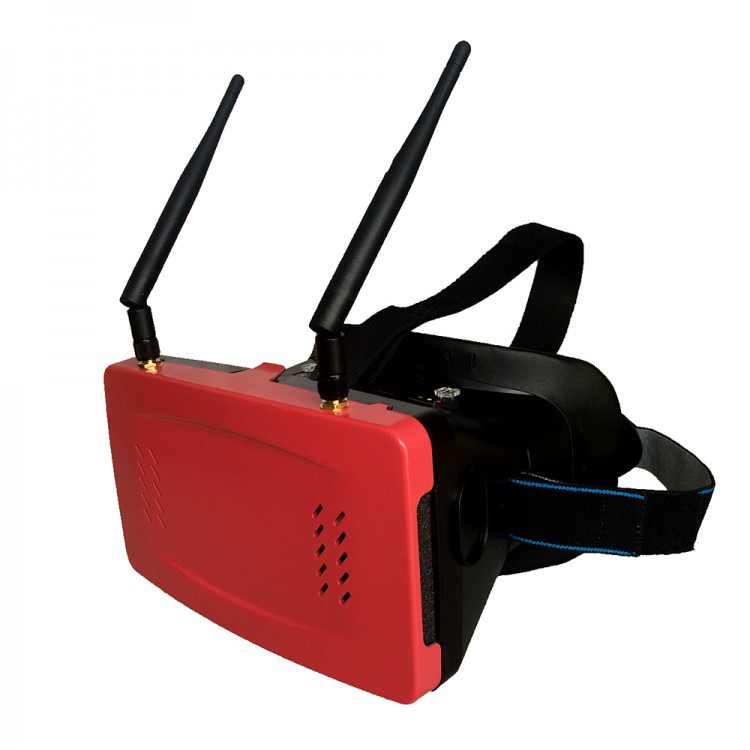

TX1 FPV-3D Receiving Glasses Box 5inch HD Monitor 32CH Receiver Video Glasses-Red

TX1 FPV-3D Receiving Glasses Box 5inch HD Monitor 32CH Receiver Video Glasses-Red

Features:
- 32 frequency points, OSD subtitles display channel and frequency points,  compatible with the market all  transmission
- Automatic identification of Pal/Ntsc video format
- Auto search channel
- Long press touch button to unlock, OSD subtitles Flash 5 times to unlock the success, enter the FM mode
- Glasses box special 3D glass, high transmittance, does not hurt the eyes, the image distortion is reduced to the lowest in the industry
- 2D-AV conversion 3D-AV, AV screen distance and the three-dimensional sense, bring the machine in one game player experience
- 5 inch HD screen, FPV-3D format AV picture, feel the joy of flight
- 7V-24V high voltage power supply
- Glasses box support adjust interpolation distance
- Triangle head wear, buttons to adjust the length, with a human body engineering
- Double rod antenna, the received signal strength enhancement
- Wireless  receiving mode, support AV output

Key Parts:
- Support Pal/Ntsc
- Auto search channel
- Touch FM
- 2D-AV conversion 3D-AV,Realization AV distance and the three-dimensional sense
- Double rod antenna
- 32 the frequency switch, compatible with the market all chart of transmitter
- 5 inch HD screen, FPV-3D format AV image

Specifications:
- Model:TX1(FPV-3D receiving glasses box)
- Screen size:5 inch
- Voltage input:7V-24V
- Work current:0.7A/12V
- Storage temperature：-30 to 70℃
- Work temperature: -20 to 70℃
- Storage humidity：≤85%RH
- Receive sensitivity:-96dbm
- Receive frequency:5.6-5.9GHZ
- Screen brightness:380cd/㎡
- 3D virtual display size:100 inch
- Video output impedance: 75Ω
- N.W：490g
- TX1 Size：170mm*140mm*100mm
- Package size:180mm*150mm*110mm

Package included:
- 1 x Glasses
