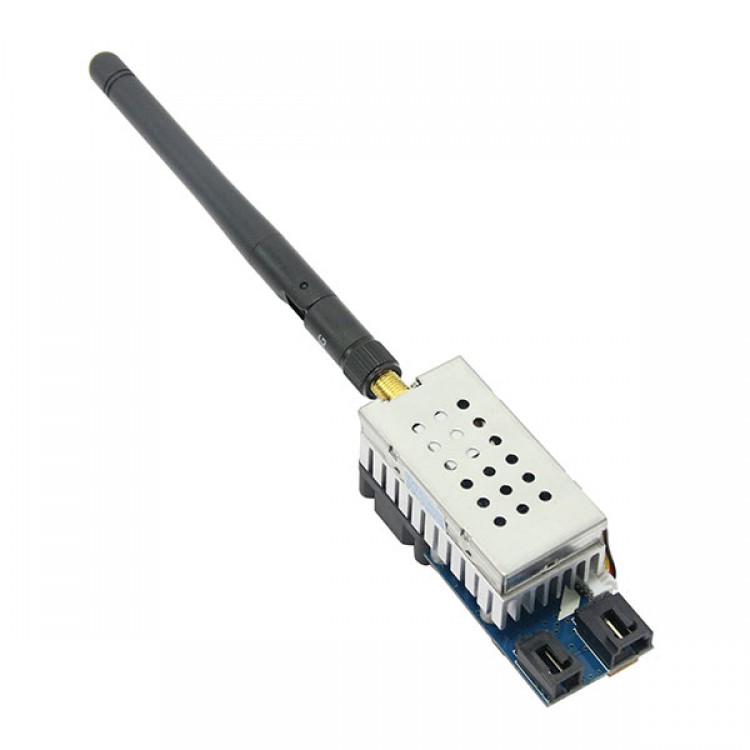

TX51W FPV 5.8G 2000mW A/V FPV Transmitter Module (TX) Long Range Transmission
Features
- FPV 5.8G 2000mW A/V Transmitting module, a good choice for long range video transmission.
Specification
- FPV 5.8G 2000mW A/V Transmitter Module (TX.
- video format supported: NTSC/PAL
- Antenna connection: SMA
- Power input: 7-15V (3S Lipo suggested, does NOT support 4S Lipo)
- Transmitting current: 500mA (600mA at 12V under our real testing)
- Dimension: 59x27x33 (excluding antenna)
Note:
- TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.
- The TX antenna is intentionally glued at factory, please do not try to remove it, TX damage due to replacing/removing the antenna is NOT covered by warranty.
Includes:
- 1 x transmitting unit (TX)
- 1 x TX antenna (2db)
* No instruction manual supplied with this product.
