TXG4 1.54-inch Large Color Screen Single-handed Remote Controller Receiver Board Support Electricity Feedback for RC Bait Boat

TXG4 1.54-inch Large Color Screen Single-handed Remote Controller Receiver Board Support Electricity Feedback for RC Bait Boat

Precaution:
- The wireless transmission signal is strong, and the distance between the remote control and the control board should be greater than 20cm when in use. Otherwise, if the distance is too close and reaches saturation due to the strong wireless signal, the remote control and control board will not be able to connect.
- Choose legitimate brands for batteries, DC motors, and servos as much as possible, and do not choose inferior products. The current of the battery protection board should be large enough, otherwise the current at the moment of motor start-up will cause the battery protection to shut off, and poor quality servo motors may get stuck and unable to rotate. Poor quality DC motors may experience brush wear and abnormal rotation.
- The recommended battery is a 7.4V rechargeable battery, and the recommended motor is a 390 motor. Large motors such as 775 cannot be used. Two motors of the same specifications need to be selected for the motor. High speed motors with a current greater than 10A are not recommended.
- It is difficult to distinguish the positive and negative of the motor. For the left and right motors, you can first insert them into the corresponding wiring sockets and press the remote control forward handle. If one motor is rotating forward while the other is rotating in reverse, simply swap the two wires on the bottom of the motor that is rotating in reverse to adjust it! In short, if the two wires of the motor are swapped, the direction of rotation will be reversed. If the adjustment is correct, then weld the motor wires firmly.

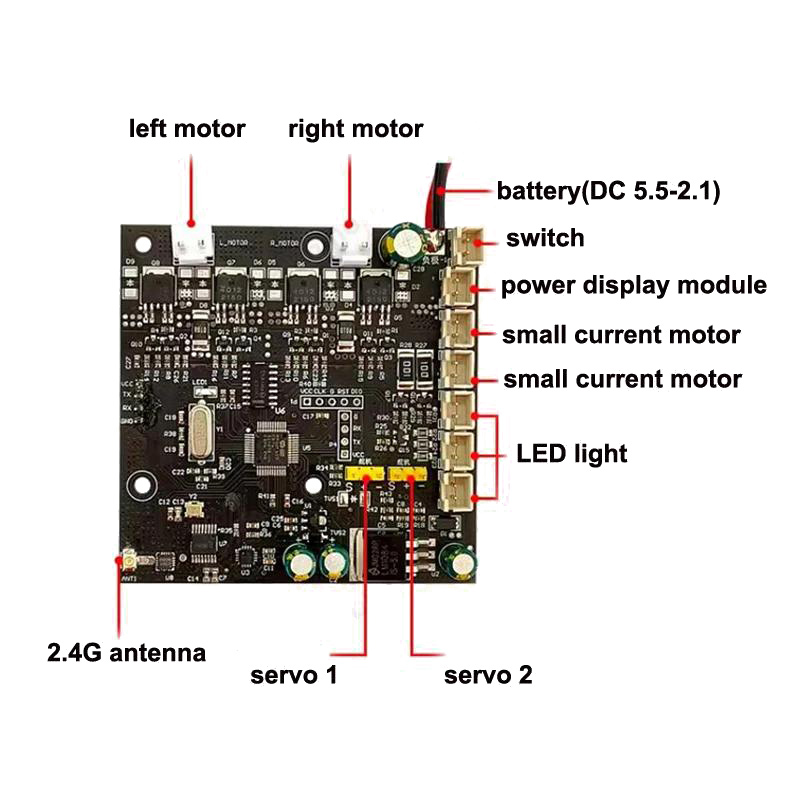

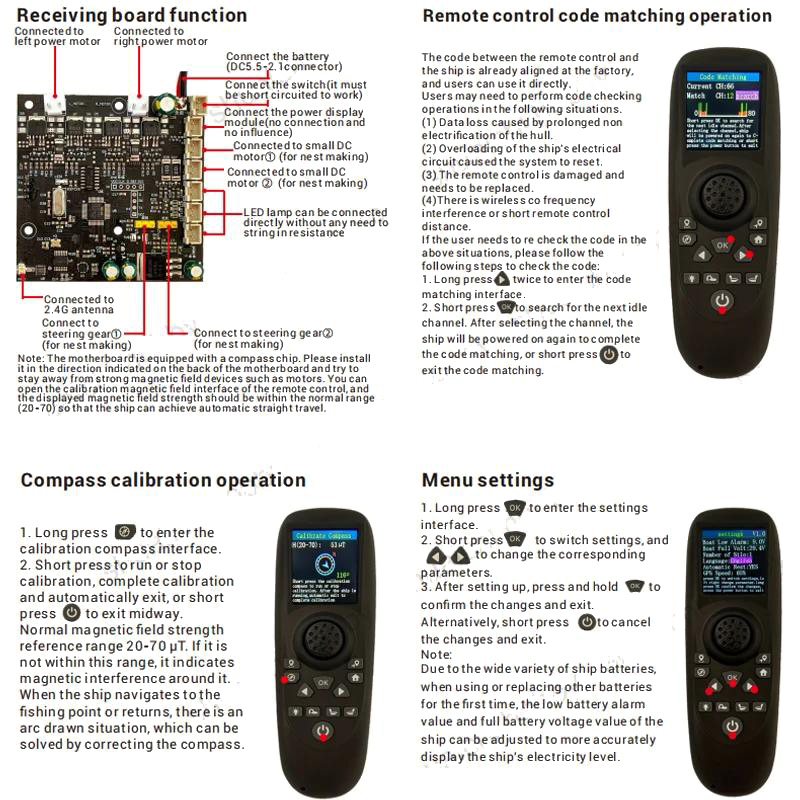

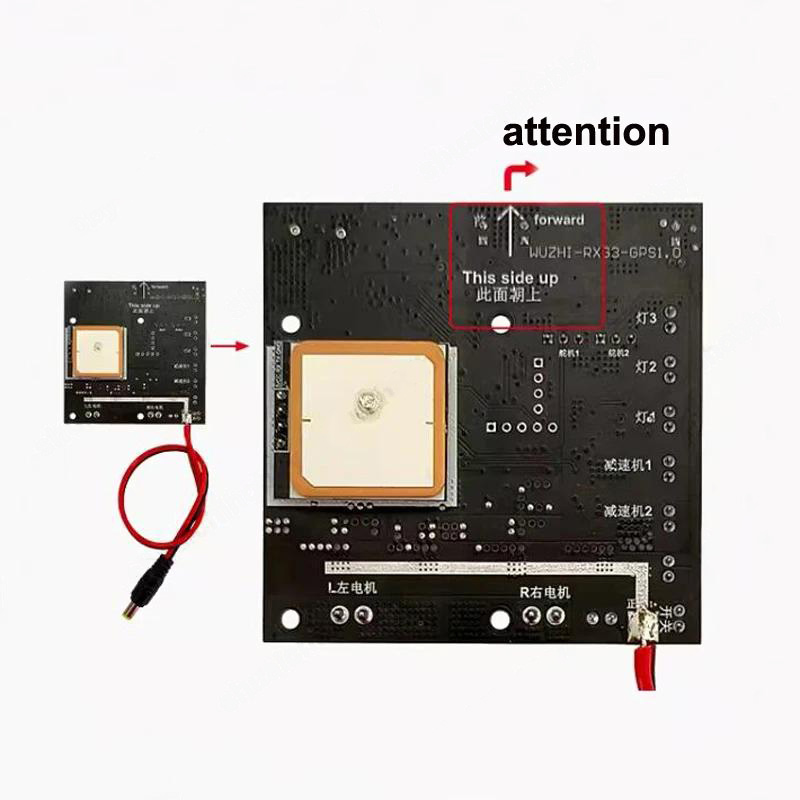

- The receiving board is equipped with a built-in compass chip. Please install it according to the direction indicated on the back of the receiving board, so that the ship can automatically travel in a straight line.

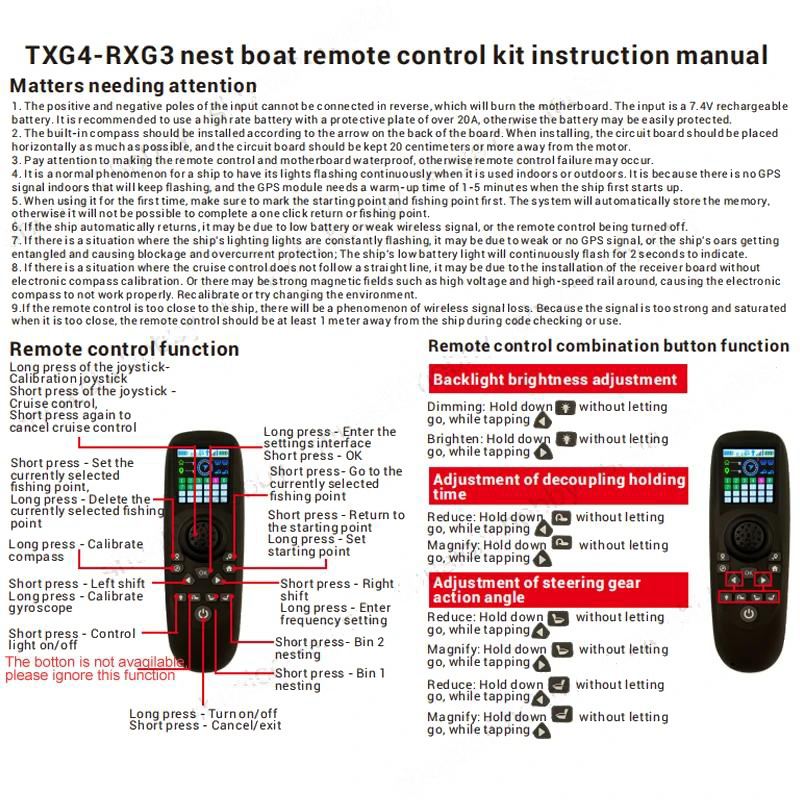

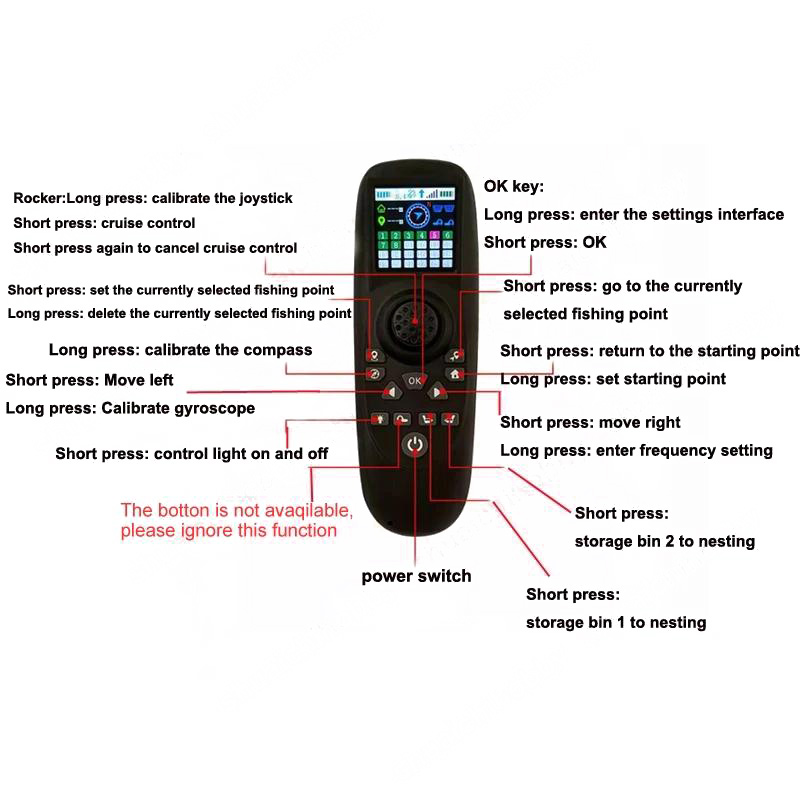

- The unhook button in the remote control is not available, please ignore this function.
- The remote control is used in conjunction with the receiver board.
- The receiving board is tested well before send out.

Factors that can easily cause motherboard burnout:
1. Using high-voltage and high rate batteries (such as 12V) and driving high-speed and high-power motors (with a load current greater than 8A) can easily cause the motherboard to burn out due to excessive power or overheating.
2. When using high-voltage and high rate batteries to drive high-power motors, quickly moving the handle to switch the motor's forward and reverse directions can cause overcurrent, overheating, and motherboard burnout.
3. Modify or weld the positive and negative poles of the power cord in reverse.
4. The input voltage exceeds the maximum withstand voltage.
5. Cabin water ingress.


- 1.54inch colored screen display
- Silicone buttons,and clear button functions
- Built-in rechargeable battery 1500mah

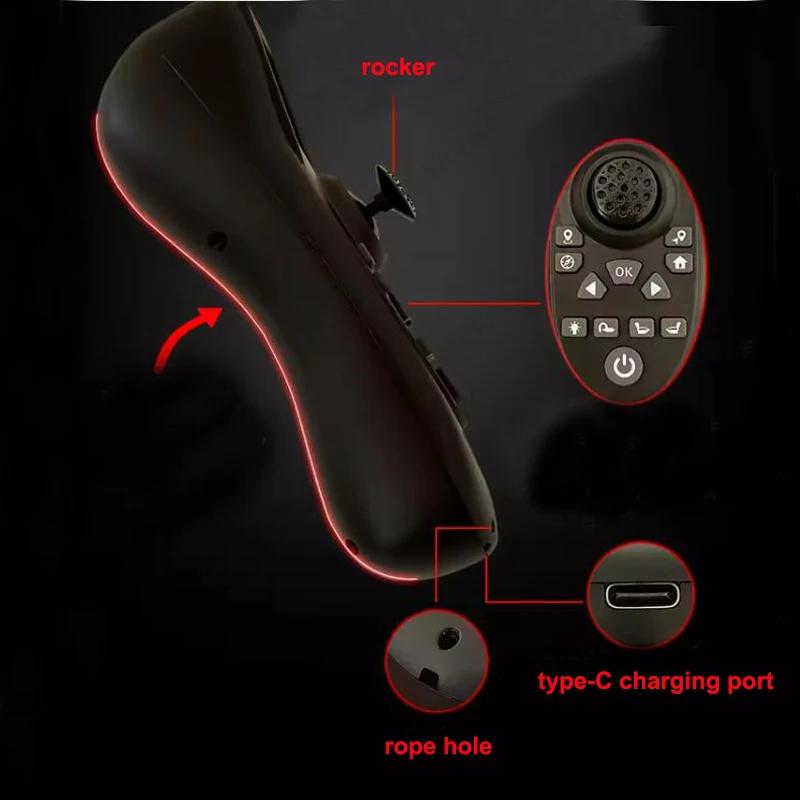

- Type-C charging port
- Long term endurance of 18 hours
- Easy selection of 24 fishing points

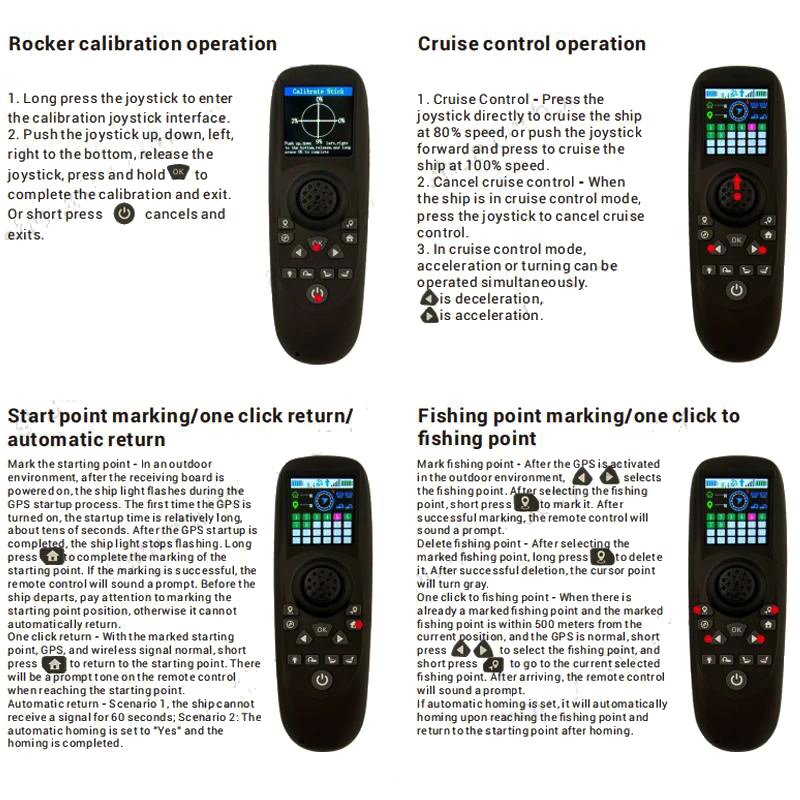

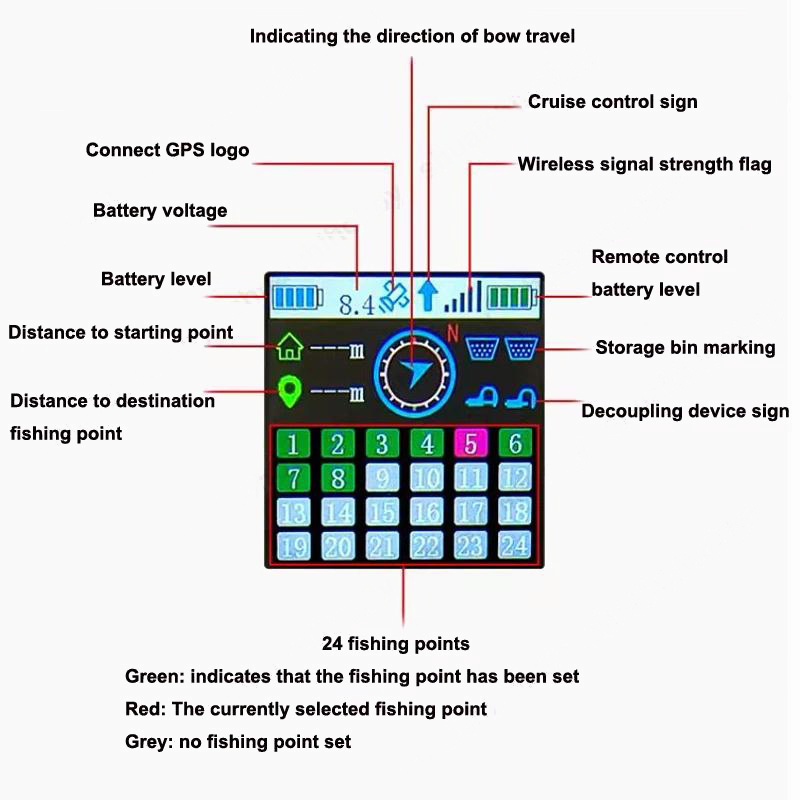

- Distance, power, signal, direction, and status feedback display
- Weight for remote controller: about 103g

Specification for Receiver Board:
- Adapted battery: 6V, 7.2V, 7.4V, 11.1V, 12V lipo battery (Do not use dry battery, as their poor current output capacity can cause the motor to fail to start. Maximum withstand voltage 15V)
- Adapted motor: 380 390 motor
- Max output current: 10A
- Motor interface: single way rated current 10A, peak current 20A
- LED light interface: directly connected to the LED light, the circuit board has already connected a 200 Ω resistor internally
- Communication method: bidirectional communication, power, distance, voltage, wireless signal, GPS signal, status information bidirectional transmission
- Control distance: 500meters
- Remote controller power consumption: 80mA
- Receiver power consumption: 130mA
- Weight for receiver board: about 55g

Remote Control Code Matching Operation:
- The code between the remote control and the ship is already aligned at the factory, and users can use it directly.
- Users may need to perform code checking operations in the following situations.
(1) Data loss caused by prolonged non electrification of the hull.
(2) Overloading of the ship's electrical circuit caused the system to reset.
(3) The remote control is damaged and needs to be replaced.
(4)There is wireless co frequency interference or short remote control distance.
- If the user needs to re check the code in the above situations, please follow the following steps to check the code:
1. Long press ">" key twice to enter the code matching interface.
2. Short press "OK" to search for the next idle channel. After selecting the channel, the ship will be powered on again to complete the code matching, or short press the power key to exit the code matching.

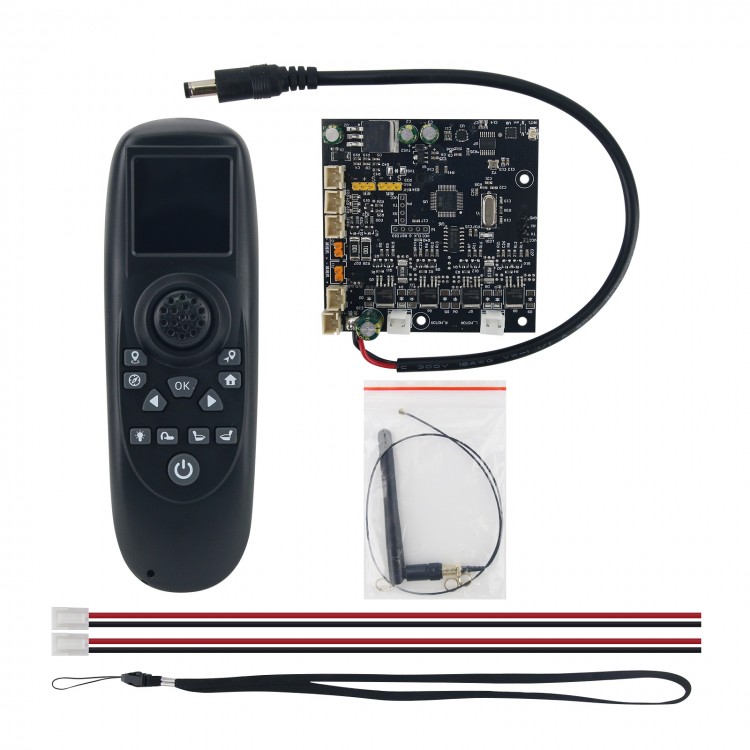

Package Included:
- 1 x Remote Controller
- 1 x Receiver Board

Note:
- Battery is not included.
