Type-C LCD Color Display Digital USB Tester Voltmeter Ammeter QC 2.0/3.0 Quick Charge Test

Type-C LCD Color Display Digital USB Tester Voltmeter Ammeter QC 2.0/3.0 Quick Charge Test

Product Details:

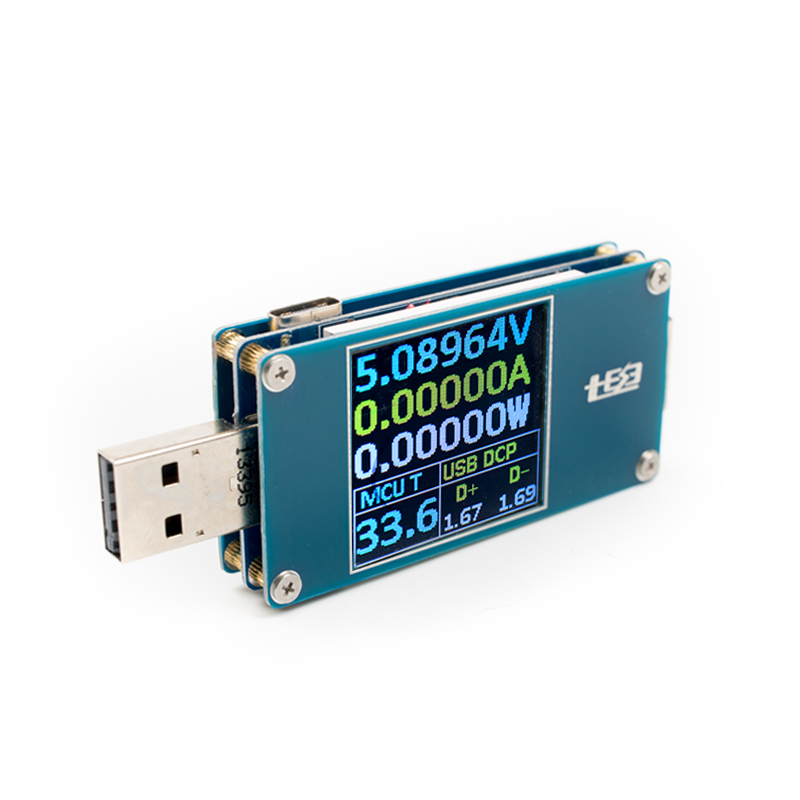

- 1.44 Inch color LCD display makes it easy and clear to read.

- Real-time store data, convenient to check data anytime.

- Multiple display modes: color displayed with figures or curve displayed.

- High accuracy to test: digital display can be accurate to 5 decimal places.

- 3.5-24V voltage and 0-5A current measurement range.

- Support multiple charging protocols: PE/DCP, Huawei SCP, Apple 2.4A, QC 2.0/3.0, etc.

- Support wire resistance test

- Support voltage/current/power/capacity/energy detection /quick charge recognition, data storage, etc.

Specifications:

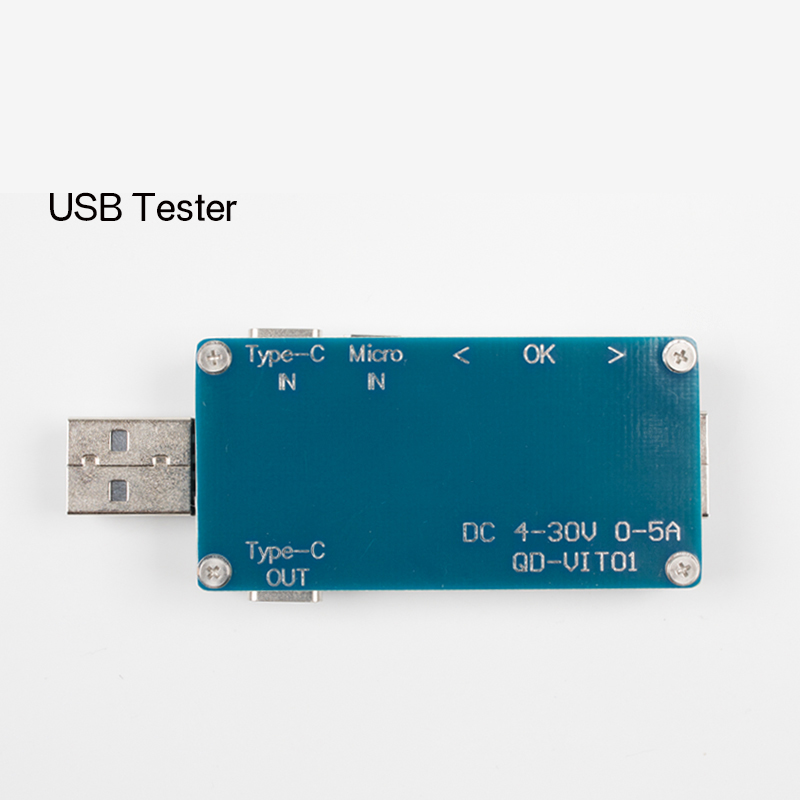

- Item Name: Digital USB Tester

- Material: PCB

- Color: Blue

- USB Port: Type-C, USB A

- Input Voltage: 3.5-24V   Voltage measurement accuracy: 0.00001V

- Input Current: 0-5A Current measurement accuracy: 0.0001A

- Capacity Accumulation Range: 0-99999mAh

- Energy Accumulation Range: 0-99999mWh

- Current Measurement Accuracy: ± (0.8% +3 digits)

- Voltage Measurement Accuracy: ± (0.2% +1 digits)

- Load Impedance Range: 15Ω-9999.9Ω

- Time Measurement Range: 0-99h59min59s

- Voltage Curve Range: 3.5V-24V

- Temperature Measurement Error: ±3℃/±6℉

- Temperature Measurement Range:  -10℃ to 100℃/0℉ to 200℉

- Current Curve Range: 0-5A

- Display Size: 1.44" color LCD display screen

- Size: 77 x 31 x 12 mm (UM24C)

- Weight: 0.02kg

Package Included:

- 1 x USB Tester

Support protocols: Corresponding display

USB DCP:  USB DCP

PE/DCP: PE OR USBDCP

PE or PD: PE or USBPD

QC 2.0: QC 2.0

QC 3.0: QC 3.0

Apple 0.5A: Apple 0.5A

Apple 1A: Apple 1A

Apple 2.1A: Apple 2.1A

Apple 2.4A: Apple 2.4A

Huawei SCP: Huawei SCP

Huawei FCP or Samsung AFC: FCP or AFC

Other: unknown
