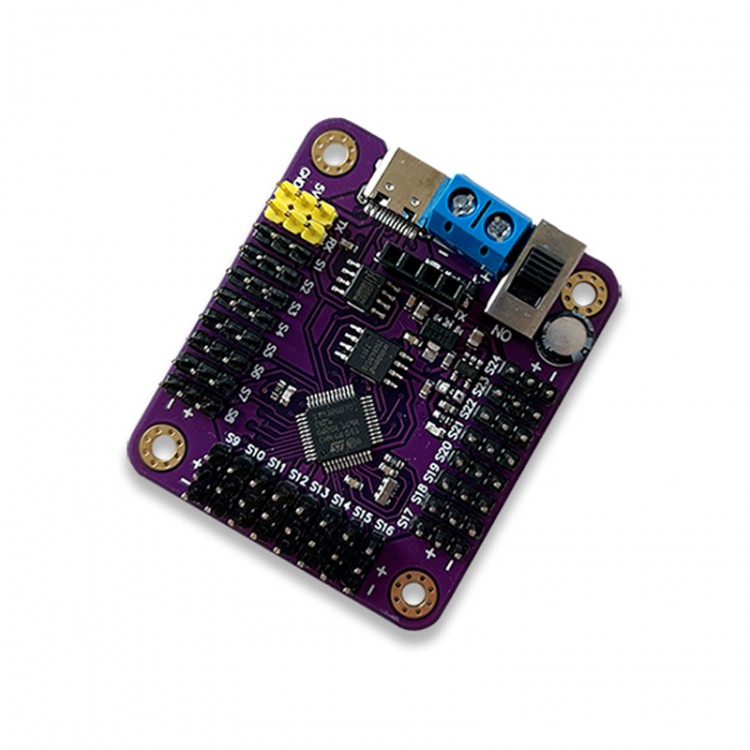

Type C USB Servo Controller Board 24-Channel Servo Control Board Servo Driver Board USC-24
Features:
- You can use computer software to control your robot and servos
- Can control 24 servos at the same time, ensuring high precision (1us)
- 32-bit CPU imported from the United States with high stability and precision
- Support systems for Windows 11, MAC OS, and Linux
- Adopt the latest type C USB interface
- The board has a high-current power switch
Technical Parameters:
- Adopt the latest Type C USB interface
- Control channel: control 24 channels at the same time (The speed of servos is adjustable)
- Communication input: USB or serial port (TTL)
- Signal output: PWM (accuracy 0.5us)
- Baud rate range: 9600, 19200, 38400, 57600, 115200, and 128000
- Supported servos: for Futaba, Hitec, Frasers, Spring, and more than 98% of the servos on the market
- PCB size: 51 x 43.5mm/2 x 1.7"
- Mounting hole spacing: 42 x 35.5mm/1.7 x 1.4"
- Storage space: Onboard 64Mb memory chip
- USB interface: type C
- Servo signal isolation: none
- Current protection: none
- Low-voltage prompt: none
- For PS2 controller: not
- External MP3 module: not
- External WiFi module: support
- External bluetooth module: support
- For Windows: supported
- For MAC OS: not
- For Linux system: not
Package Included:
- 1 x 24CH Servo Control Board
- 1 x Type C USB Data Cable (about 0.8m/2.6ft)
