TYT MD-UV390 DMR Radio Station Dual Band Dual Time Slot Digital Walkie Talkie IP67 Waterproof

TYT MD-UV390 DMR Radio Station Dual Band Dual Time Slot Digital Walkie Talkie IP67 Waterproof

Specification:
General:
Frequency Range: 136-174MHz & 400-480MHz
Channel: 3000 channels
Frequency Stability: ± 1ppm
Battery: 2200mAh Li-ion
Operating Voltage: 7.4V DC
Operating Temperature: -30°C~+60°C
Channel Spacing: 12.5KHz
Antenna Impedance: 50Ω
Audio Output Power: ≤1000mW @ 16Ω
Size: 131 x 61 x 36mm

Transmitter:
Output Power: ≤5W(H), ≤1W(L)
Frequency Stability: ± 1.0 ppm
Adjacent Channel Power: ≤ -60dB
Free Time Slot Power: TDMA: ≤57dBm
Hum and Noise: -40dB @ 12.5KHz
Spurious Radiation: Antenna: 9KHz-1GHz, ≤ -36dBm; 1GHz-12.75GHz, ≤-30dBm
FM Modulation Mode: 12.5KHz: 11K0F3E
4 FSK Digital Mode: 12.5KHz(data only): 7K60FXD; 12.5KHz(data+voice): 7K60FXE
Modulation Maximum Deviation: 2.5KHz @ 12.5KHz
Nonactive Slot Power: -57dBm
Digital Protocol: ETSI TS 102 361-1, -2, -3
Vocoder Type: AMBE +2TM
Audio Response: +1dB~-3dB
Modulation BER: ≤5%

Receiver:
Analog Sensitivity: 0.25µV @ 12db SINAD
Digital Sensitivity: 0.25µV (BER 5%)
Adjacent Channel Selectivity: ≤ -60dB @ 12.5KHz
Intermodulation: ≤60dB
Spurious Response: ≥70dB
Audio Power: 1W
Audio Response: +1dB~-3dB
Rated Audio Distortion: <5%
FM Noise: ≥45dB @ 25KHz; ≥40dB @12.5KHz

Main Functions:
-Time-Division Multiple-Access(TDMA) digital function
-Compatible with other brand Tier I and II
-Comply with digital protocol ETSI TS 102 361-1, -2, -3
-IP67 waterproof
-Analog and digital combined
-Dual band,dual display,dual standby
-Up to 3000 channels
-10000 contacts
-Color LCD display
-Transmit interruption
-Group call match(Promiscuous)
-Private call match(Promiscuous)
-Dual time slot for repeater
-Dual time slot for point to point
-Lone worker
-Encryption function
-Single call, group call, all call
-Remote kill/stun and activate
-8 hours of recording

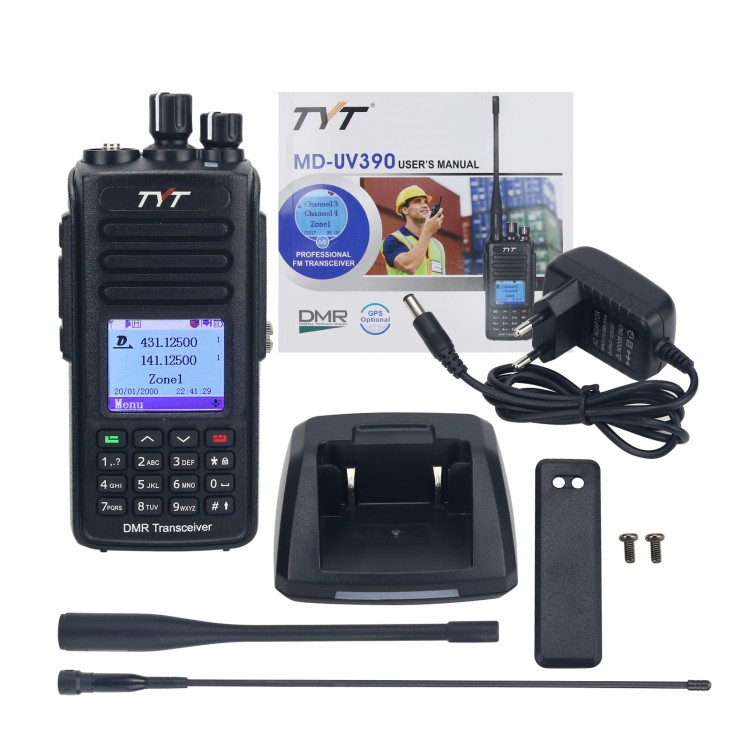

Package List:
-1 x MD-UV390 DMR Radio
-1 x Li-Ion Battery
-2 x Antenna
-1 x Charger
-1 x Belt Clip
