TYT TH-UV98 10W 136-174MHz/400-480MHz Handheld Transceiver VHF UHF Walkie Talkie Standard Version

TYT TH-UV98 10W 136-174MHz/400-480MHz Handheld Transceiver VHF UHF Walkie Talkie Standard Version

Main functions:
- DOT-MATRIX LCD display
- Power-on mode select able
- DTMF calling channels quick assignment
- Wide/Mid/narrow bandwidth selectable
- 200 channels
- Dual band, dual wait, and dual standby
- Busy channel lock
- Scan: frequency and CTCSS scan
- TOT
- ANI
- Remote stun / kill / activate
- PTT ID
- FM radio for 24 channels storage
- VOX
- Battery saving
- Scrambler
- Multiple types for keys lock setting
- Multi-Display mode
- DTMF
- Backlight brightness setting
- COMP
- 1750Hz tone
- 2 Tone / 5 Tone
- CTCSS/DCS

Technical Parameters:
General:
- Channel: 200
- Operating Voltage: 7.4VDC
- Operating Temperature: -10° C to +50° C
- Weight: 268g/0.6lb (battery and antenna included)

Receiver:
- Frequency: 136.000-174.000MHz & 400.000-480.000MHz
- Sensitivity: ≤0.2μV
- Occupied Bandwidth: ≤16KHz
- Inter-mediation: ≥55dB
- Audio power: > 500m W
- Audio distortion: ≤10%
- Frequency Stability: 5ppm
- Current: standby: 60mA; working: 250Ma
- Audio response (300-3400Hz): +7~-12.5dB

Transmitter:
- Frequency: 136.000-174.000MHz & 400.000-480.000MHz
- Power: High ≤10W; Low ≤ 5W
- Modulation Type: FM
- Spurious Power: ≤ -15db
- Modulation Noise: <- 40dB
- Modulation Distortion : <5%
- Frequency Stability: 5ppm
- Max Fr. Deviation: ≤ ±5KHz
- Current: ≤ 1600mA
- Audio response (300-3400Hz): +6.5~- 14dB
- Adjacent Ch Power: ≥ 65dB

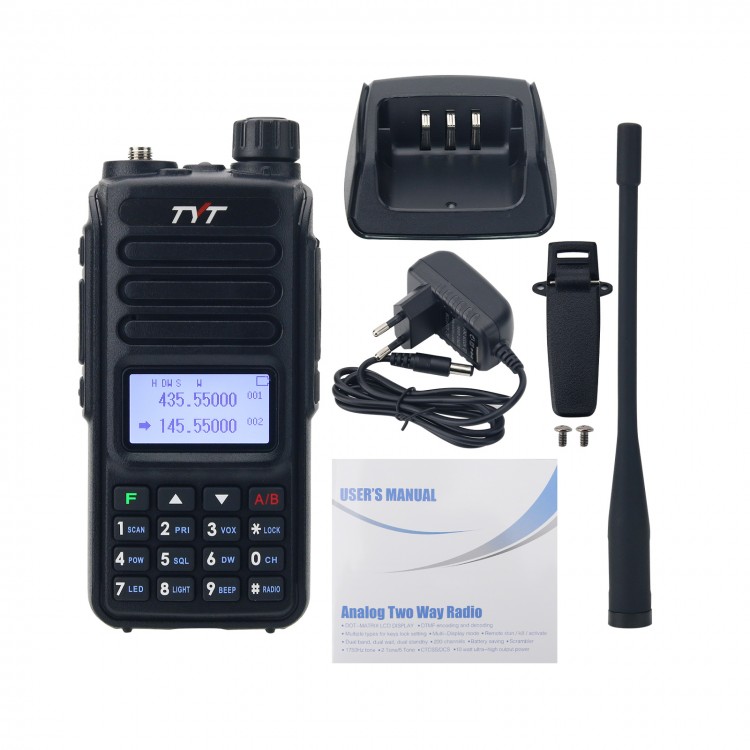

Package Included (Standard Version):
- 1 x Battery Pack
- 1 x Walkie Talkie Body
- 1 x Antenna
- 1 x Belt Clip
- 1 x Charger
