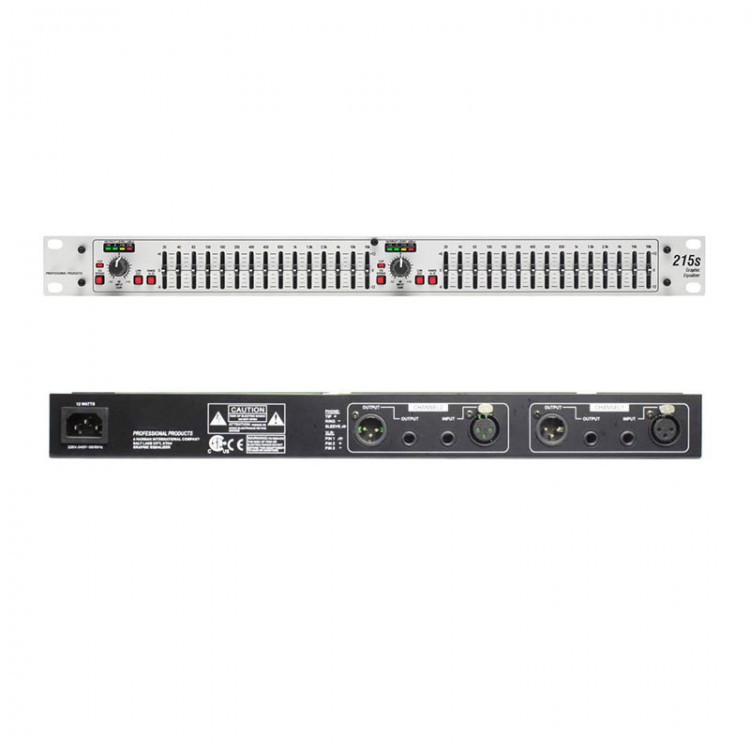

TZT-215S 2-channel 15 Band Equalizer Professional Graphic Equalizer (Silver Panel) with XLR and TRS
Features:
* Dual-channel, 15-band, 1/3-octave constant Q frequency bands
* Switchable boost/cut ranges of ±6 dB or ±12 dB
* Front panel bypass switch
* ±12 dB input gain range
* 4-segment LED ladder indicators for monitoring output levels
* XLR and TRS inputs and outputs
* Frequency response of 10Hz-50kHz
* Dynamic range greater than 108 dB
Specifications:
* Input Connectors: 1/4" TRS, female XLR (pin 2 hot)
* Input Type: Electronically balanced/unbalanced, RF filtered
* Input Impedance: Balanced 40 KΩ, unbalanced 20 KΩ
* Max Input: >+21dBu balanced or unbalanced
* CMRR: >40dB, typically >55dB at 1kHz
* Output Connectors: 1/4" TRS, male XLR (pin 2 hot)
* Output Type: Impedance-balanced/unbalanced, RF filtered
* Output Impedance: Balanced 100 ohm, unbalanced 50 ohm
* Max Output: >+21dBu balanced/unbalanced into 2 KΩ or greater; >+18dBm balanced/unbalanced (into 600 Ω)
* Bandwidth: 20Hz to 20kHz, +0.5/-1dB
* Frequency Response: 10Hz-50kHz, +0.5/-3dB
* Dynamic Range: Typically >112dB
* SNR: Typically >95dB
* THD+Noise: <0.003%
* Inter-channel Crosstalk: <-90db, 20Hz to 20kHz
* Bypass Switch: Bypasses the graphic equalizer section in the signal path
* Low cut Switch: Activates the 50Hz 12dB/octave Bessel high-pass filter
* Range Switch: Selects either +/- 6dB or +/- 12dB slider boost/cut range
* Operating Voltage: 100VAC-240VAC 50/60Hz
* Power Consumption: 15W
* Power Connector: IEC receptacle
Package Included:
* 1 x Set of Equalizer
Packaging Details:
* Weight: 3kg
