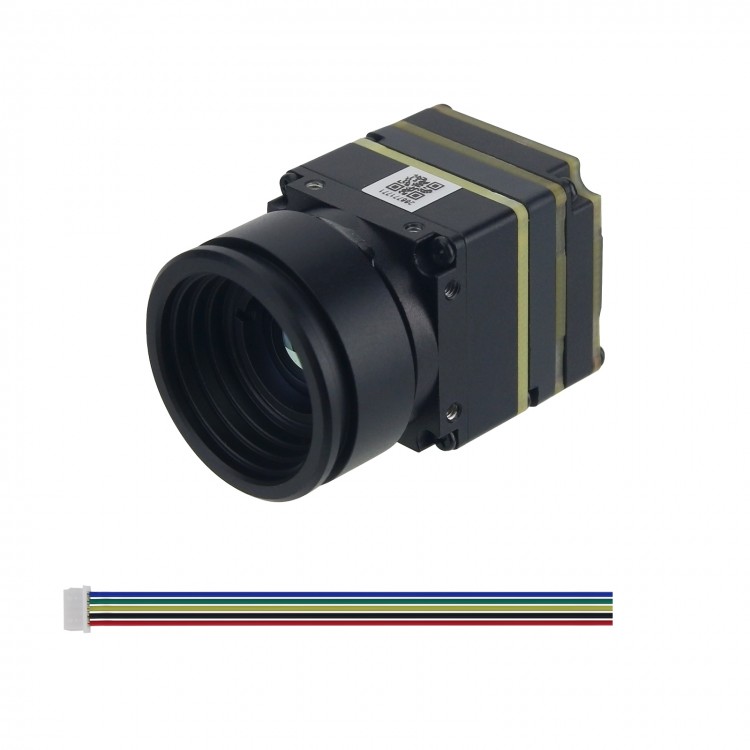

TZT 256X192 9.7MM Lens Thermal Imager for FPV Drones with CVBS Interface Longwave IR 12um Micro Camera Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$199.60
  • Price in reward points: 1996 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $195.61 $191.62 $185.63 $177.64 Contact US
Quantity:

TZT 256X192 9.7MM Lens Thermal Imager for FPV Drones with CVBS Interface Longwave IR 12um Micro Camera Module

Specification:

- Resolution: 256 x 192
- Detector type: vanadium oxide uncooled infrared focal plane detector
- Effective frame rate: 25fps
- Pixel pitch: 12um
- NETD: 40mk
- Spectral band: 8 - 14um
- Lens parameters: 9.7mm F1.0
- FOV (HxV):
  9.7mm: 18.1°(H) x 13.6°(V)
- Polarity/palette: white heat, black heat, fusion, iron red, fusion
- Power supply input: 5V - 16V
- Power: ≤0.8W
- Output: CVBS
- Analog video: PAL
- Product size (without lens): 20mm x 20m
- Weight (without lens): ≤23g
- Operating temperature: -40℃ ~ 80℃
- Storage temperature: -45℃ ~ 85℃

Package Included:
- 1 x Thermal Imager
