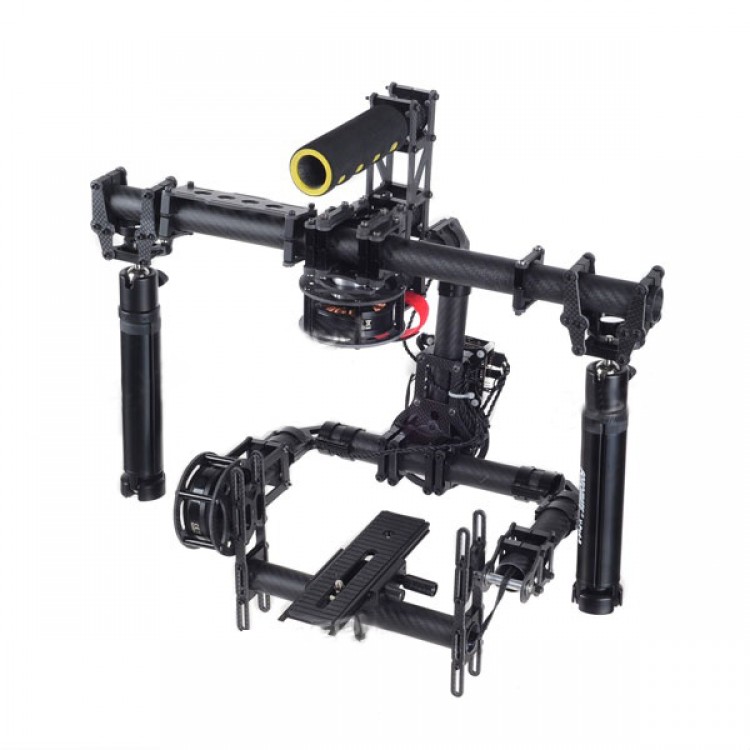

TZT 3 Axis Handle Brushless Gimbal for Canon 5D3 Full Set Folding Multi-functional Handheld Assembled

TZT 3 Axis Handle Brushless Gimbal for Canon 5D3 Full Set Folding Multi-functional Handheld Assembled

Introduction:
New 3 Axis handle brushless gimbal, designed with multifunction gimbal handle, which could steady the gimbal, and also work as large gimbal debugger support; Handle top end with multi-direction rotation ball mount, has good effect to balance cameras; Camera support plate combined by flexiable camera quick mount plate, offer convenient to handheld gimbal balance debugging.

Gimbal Specifications:
- Size: 500w x 350h x 300dmm
- Weight: 3.6kg
- Supporting camera: Canon 5D Mark III, EOS-1D C & DSLR
- Payload: <2.5kg

Handle Features
- Work as handheld handle and gimbal debugging
- Built-in ball mount on top, with dual balance effect, more stable camera images.
- Horizontal rotation 360 degree, vertical angle 90 degree, and also could fixed in any active position

Handle Specifications:
- Max.height: 400mm
- Folded height: 165mm
- Color: Black
- Fixture tube clamp diameter: 25mm

Quick Mount Plate Specifications:
- Length: 160mm
- Width: 93mm
- Adjustable range: 100mm
- Thread interface: 6mm(1/4)
- Suit for most of cameras
- With soft rubber on surface, will not hurt cameras
- Aluminum alloy material, with scales, precision movement

Motor Specifications:
- 5208-200T
- KV: 30
- Configuration: NP
- Stator Diameter: 52mm
- Stator Length: 8mm
- Shaft Diameter: 5.0mm
- Motor Dimensions(Dia.*Len): Φ63x30mm
- Weight (g): 230g
- No.of Cells(Lipo): 3-6S
- Max Continuous current(A): 28.2A
- Max Continuous Power(W): 626W
- Internal resistance: 0.106Ω
- Suit for DSLR cameras FPV aerial photography

Package included:
- 1 x 3-axis handle brushless gimbal(w/1 set folding handles)
- 3 x 5208 200T motors
- 1 x 4CH PWM Output PTZ Controller
- 1 x Alexmos gimbal controller
- 1 x Li-po power 11.1V 5300mah 40C Battery (3H working)
- 1 x (110V-240V)AC lipo Balance Battery Charger
