TZT GPSDO V2.0 GPS Disciplined Oscillator GPS Clock 10MHz/1PPS Frequency Standard with Single Output

TZT GPSDO V2.0 GPS Disciplined Oscillator GPS Clock 10MHz/1PPS Frequency Standard with Single Output

Description:
TZT GPSDO V2.0 uses ultra-low phase noise SC-cut thermostatic crystal with 1ns TIC resolution, 16-bit DAC.

Upgraded Hardware:
1. Now its GPS module is AirM2M dual-band dual-mode Air551G, and the comprehensive jitter reaches ±2ns.
2. 1ns detection from hardware to software has been improved.
3. The control system hardware has been optimized, and the GAIN is increased to more than 500.
4. Other details have been optimized.

Application:
- High-end audio decoders, digital turntables and other audio devices with external 10MHz clock input.
- All kinds of high-end instruments and equipment. Shortwave radio with external 10MHz reference source input. High-precision frequency meter, high-precision signal source and other instruments.

Specifications:
- Power supply voltage: DC8-13V
- Power consumption: < 12W for warm-up; < 5W for working
- Frequency accuracy: 1e-10
- Frequency stability: 5E-12
- Output level: 12dBm±1dB
- Output waveform: Square wave or sine wave (Square wave by default. Please inform in advance if you need a sine wave)

State of Indicator Lights:
- PWR: Main power indicator.
- ALM: Status indicator. Flashing indicates an abnormal GPS signal; Off means that the GPS signal is normal but not locked, and the 10MHz output accuracy is not reached; Staying on means that the signal is locked, and 10MHz output accuracy has been achieved.

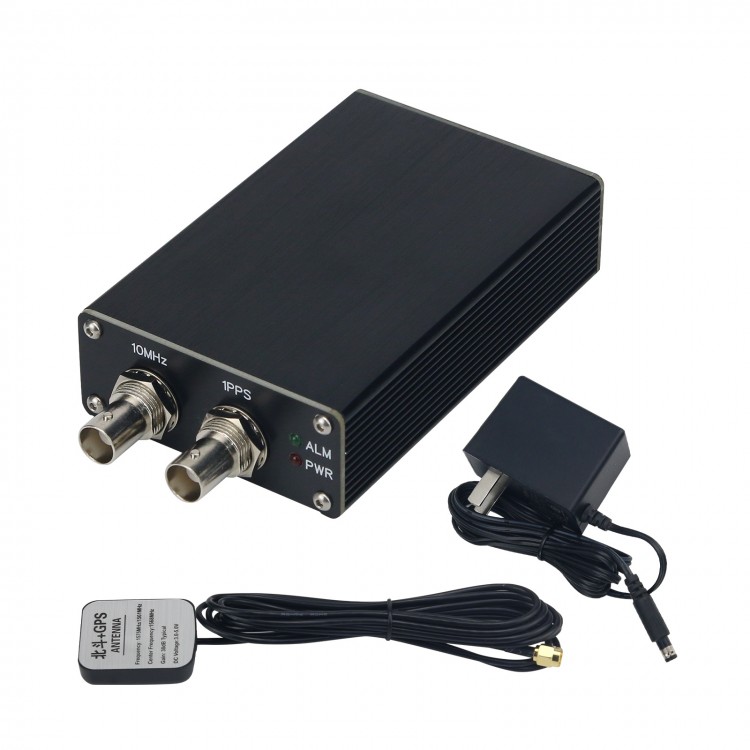

Package Included:
- 1 x Main unit
- 1 x Power supply
- 1 x GPS antenna (with 3m/9.8ft cable)

Tips: How to choose sine wave and square wave?
The square wave type is required for external references to instrument-like equipment or to replace internal reference sources for audio devices. For high-end audio devices with external reference clocks (high-end audio devices are typically shaped), users can use square or sine waves.
