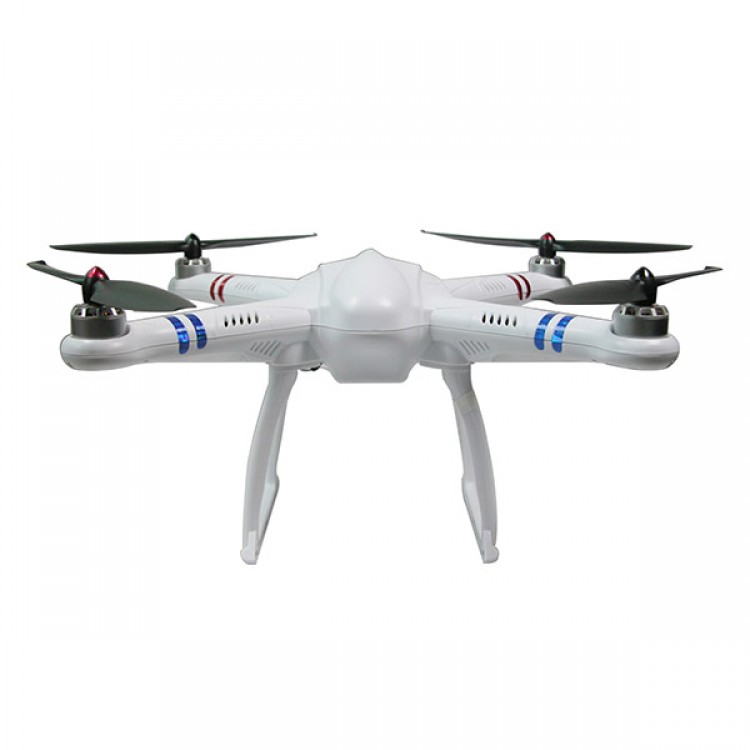

TZT Multicopter ABS Quadcopter Auto Reture to Home w/ Onetouch 4 Contolling Board

TZT Multicopter ABS Quadcopter Auto Reture to Home w/ Onetouch 4 Contolling Board

Product features:
- Complete design, no need to set complicated programmes
- Onetouch 4 flying controlling board
- Two flying mode: Set Height Flying, GPS and Set Hight Flying
- Smart flying, based on the rocker direction when powered on
- Auto return to home: full time full channel intervention function
- Out of control design
- Low voltage warning
- Adjustable flying speed and handle feedback
- Safe programme design and electricity configuration
- LED light design
- 70% ABS material
- Gimbal installing design
- Professional receiver and remote control, reliable out of control protection function

Specification:
- Dimension: L280*W280*H191mm(motor wheelbase)
- Diagonal: 396mm(motor wheelbase)
- Propeller: 9 inch (10 inch optional)
- Flying time: about 15mins
- Flying weight: 840g(battery not included)

Flying parameters:
- Max stern rudder angular velocity: 150 degree/s
- Max tilt angle: 45 degree
- Max lift descent velocity:
- Max flying speed: <=30km/h

Electronic equipment:
- Motor: 2212-1050KV brushless motor
- ESC: 15AX brushless ESC
- Receiver: free X receiver
- Remote Control: free X remoter controller
- BatteryL 11.1V 2700mAh lipo
- Controlling board: Onetouch 4
- GPS controlling board: Free X GPS module group

Charger parameters:
- Input voltage range: 100-240V
- Current output: 1A
- Current input: 15-18V
- Battery compatible: 7.4/11.1V
- Battery type: lipo

Remote controller parameters:
- Remote control frequency: 2.4GHz jumping frequency
- Output power: <100mW
- Consumption current: <230mA
- Output pulse: 1000-2000mS
- Receiver sensitivity: >-100dBm
- Remote control distance(outdoor/ no obstacles): 1KM

Package includes:
- Free X frame x 1
- Remote controller x 1
- Charger x 1
- USB update firmware  x 1
- Compact disc x 1
- Manual x 1
- Battery x 1(Not included. If you need, the battery wil be sent via Swiden Post)
