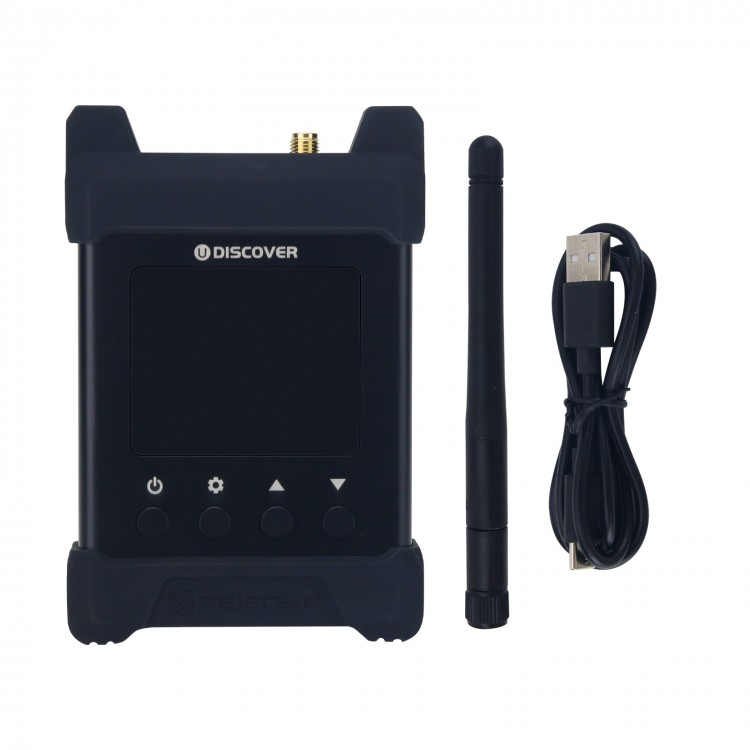

U DISCOVER Portable Spectrum Analyzer Handheld Spectrum Management Controller w/ 240~960MHz Range
Features:
Portable Handheld Spectrum Analyzer
* Frequency occupancy, frequency interference and planning frequency.
Real-time Scanning and Fast Control
* The frequency status is displayed in real-time as soon as the device is powered on, allowing for quick identification of interference frequencies.
Peak Hold and Fluctuation Detection
* It can detect the maximum interference value over a period, providing more stable frequency bands.
10-Hour Long Battery Life
* The built-in large-capacity lithium battery meets daily work demands.
Convenient Storage
* The foldable antenna saves more space.
Shockproof and Drop-Resistant
* Rubber covering for durability and anti-slip.
TFT Color Screen
* High-definition, clearly visible color display.
TYPE-C Port
* Supports power bank charging, plug and play.
Clear Display of On-Site Interference Frequencies, Creating a Stable Wireless Working Environment
* High-definition screen displays detailed frequency information
* Ultra-wide frequency range
* Frequency scanning: 240 MHz - 960 MHz
* On-site frequency visualization and control
* A helpful tool for wireless work
Application Scenarios
* Easily plan wireless frequency distribution and provide a stable wireless working environment for various occasions.
* Suitable for large events, conference centers, broadcasting production, and outdoor performances.
Technical Specifications:
* Input frequency detection range: 240~960 MHz
* Input frequency detection bandwidth: 1~720 MHz
* Input frequency step size: 1 MHz
* Spectrum dynamic range: 90 dB
* Amplitude range: -110 dBm to +10 dBm
* Display: TFT
* Input interface: SMA female connector
* Current consumption: 65 mA
* Built-in power supply: 3.7V/1000mA lithium battery
* Charging interface: TYPE-C standard USB 5V charging
* Operating temperature: 0°C to +45°C
* Dimensions: 72mm (W) x 108mm (H) x 23mm (D) (*excluding antenna length)
* Weight: 150g
Package Included:
* 1 x Spectrum Analyzer Main Unit
* 1 x Antenna
* 1 x Warranty Card
* 1 x User Manual
Packaging Details:
* Weight: 0.5kg
