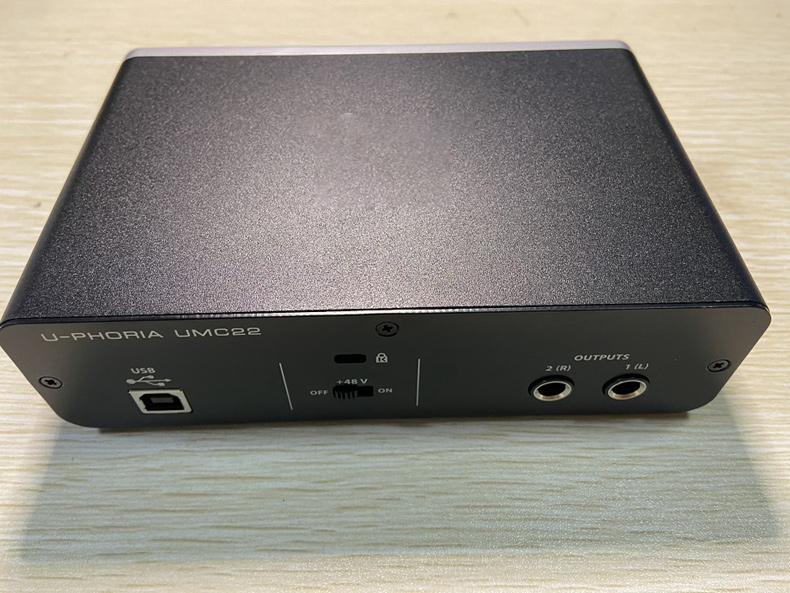

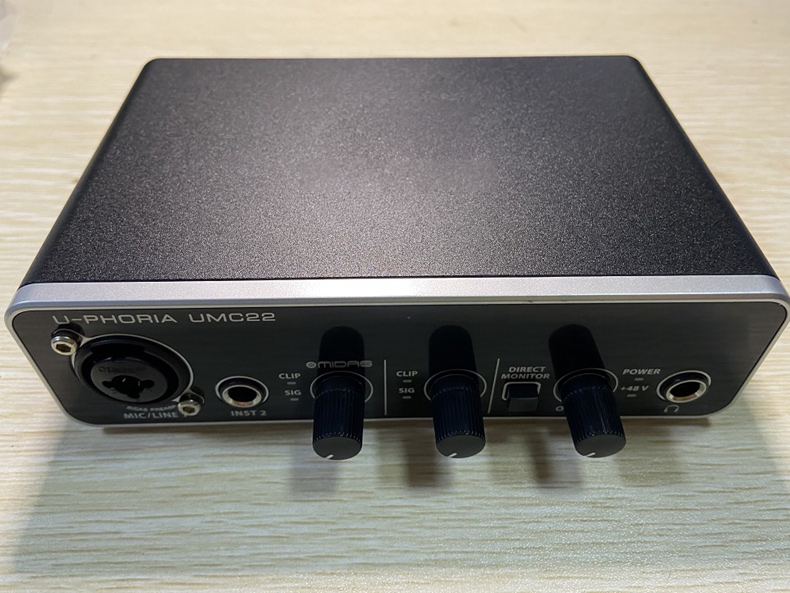

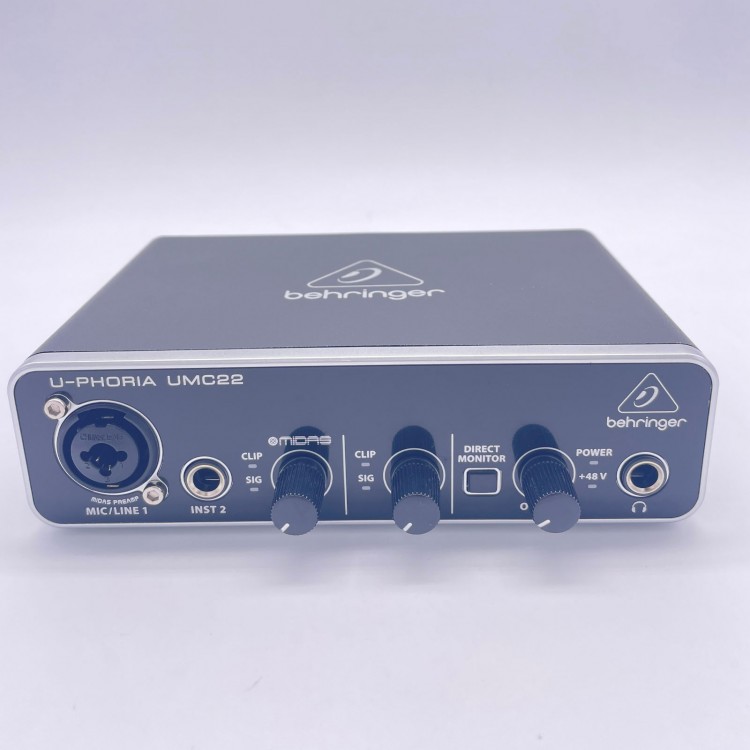

U-PHORIA UMC22 2x2 USB Audio Interface Original External Sound Card with Mic Preamp for Behringer
Description:
U-PHORIA UMC22 is an audiophile 2x2 USB Audio Interface with Mic Preamplifier for MIDAS.
World-class preamps are used for the UMC22, UMC204 and UMC202 interfaces-and thanks to the available +48 V phantom power, you can even use professional-grade studio condenser mics to create outstanding tracks.
You take your tracks seriously, and the U-PHORIA Series respects that, providing you with 48 kHz resolution converters.
All U-PHORIA models provide powerful phones output with Level control and Direct Monitor select, Status, Signal and Clip LEDs, and are powered via your computer's USB port so they're ready to go wherever you go. Plus we provide free audio recording, editing and podcasting software.
Features:

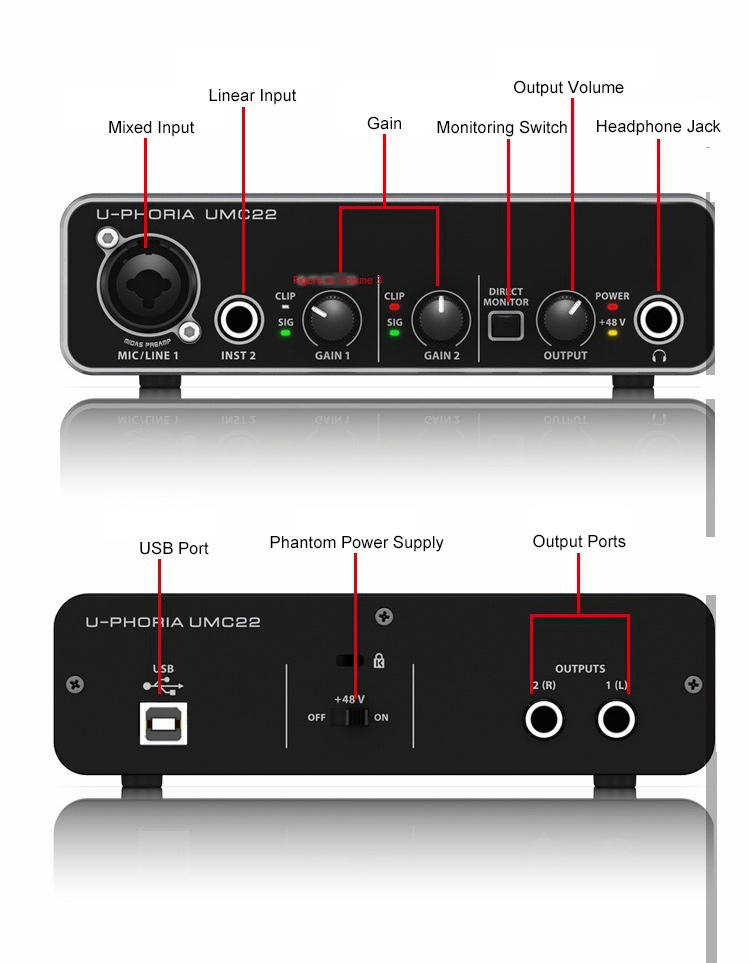

- 2x2 USB audio interface for recording microphones and instruments
- Audiophile 48 kHz resolution for professional audio quality
- Compatible with popular recording software for Avid Pro Tools*, Ableton Live*, Steinberg Cubase*, etc.
- Streams 2 inputs / 2 outputs with ultra-low latency to your computer, supporting for Mac OS X* and Windows XP* or higher
- State-of-the-art, Mic Preamplifier with +48 V phantom power
- Powerful Phones output with Level control and Direct Monitor select
- Status, Signal and Clip indications for perfect overview
- USB port for connection and power
- "Built-like-a-tank", impact-resistant metal chassis
UMC22 Specifications:
Input:
- Preamplifier: 1 for MIDAS

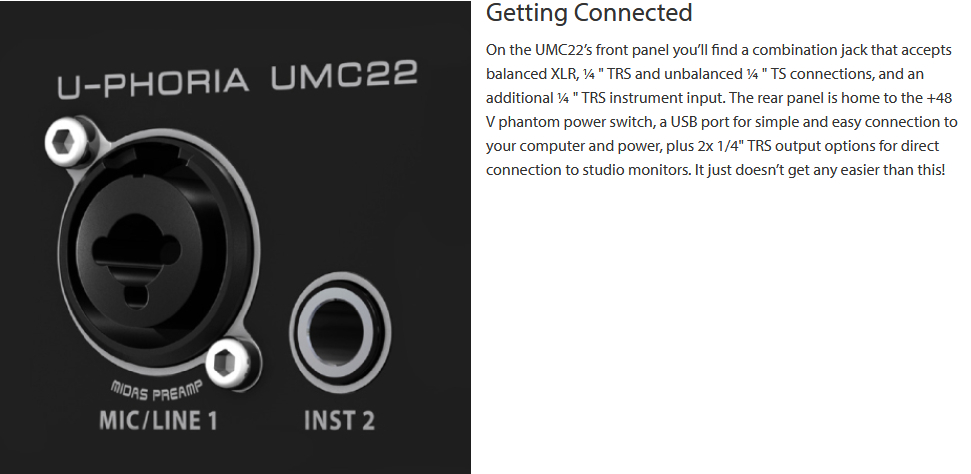

- Type: 1xXLR/YRS hybrid interface; Microphone line 1x4; 1" TRS instruments
- Input Level Attenuation: N/A
- Frequency response: 10Hz-30KHz (0/-0.5dB)
- Impedance: Microphone input: 3KΩ; Instrument input: 1MΩ
- Input level: microphone: +2dBu; Line: +22dBu; Instrument: +2dBu
- Phantom power supply
Output:
- Type: 1x1/4" stereo (headphones); 2x1/4" TRS line output
- Frequency response: 10Hz~30kHz (0/-0.5dB)
- Output level: 0dBu
System data:
- Dynamic range: 100dB, A-weighted
- Frequency response: 10Hz~43kHz (0/+0.3dB)
Insertion interface:
- Type: N/A
- Impedance: N/A
- Input level: N/A
MIDI input/output:
- Type: N/A
Monitoring:
- Direct monitoring
- Headphone DJ monitoring: N/A
Digital processing:
- Supported sample rate: 33/44.1/48KHz
Computer connection:
- Type: USB1.1 B type
Software Support:
- Operating System: for Mac OSX*, Windows XP* and higher*
- Driver: For Mac*; No driver is required. Support for CoreAudio
Power supply:
- Power consumption: 2.5W
- Power supply: USB port (powered by computer)
- Supply voltage: N/A
Size:
- Dimensions (HxWxD): 46.45 x 163 x 125mm/1.8 x 6.4 x 4.9"
- Weight: 0.5kg/1.1lbs
Package Included:
- 1 x Main Unit
- 1 x Logo Sticker
- 1 x USB Cable
- 1 x User Manual
