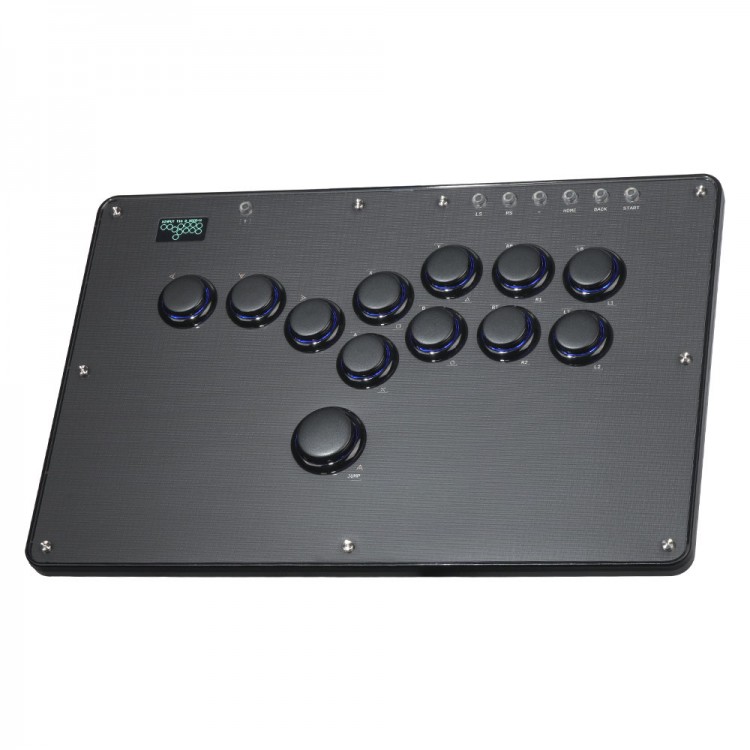

U12 12-Button Arcade Stick All Button Arcade Controller w/ Transparent Bottom Plate for Hitbox NS PC

U12 12-Button Arcade Stick All Button Arcade Controller w/ Transparent Bottom Plate for Hitbox NS PC

Attention:
Our store sells Haute42 game controllers, developed based on the GP2040 team's open-source solution for Raspberry Pi. This solution supports multiple systems and devices for PC, Android, NS, PS3, PS4, Steam and Arcade. However, some device manufacturers have implemented technical barriers (e.g., the game console for PS4 may experience disconnection after 8 minutes of use), requiring users to configure the device themselves and upload the key files provided by the device manufacturer. The GP2040 team and Haute42 team will not provide these files. If users insist on connecting such devices and cannot resolve the disconnection issue themselves, it is not recommended to purchase this product.

Features:
* Transparent Bottom Plate: The U series arcade controller has now been updated to the latest version. In this upgrade, the back cover features a brand-new transparent design.
* DIY Panel Papers: We will provide you with 2 white hand-drawn DIY papers so you can customize your unique arcade stick.
* Kailh Transparent Low Profile Switches: Cross button mechanical switches are ultra thin.
* Button Rim: The edge of the buttons takes you back to the arcade scene, with simple and comfortable operation.
* Keyboard Mode: You can customize the keys according to your own keyboard-using habits.
* Interfaces: There is a type-c port and an EXT hole for PS4 and PS5 converters. Attention: The EXT port is for extended functionality. Please do not connect your gaming console through this port.
* Startup Screen: You can freely customize the screen and set the duration for which the screen stays.
* Button Function Display: Shows information to help you better understand the product and get started quickly.
* Keycap Details: The cross keycaps feature a comfortable feel and a matte texture.

Characteristics of Raspberry Pi RP2040 Chip:
* Dual-core Cortex-M0+ for ARM running at 133MHz
* 1ms latency with a frame success rate above 95%
* Fully connected AHB crossbar switch
* Supports firmware updates

Kailh Low Profile Switches:
* Mechanical life: 50 million times
* Trigger travel: 1.2 ± 0.3 mm
* Total travel: 3.2 ± 0.25 mm
* Operating force: 43 ± 10 gf

Specifications:
* Product size: 296mm x 196mm x 11mm
* Button sizes: 25.8mm and 20.6mm
* Working voltage: 5V
* Connection method: USB Type-C
* Supported platforms: For PC, PS3, PS4, NS, Android and Steam

Compatibility:
B — Xinput mode (for Windows/Steam)
A — For NS mode
X — For PS3 / Dinput mode (for Raspberry Pi / Android)
Y — For PS4 mode (Compatible with games (for PS4) on the console for PS5)
RT — Keyboard mode

Input Mode:
* To change the input mode, hold the corresponding button while plugging in the controller.

Tips:
* This product defaults to Xinput mode, and the selected input mode is saved across power cycles.
* If a game is incompatible with the available input modes, you can use the Web Configurator to adjust settings for proper functionality.

Web Configurator:
* This product features a built-in web-based configuration application. To launch it, hold the START button while plugging the controller into a PC. Then, access http://192.168.7.1 in a web browser to begin configuration.

TURBO:
* To set a turbo key: Hold TURBO, then press the button you want to assign the turbo function to. This button will continuously send signals while pressed.
* To cancel the turbo function: Just repeat the previous steps.
* The turbo key setting will be cleared when the power is turned off.
* The following keys can be set as turbo keys: A, B, X, Y, LB, RB, LT and RT.

RGB LED Setting:
* BACK + START + X: Next Animation
* BACK + START + A: Previous Animation
* BACK + START + Y: Increase Brightness
* BACK + START + B: Decrease Brightness
* BACK + START + RB: Increase LED Parameter
* BACK + START + RT: Decrease LED Parameter
* BACK + START + LB: Increase Pressed Parameter
* BACK + START + LT: Decrease Pressed Parameter

Package Included:
* 1 x Arcade Fight Stick
* 2 x Control Panel Overlays

Packaging Details:
* Weight: 0.8kg
