U19_B Version USB Digital Interface Low Magnetic Leakage Transformer Support for Daphile/Windows/Linux/Android/IOS System

U19_B Version USB Digital Interface Low Magnetic Leakage Transformer Support for Daphile/Windows/Linux/Android/IOS System

Description:
- The power supply for the U19 machine is provided by a specially customized low magnetic leakage sealed transformer, consisting of multiple UV level low noise stabilized power supplies, highly stable OCXO constant temperature clock, and high volume peripheral circuits. It provides four digital audio signal outputs: AES/EBU, IIS, coaxial, and fiber optic.

- The high-quality and accurate clock signal output by the built-in OCXO constant temperature crystal oscillator in U19 is used to generate two audio clock signals, 22.5792MHz and 24.576MHz through the clock system to intervene and replace the two ordinary crystal oscillators on the original architecture of the Italian USB digital interface. At the same time, it provides synchronous clocks for IIS signal processing and SPDIF output; The constant temperature crystal oscillator has high accuracy, high stability, and effectively improves clock quality.

- Through resource integration and deep development of the Italian USB digital interface architecture, U19 has more complete functions, transparent and clean sound, clear details, crispy and delicate, with enhanced extension at both ends, open sound field and precise positioning, and its effect is significantly better than similar products on the market.

- U19 Digital Interface Usage Instruction: https://pan.baidu.com/s/1PpYrghLsOT6N4lQLqiZa2g?pwd=6666

Features:
- Support for Daphile
- Support for WIN/Linux/Android/iOS system
- Support for Moode Volume Ropieee piCorePlayer

Specification:
Input:
- USB_B interface
- External 10MHz reference clock signal input: the input impedance is 50R, and most sine and square waves below 5Vpp level can be used.

Output:
- Coaxial:
  PCM 44.1KHz ~ 384KHz/24Bit
  DSD DSD64/DSD128 (DOP)
- Optical:
  PCM 44.1KHz ~ 192KHz/24Bit
  DSD DSD64 (DOP)
- AES/EBU:
  PCM 44.1KHz ~ 384KHz/24Bit
  DSD DSD64/DSD128(DOP)

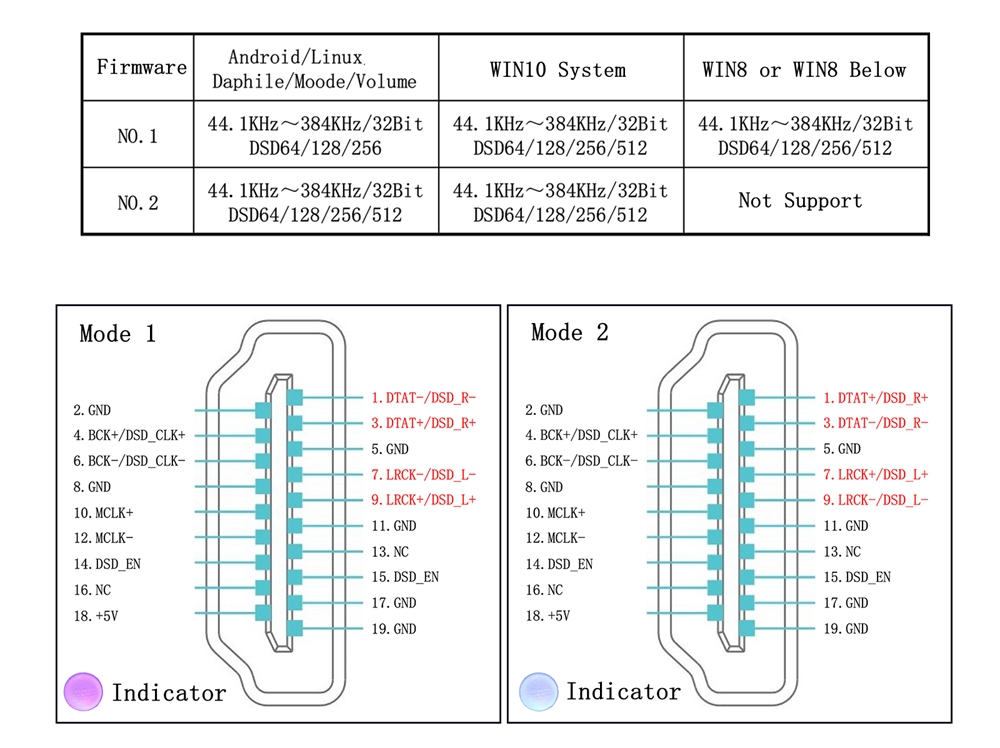

- IIS:
  PCM 44.1KHz ~ 384KHz/32Bit
  DSD DSD64/128/256/512 (Native DSD)

Power Supply:
- Input: AC220V 50Hz (If you need AC110V version, please contact our customer service before payment)

Chassis:
- Size: W x H x D = 160 x 45 x 140mm
- Weight: 1.35kg
- Packaging size: W x H x D = 250 x 125 x 250mm
- Packaging weight: about 2kg

Package Included:
- 1 x Host
- 1 x Power Cable (AU)
- 1 x USB Cable

Note:
- The U19_B version does not have an OCXO inside and requires an external 10MHz clock signal for the machine to function properly. It is suitable for users who already have a 10MHz clock.
- Due to the need for product performance design and the limitations of material purchase conditions, this product has been produced using non brand new components.
- The warranty service is limited to the product host and does not include accessories or software we installed.
- We are not responsible for faults caused by incorrect use, accidental damage caused by negligence, or modification or replacement of circuits or components.
- Machines with damaged warranty labels are not covered by the warranty.
