| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $62.53 | $61.26 | $59.34 | $56.79 | Contact US |

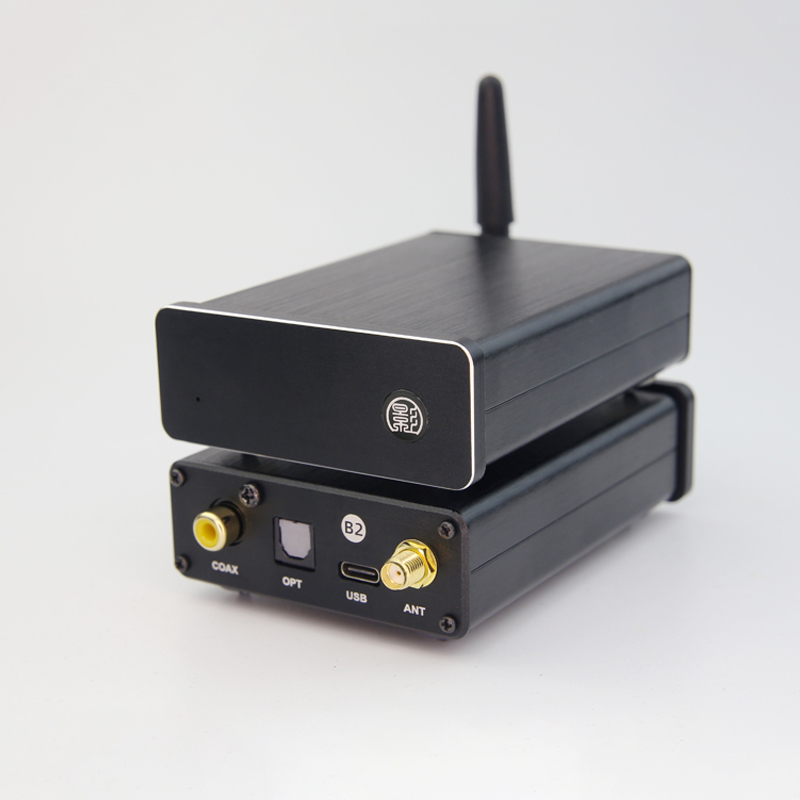

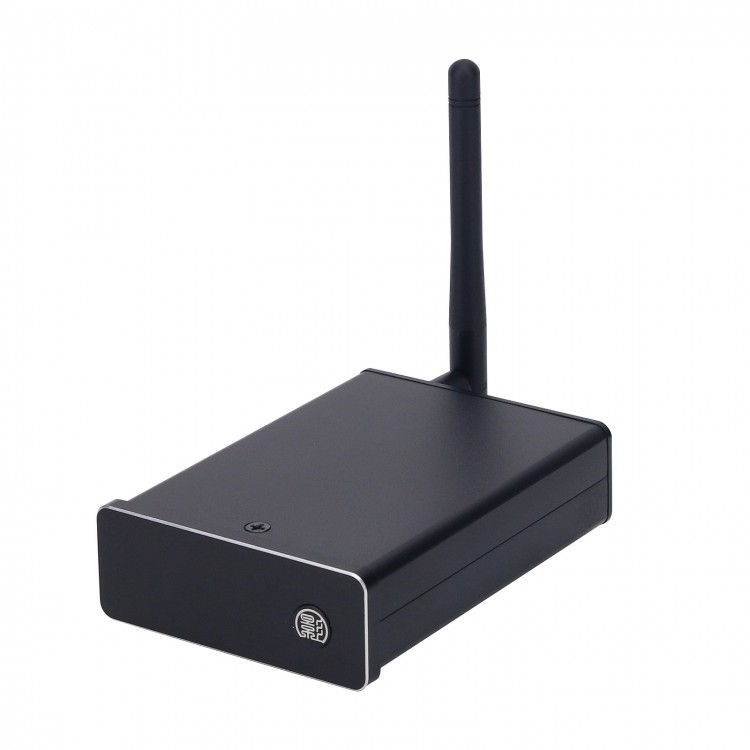

U1c Bluetooth 5.1 Receiver QCC5125 to Coaxial Optical Output USB Digital Interface for LDAC APTX HD

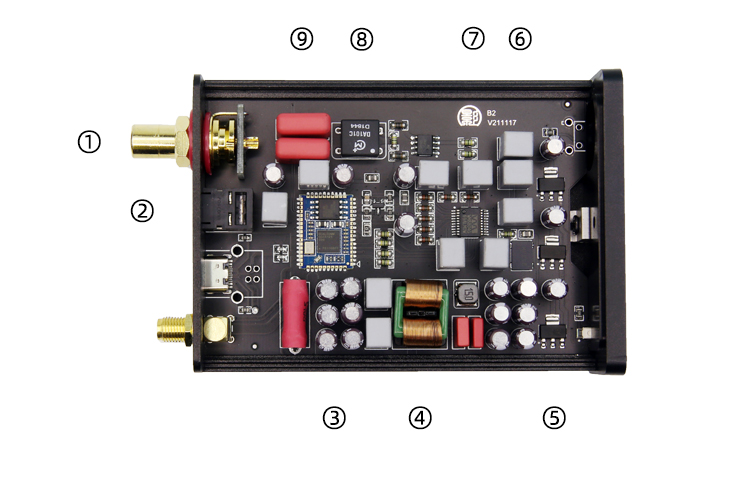

Features:
- Taiwan pure copper all-metal coaxial output socket
- Optical output socket for Foxconn
- In-Line capacitors for Nichicon
- Onboard two-stage LC and common mode EMI DC filter circuit to eliminate electromagnetic interference
- Three LDO independent linear power supply to avoid high frequency interference of DC power supply
- MKT capacitor for Vishay BC
- 1% wafer resistor for Vishay
- DA101c digital isolation transformer for Murata
- Infinitely coupled film capacitor for WIMA MKS4
Specifications:
- Bluetooth chip: QCC5125
- Input: Bluetooth 5.1/USB
- Bluetooth: support 96K for LDAC/USB
- Power supply: USB C (5v power supply / optional B port)
- Output: Coaxial/Optical (24Bit96kHz)
- Dimensions: 103 x 71 x 30mm/4.1 x 2.8 x 1.2"
- Turns on as soon as power is applied; automatic Bluetooth connection
- Compared with the previous generation of power supply, its HiFi-level power processing system makes the sound quality ratio purer, and improves the Bluetooth data processing capability
Package Included:
- 1 x Bluetooth Receiver

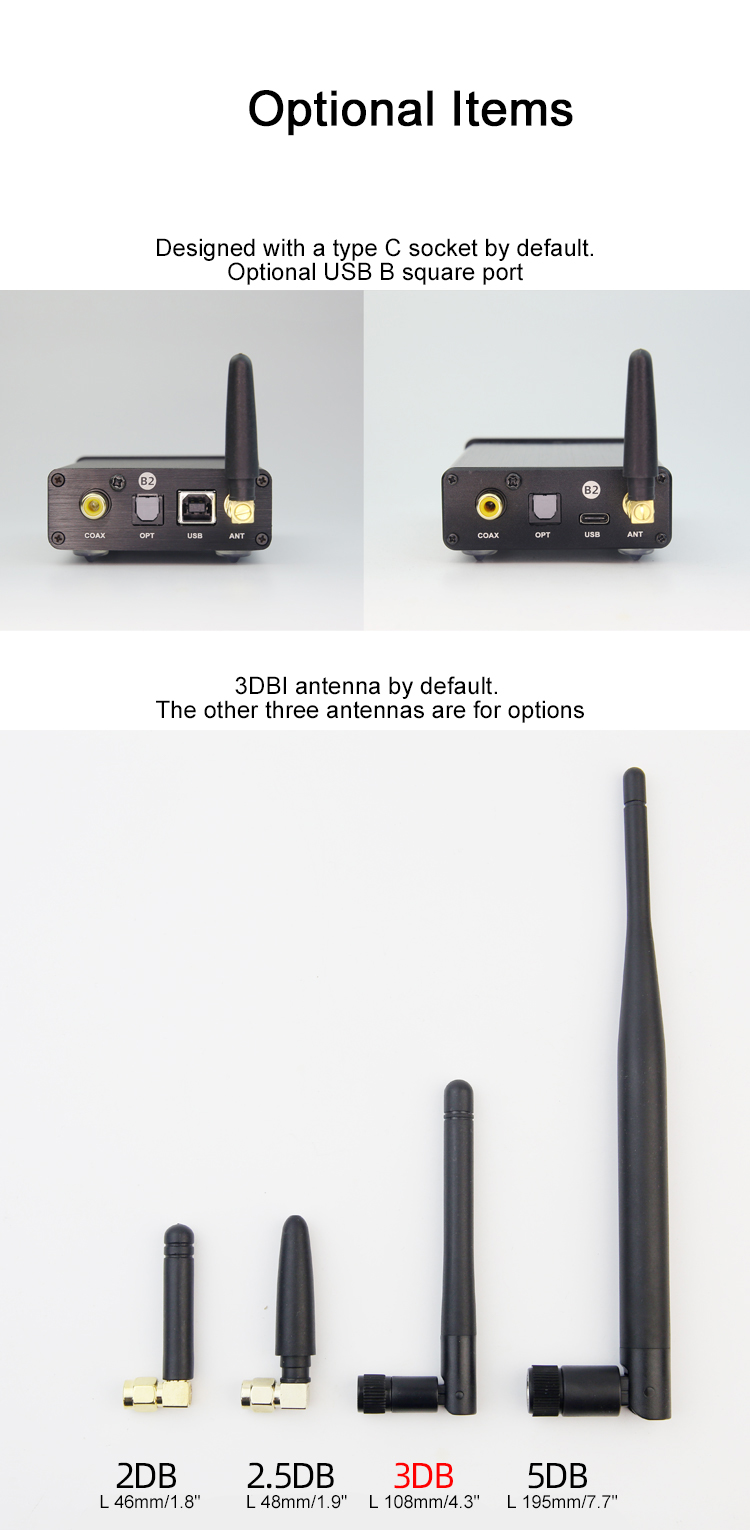

- 1 x Antenna
Note:
- Power supply is not included in the package.
